Remove/Install Roller Sun Blind On Panoramic Sunroof - AR77.21-P-0205SRA
MODEL 453.3
with CODE E22 (Panoramic sunroof)
| Remove/install | |||
| 1 | Remove headliner | AR68.30-P-4300SRA | |

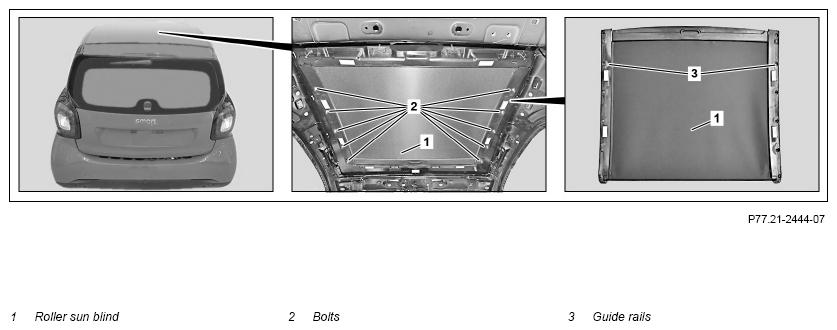

| 2 | Close roller sun blind (1) | The rear roller sun blind (1) must be closed (extended). Otherwise the roller sun blind (1) can be damaged during removal and must be replaced. |
|
| 3 | Unscrew bolts (2) from guide rails (3) | ||
| 4 | Grab roller sun blind (1) at guide rails (3) and remove from vehicle with aid of helper | When removing roller sun blind (1), ensure that it is not rolled up Otherwise the door module (1) can be damaged and must be replaced. |
|
| 5 | Install in the reverse order |
