Remove/install oil dipstick guide tube - AR18.40-P-3510EWX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272 in MODEL 212 Vehicles with center sump
ENGINES 273 in MODEL 212 Vehicles with center sump
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |

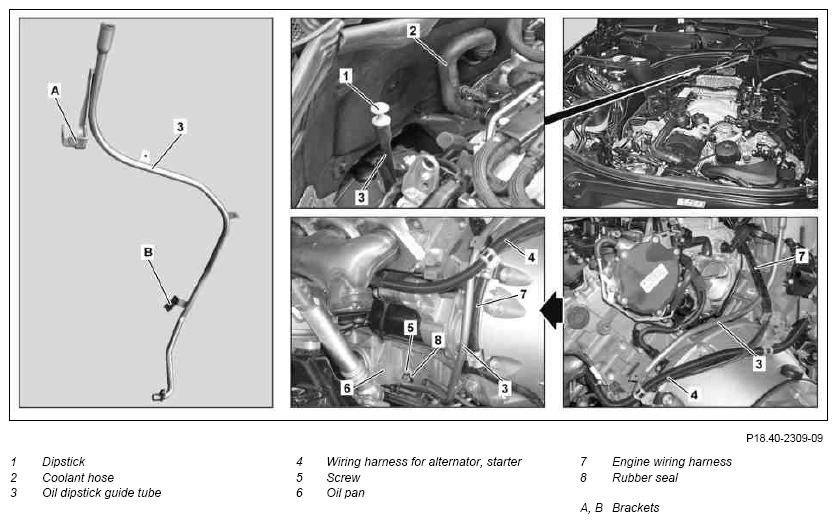

| 1 | Remove oil dipstick (1). | ||
| 2 | Remove air duct housing | AR09.20-P-0080EW | |
| 3 | Remove ignition coil for cylinder 3 | AR15.12-P-2003EW | |
| 4 | Drain coolant at radiator | AR20.00-P-1142EWS | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 5 | Drain engine oil | AP18.00-P-0101EW | |
| 6 | Remove left catalytic converter | AR49.10-P-7100EW | |
| 7 | Detach steering shaft from steering shaft | AR46.10-P-8000EW | |
| 8 | Remove coolant hose (2) | ||
| 9 | Unclip electrical connectors and electrical leads of left oxygen sensors from retaining clips and detach | AR01.10-P-2400-11EW | |
| 10 | Detach wiring harness (4) from right cylinder head cover | ||
| 11 | Unclip wiring harness (4) from holders on oil dipstick guide tube (3) | ||
| 12 | Detach wiring harness (4) from engine wiring harness (7) | ||
| 13 | Remove bolts on brackets (A, B) of oil dipstick guide tube (3) | *BA01.45-P-1006-01M | |
| 14 | Remove bolt (5) from oil pan (6) | *BA01.45-P-1006-01M | |
| 15 | Remove oil dipstick guide tube (3) from oil pan (6) | ||
| 16 | Route wiring harness (4) and engine wiring harness (7) over the oil dipstick guide tube (3) | ||
| 17 | Remove oil dipstick guide pipe (3) | ||
| 18 | Install in the reverse order | ||
| Checking | |||
| 19 | Check engine oil level about 5 minutes after switching off the warm engine, if necessary adjust to correct level | AP18.00-P-0101EW | |
| 20 | Inspecting cooling system for leaks | AR20.00-P-1010EW | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 21 | Carry out engine test run, checking the engine for proper operation and leaks |
OIL PAN
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA01.45-P-1006-01M | Mounting bolt for oil dipstick guide tube | Nm | 9 | 9 |
