Remove/install coolant thermostat - AR20.10-P-2460OGE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODELS 207, 212, 218
Shown on engine 642.850

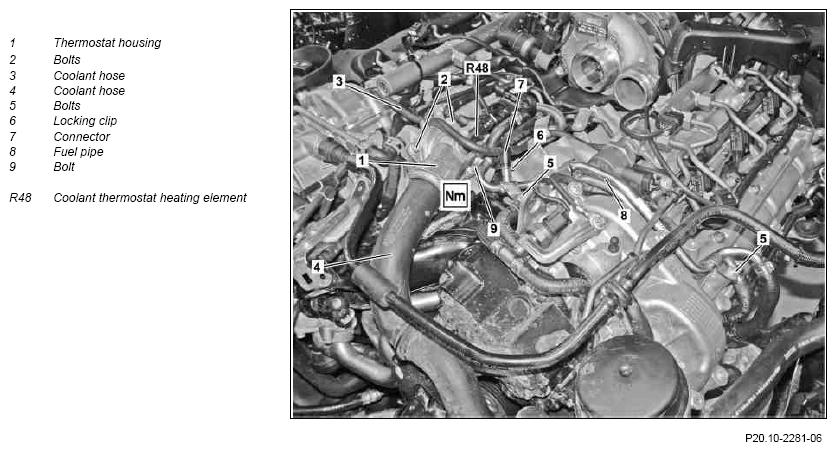

Shown on ENGINE 642.852

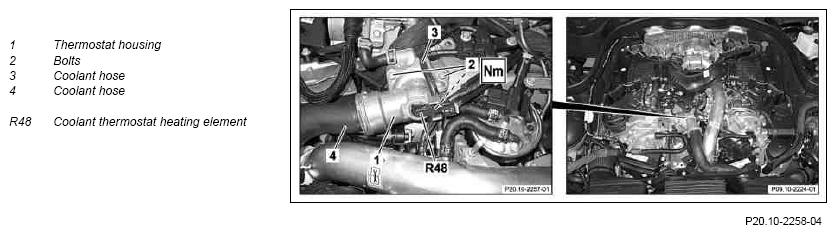

Turbocharger without coolant cooling

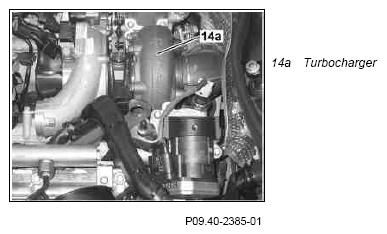

Turbocharger with coolant cooling
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 1 | Remove engine trim panel | ||
| 2 | Remove engine charge air duct on turbocharger (14b) | Engines with a turbocharger (14b) with coolant cooling | AR09.41-P-8622SXI |
| 3 | Drain coolant | Model 207 | AR20.00-P-1142CW |
| Model 212, 218 |
AR20.00-P-1142OGE | ||
| 4 | Remove coolant hose (3) out of the thermostat housing holder (1) | ||
| 5 | Disconnect electrical connector for coolant thermostat heating element (R48) | For vehicles with a heated coolant thermostat | |
| 6 | Disconnect coolant hose (4) at thermostat housing (1) | AR09.41-P-1311-01AL | |
| 7 | Remove securing clip (6) and take connector (7) for the fuel line (8) out of the bracket | Engines with a turbocharger (14b) with coolant cooling | |
| 8 | Remove bolts (5) | Engines with a turbocharger (14b) with coolant cooling | |
| 9 | Unscrew bolts (2, 9) | ||
| *BA20.10-P-1002-01S | |||
| 10 | Remove thermostat housing (1) with coolant thermostat | ||
| 11 | Install in the reverse order | ||
| Checking | |||
| 12 | Pour in coolant and bleed cooling system | AR20.00-P-1142-04A | |
| Figure | |||
| Figure | |||
| Coolant specifications | Specification 310.1 | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |
| Anticorrosion/antifreeze agents (Specification 325.0) | Specification 325.0 | Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |
| *BF20.00-P-1001-04A | |||
| 13 | Inspect cooling system for leaks | Model 207 | AR20.00-P-1010CW |
| Model 212, 218 | AR20.00-P-1010OMA |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA20.10-P-1002-01S | Bolt, coolant thermostat housing to charge air manifold | Nm | 9 |
MIXTURE RATIO FOR COOLANT
| Number | Designation | ENGINE ALL | ||
|---|---|---|---|---|
| BF20.00-P-1001-04A | Mixture ratio for coolant | Antifreeze/water | up to -37°C | 50/50 |
| up to -45°C | 55/45 | |||
| Specifications for service products | Specification | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | ||
| Specification | Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
