Remove, install engine charge air channel at turbocharger - AR09.41-P-8622SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221

Shown on engine 642.8

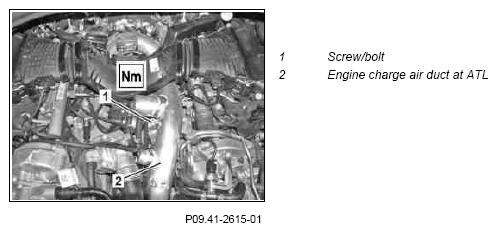

Fig 1: Engine Charge Air Channel Remove/Install Components - Shown On Engine 642.8 (1 Of 2)
G09974941Courtesy of MERCEDES-BENZ USA

Shown on engine 642.8

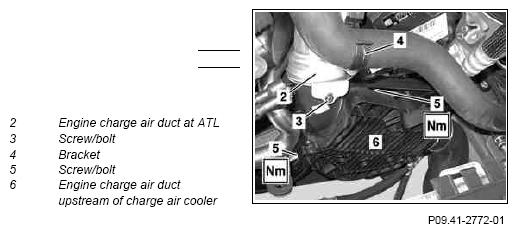

Fig 2: Engine Charge Air Channel Remove/Install Components - Shown On Engine 642.8 (2 Of 2)
G09974942Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
INSTALLATION NOTES Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
1 Remove engine cover ENGINE 642 in MODEL 207, 212, 218, 221
Remove/install engine cover ENGINE 642 in MODEL 221		 AR01.10-P-2405SXI
    INSTALLATION NOTES Ensure correct seating of the engine cover.
2 Remove engine air intake duct downstream of air filter ENGINE 642 in MODEL 207, 212, 218 Remove/install engine intake air duct downstream of air filter AR09.10-P-8130OGE
    Remove/install engine intake air duct downstream of air filter ENGINE 642 in MODEL 221 AR09.10-P-8130SXI
3 Remove cover for belt drive ENGINE 642 in MODEL 207, 212, 218
Remove/install belt drive components AR13.20-P-0001OGE
4 Remove screw/bolt (1) TORQUE SPECIFICATION Screw/bolt, engine charge air duct of turbocharger to charge air manifold *BA09.41-P-1001-01J
5 Remove screw/bolt (3) and retaining clamp
6 Remove bracket (4)
7 Loosen screw/bolts (5) TORQUE SPECIFICATION Engine charge air duct upstream of charge air cooler to oil filter housing *BA09.41-P-1003-01J
    TORQUE SPECIFICATION Engine charge air duct upstream of charge air cooler to bracket *BA09.41-P-1002-01J
8 Remove engine charge air duct on ATL (2) IMPORTANT First disconnect engine charge air duct on ATL (2) on engine charge air duct upstream of charge air cooler (6) and then remove to the front.
INSTALLATION IMPORTANT Install new sealing rings.
9 Install in the reverse order
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 642
BA09.41-P-1001-01J Screw/bolt, engine charge air duct of turbocharger to charge air manifold Nm 12
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 642
BA09.41-P-1002-01J Engine charge air duct upstream of charge air cooler to bracket Nm 6
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation ENGINE 642
BA09.41-P-1003-01J Engine charge air duct upstream of charge air cooler to oil filter housing Nm 12
