Remove/install front axle differential propeller shaft - AR41.10-P-0070EWX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218 with TRANSMISSION 722.97

MODEL 212.08/09/28/29, 218.39/99 with TRANSMISSION 722.96

Shown on engine 273

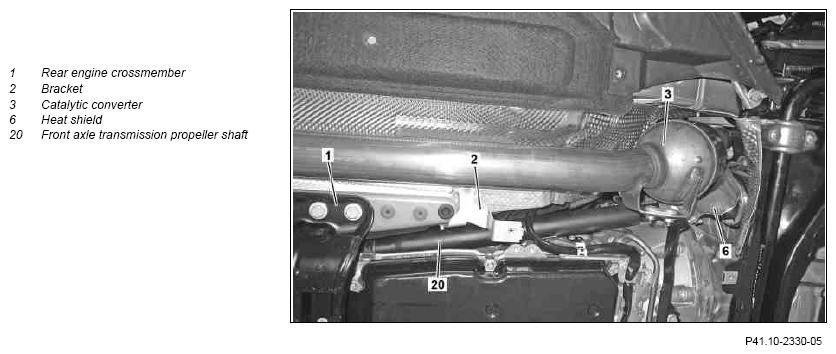

Fig 1: Front Axle Differential Propeller Shaft Remove/Install Components - Shown On Engine 273 (1 Of 3)
G09976495Courtesy of MERCEDES-BENZ USA

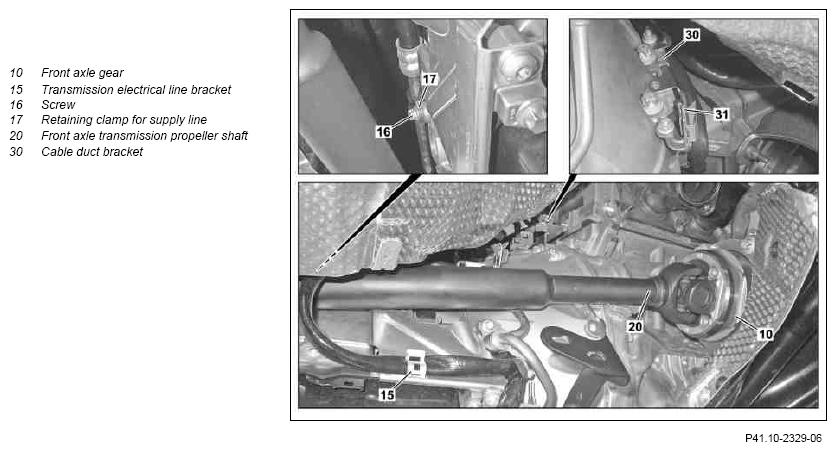

Fig 2: Front Axle Differential Propeller Shaft Remove/Install Components - Shown On Engine 273 (2 Of 3)
G09976496Courtesy of MERCEDES-BENZ USA

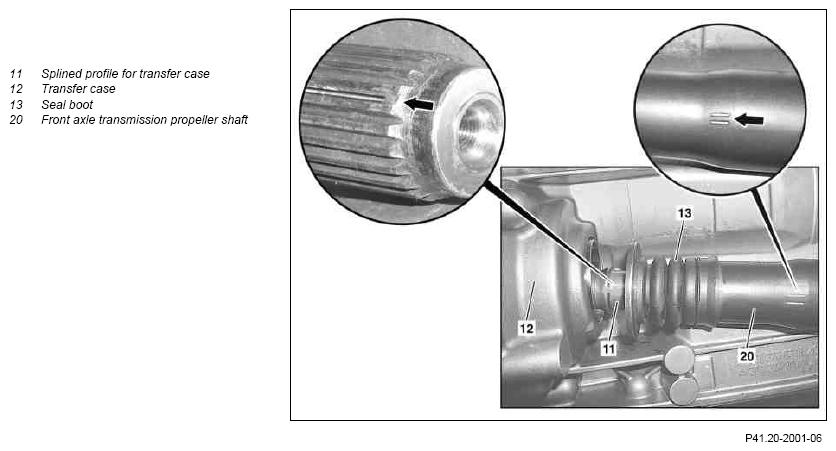

Fig 3: Front Axle Differential Propeller Shaft Remove/Install Components - Shown On Engine 273 (3 Of 3)
G09976497Courtesy of MERCEDES-BENZ USA

Shown on engine 642

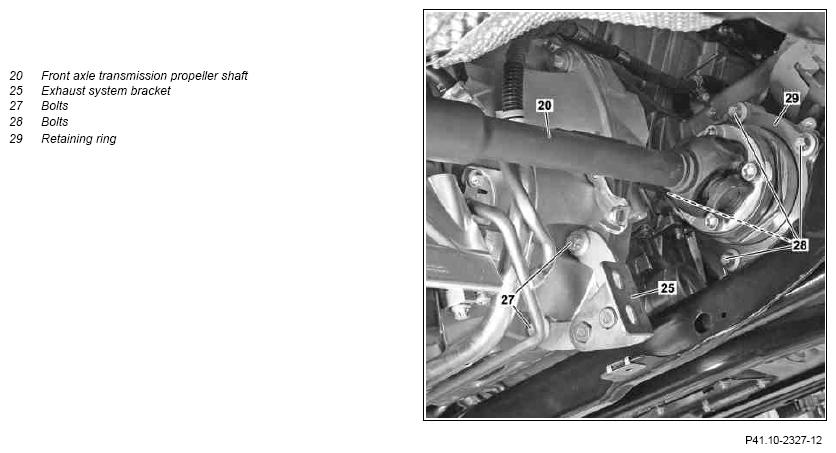

Fig 4: Front Axle Differential Propeller Shaft Remove/Install Components - Shown On Engine 642
G09976498Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
IMPORTANT Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Shift transmission to neutral
2 Secure vehicle on vehicle lift   AR00.60-P-0100EWS
3.1 Remove bottom section of soundproofing MODEL 212, 218
Vehicles with diesel engine AR94.30-P-5300EW
3.2 Remove engine compartment paneling MODEL 212, 218
Vehicles with gasoline engine AR61.20-P-1105EW
4.1 Remove diesel particulate filter MODEL 212, 218 with engine 642
AR14.40-P-1000OGE
4.2 Remove catalytic converter Model 212 with engine 651
AR49.10-P-5500OMD
4.3 Remove right CAT with front connecting strut Model 212 with engine 272, 273
AR49.10-P-7100EW
4.4 Remove right CAT together with center muffler MODEL 212, 218 with engine 276, 278
AR49.10-P-7100EL
5 Remove heat shield (6) TORQUE SPECIFICATION Collar bolt, heat shield to heat shield bracket *BA33.30-P-1009-03G
TORQUE SPECIFICATION Collar bolt, heat shield bracket to front axle transmission *BA33.30-P-1010-03G
6 Unscrew bolts (27) and remove exhaust system bracket (25) from transmission TORQUE SPECIFICATION Bolt, automatic transmission to engine *BA27.40-P-1008-01A
7 Remove bracket (2) of lower engine compartment paneling on frame floor assembly
8 Remove propeller shaft at transmission   AR41.10-P-0050EW
9 Remove rear engine crossmember (1) from frame floor assembly   AR22.10-P-1180CW
10 Unclip transmission electrical line from transmission electrical line bracket (15)
11 Lower transmission
12 Remove bolt (16) to retaining clamp for supply line (17) on transmission INSTALLATION IMPORTANT Replace screw/bolt.
TORQUE SPECIFICATION Bolt, transmission oil line to transmission housing *BA27.55-P-1002-01D
13 Mark position of front axle transmission propeller shaft (20) relative to flange of front axle transmission (10) IMPORTANT To be able to reproduce the plant installation position.
14 Detach front axle transmission propeller shaft (20) from front axle transmission (10) NOTES Do not counterhold front axle transmission drive shaft (20) on universal joint.
The needle roller bearings and the seals of the front axle transmission drive shaft (20) may be damaged if not observed.
IMPORTANT To undo the bolts of the front axle transmission propeller shaft (20) at the front axle transmission (10) the front wheels must be blocked.
INSTALLATION IMPORTANT Replace screw/bolts.
TORQUE SPECIFICATION Screw/bolt, propeller shaft to front axle transmission *BA33.30-P-1012-03G
15 Remove front axle transmission drive shaft (20) from flange
16 Unscrew bolts (28) and remove retaining collar (29) MODEL 212, 218 with TRANSMISSION 722.97
MODEL 212.09/29, 218.39/99 with ENGINE 278 with TRANSMISSION 722.96
TORQUE SPECIFICATION Collar bolt, retaining collar to front axle transmission *BA33.30-P-1004-03G
17 Remove differential pressure sensor (DPF) bracket (B28/8) Vehicles with diesel engine
18 Detach front axle transmission propeller shaft (20) along engine from transfer case splined profile (11) on transfer case (12) INSTALLATION IMPORTANT Line up the marking (arrow in right enlarged detail in 3rd picture) on the front axle transmission propeller shaft (20) and the closed groove (arrow in left enlarged detail in 3rd picture) on the splined profile (11).
19 Remove front axle transmission propeller shaft (20) downwards
INSPECT Check
20 Check seal boot (13) of front axle transmission propeller shaft (20) IMPORTANT If necessary, replace seal boot (13).
21 Check constant velocity joint and double cardan U-joint of front axle transmission propeller shaft (20) for signs of wear and damage IMPORTANT If necessary, replace front axle transmission propeller shaft (20).
22 Install in the reverse order
HOUSING

Number Designation TRANSMISSION 722.9
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10X40 Nm 38
M10X45 Nm 38
M10X90 Nm 38
M12 Nm -
TRANSMISSION OIL COOLING

Number Designation TRANSMISSION 722.9
BA27.55-P-1002-01D Bolt, transmission oil line to transmission housing Banjo bolt Stage 1 Nm 5
Stage 2 ∠° 90
Hexalobular bolt Nm 12
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 218
BA33.30-P-1004-03G Collar bolt, retaining collar to front axle transmission Nm 55 55
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 218
BA33.30-P-1009-03G Collar bolt, heat shield to heat shield bracket Nm 8 8
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 218
BA33.30-P-1010-03G Collar bolt, heat shield bracket to front axle transmission Nm 8 8
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 218
BA33.30-P-1012-03G Screw/bolt, propeller shaft to front axle transmission Stage 1 Nm 45 45
Stage 2 ∠° 95 95
