Retrofit Universal Media Interface - AZ82.85-P-0004EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0## (except 212.074/077) 1# up to 5/31/12, 212.2## (except 212.274/277) 1# up to 5/31/12 up to model year 2013 with CODE 510 (Audio 20 with CD changer) with CODE 523 (Audio 20 CD radio) without CODE 359 (TELE AID emergency call system)
| Remove | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Move front passenger seat toward rear | ||
| 2 | Remove glove box | ||
| AR68.10-P-1200EW | |||
| 3 | Remove radio (A2) | ||
| AR82.60-P-7502EW | |||
| 4 | Remove Audio/COMAND display (A408) | ||
| AR82.60-P-7722EW | |||
| Install | |||

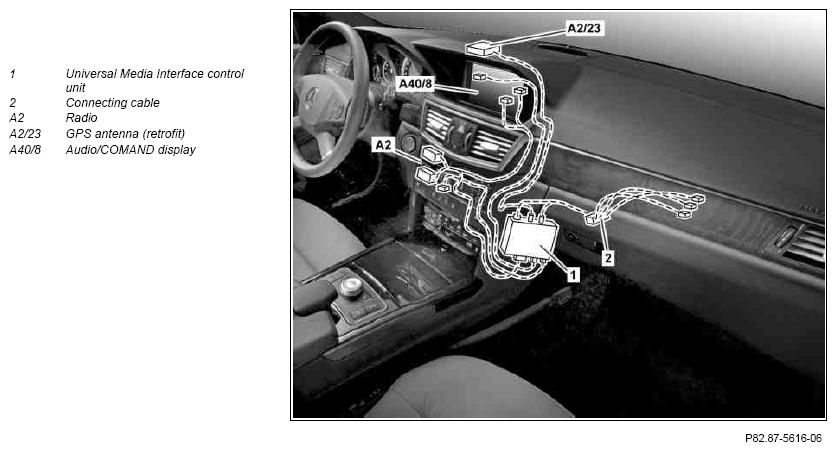

| 5 | Retrofit Universal Media Interface adapter wiring harness | AZ82.85-P-0004-02EW | |
| Fig 2 | |||
| 6 | Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness | AZ82.85-P-0004-03EW | |
| 7 | Retrofit GPS antenna (retrofit) (A2/23) | AZ82.61-P-0003-02EW | |
| 8 | Install radio (A2) | ||
| AR82.60-P-7502EW | |||
| 9 | Install Audio/COMAND display (A40/8) | ||
| AR82.60-P-7722EW | |||
| 10 | Retrofit connecting cable (2) | AZ82.85-P-0004-05EW | |
| 11.1 | Strap down the electrical connector for the media interface previously installed in the glove box to the vehicle wiring harness and wrap felt tape around it | On vehicles with code (518) Media Interface | |
| 11.2 | Strap down the electrical connector for the AUX connection previously installed in the glove box to the vehicle wiring harness and wrap felt tape around it | On vehicles without code (518) Media interface | |
| 12 | Retrofit Universal Media Interface control unit (1) | AZ82.85-P-0004-04EW | |
| 13 | Install glove box | ||
| AR68.10-P-1200EW | |||
| 14 | Connect Star Diagnosis | ||
| 15 | Perform variant coding with XENTRY using the software calibration number (SCN) | Ensure here that the third digit is the letter "o" for Oscar. On vehicles with code (518) Media Interface, delete the Media Interface special equipment from the vehicle data card and the vehicle data card online as it is no longer available. |
|
| 16 | Disconnect STAR DIAGNOSIS | ||
| 17 | Run function check on Universal Media Interface | ||
| 18 | Document retrofitted equipment via vehicle documentation (VeDoc) |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Universal Media Interface installation kit | 1 |
