Retrofit GPS antenna - AZ82.61-P-0003-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## /2## (except 212.074 /077 /274 /277) 1#

Wrap felt tape around Global Positioning System (GPS) antenna wiring harness (18) of GPS antenna (retrofit) (A2/23).
Bond adhesive tape (19) to top of GPS antenna (retrofit) (A2/23).
The top of the GPS antenna (retrofit) (A2/23) can be recognized by the lettering "TOP" or by the spacer (arrow). The area of the GPS antenna (retrofit) (A2/23) to which the tape is going to be affixed must be free of dust and grease.
Wrap felt tape around GPS antenna (retrofit) (A2/23).
Do not cover the adhesive tape (19) with felt tape.

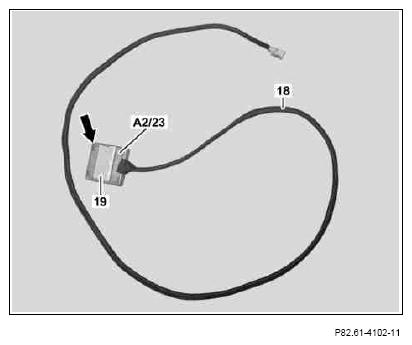

Fig 1: Bond Adhesive Tape, GPS Antenna And Antenna Wiring Harness
Courtesy of MERCEDES-BENZ USA
Remove protective foil from adhesive tape (19) of GPS antenna (retrofit) (A2/23) and bond GPS antenna (retrofit) (A2/23) onto bar (20) in installation opening of Audio/COMAND display as shown.
Also fasten GPS antenna (retrofit) (A2/23), as shown, using a cable tie (21).

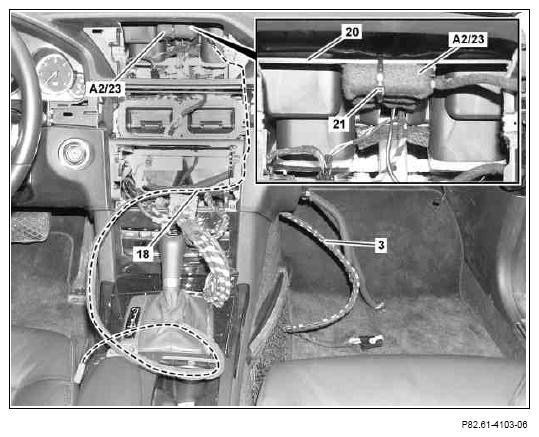

Fig 2: Fasten GPS Antenna Using A Cable Tie
Courtesy of MERCEDES-BENZ USA
Route GPS antenna wiring harness (18) through the cable duct of the Low Voltage Differential Signal (LVDS) display wiring harness into the radio slot.
Route GPS antenna wiring harness (18) further into front passenger footwell to corresponding adapter wiring harness.
