Remove/install desiccant cartridge - AR83.30-P-6521EX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.074/075/076/077/092/274/275/276/277/292

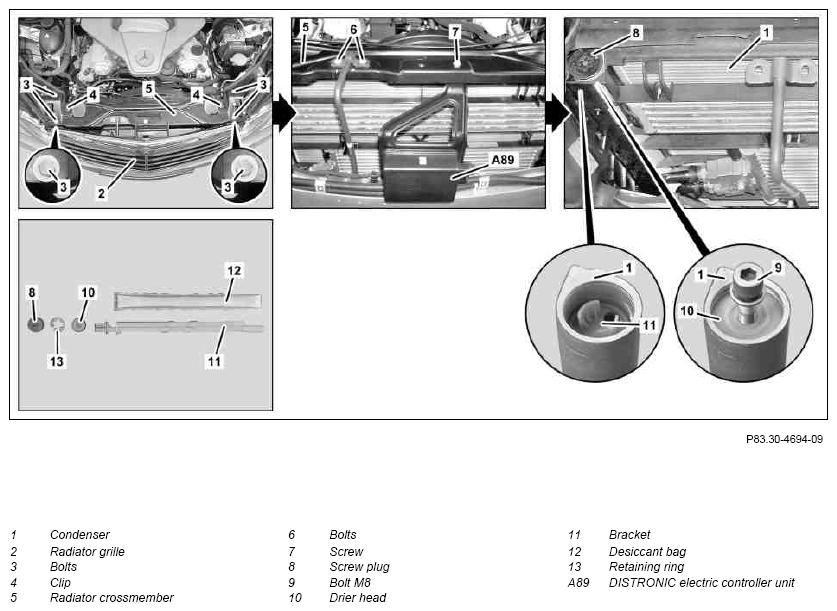

| Remove | |||
| 1 | Drain air conditioning system, then disconnect filler connections | AR83.30-P-1760CW | |
| 2 | Remove radiator grille (2) | MODEL 212.074/075/076/077/092/274/275/276/277/292 up to model year 2014 | |
| AR88.40-P-4001EW | |||
| 3 | Remove front bumper | MODEL 212.074/075/076/077/092/274/275/276/277/292 as of model year 2014 | |
| AR88.20-P-2000EWM | |||
| 4 | Unclip clips (4) | ||
| 5 | Remove screws/bolts (3) | ||
| 6 | Unscrew bolt (7) | MODEL 212.074/075/076/077/092/274/275/276/277/292 with CODE 233 (DISTRONIC PLUS) | |
| 7 | Remove screws/bolts (6) and remove radiator crossmember (5) | ||
| 8 | Remove screw plug (8) from condenser (1) | ||
| 9 | Screw screw/bolt M8 (9) into drier head (10) | ||
| 10 | Press down drier head (10) to ensure freedom of movement of retaining ring (13) | ||
| 11 | Remove retaining ring (13) | ||
| 12 | Remove drier head (10) from condenser (1) by pulling up at screw/bolt M8 (9) | ||
| 13 | Remove bracket (11) by alternately turning left and right and at the same time pulling up out of condenser (1) | ||
| Install | |||
| 14 | Check packaging of new desiccant bag (12) for damage, then unpack desiccant bag (12) | If packaging is not airtight, dispose of desiccant bag (12). Install the desiccant bag (12) no more than 20 minutes after opening the packaging. Otherwise the desiccant bag (12) is unusable. |
|
| 15 | Insert new desiccant bag (12) into new holder (11) | ||
| 16 | Insert bracket (11) with desiccant bag (12) in condenser (1) | Carefully insert desiccant bag (12) by hand and without using tools. Otherwise the desiccant bag (12) may be damaged. Please avoid jamming the holder (11), otherwise the holder (11) may break. Align desiccant bag (12) with vehicle center. |
|
| 17 | Screw screw/bolt M8 (9) into new drier head (10) and insert drier head (10) into condenser (1) up to end stop | ||
| 18 | Install retaining ring (13) | ||
| 19 | Pull drier head (10) up to stop at retaining ring (13) | ||
| 20 | Remove screw/bolt M8 (9) from drier head (10) | ||
| 21 | Tighten screw plug (8) | Do not tighten screw plug (8) too tight. Otherwise the seal of the screw plug (8) will be damaged and the air conditioning will become leaky. |
|
| 22 | Insert and position radiator crossmember (5) | ||
| 23 | Tighten screw/bolts (3) | ||
| 24 | Tighten bolts (6) | *BA62.30-P-1003-02G | |
| 25 | Tighten screw (7) | MODEL 212.074/075/076/077/092/274/275/276/277/292 with CODE 233 (DISTRONIC PLUS) | |
| 26 | Clip in clips (4) | ||
| 27 | Install front bumper | MODEL 212.074/075/076/077/092/274/275/276/277/292 as of model year 2014 | AR88.20-P-2000EWM |
| 28 | Install radiator grille (2) | MODEL 212.074/075/076/077/092/274/275/276/277/292 up to model year 2014 | AR88.40-P-4001EW |
| 29 | Evacuate the air conditioning system, refill it, and then check the system to make sure that it functions correctly and does not leak. | AR83.30-P-1760CW | |
| 30 | Calibrate DISTRONIC system | MODEL 212.074/075/076/077/092/274/275/276/277/292 with CODE 233 (DISTRONIC PLUS) | AR30.30-P-1010EW |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA62.30-P-1003-02G | Bolt for attaching striker | Nm | 10 |
