Fuse and relay box, as-built configuration - GF54.15-P-0800FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

Model 212.0

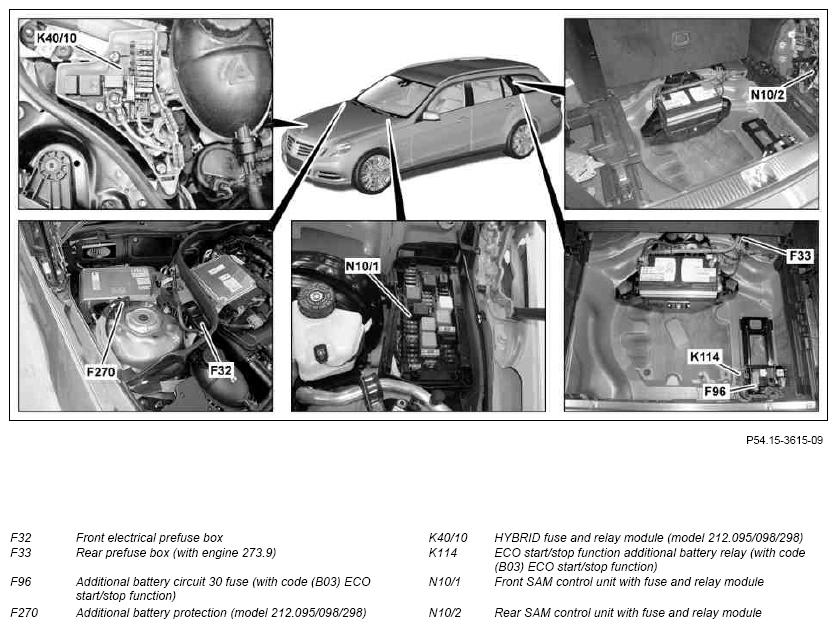

Fig 1: Fuse And Relay Box Components - Model 212.0

Courtesy of MERCEDES-BENZ USA

The additional battery terminal 30 fuse protects the connection between the front SAM control unit and the ECO start/stop function additional battery relay with 7.5 A.

The additional battery protection is in the high-voltage line at the suspension strut tower. The fuse rating is 175 A. The additional battery protection protects the connection between the front prefuse box and the electronic relay.

Model 212.2

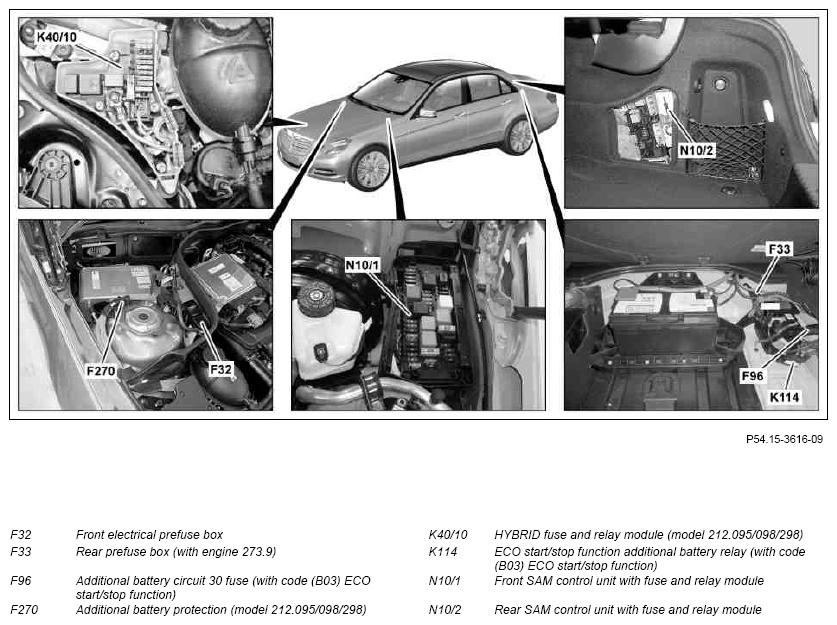

Fig 2: Fuse And Relay Box Components - Model 212.2

Courtesy of MERCEDES-BENZ USA

The additional battery terminal 30 fuse secures the connection between the SAM control unit, front, and the ECO start/stop function additional battery relay with 7.5A.

Shown on model 212.0

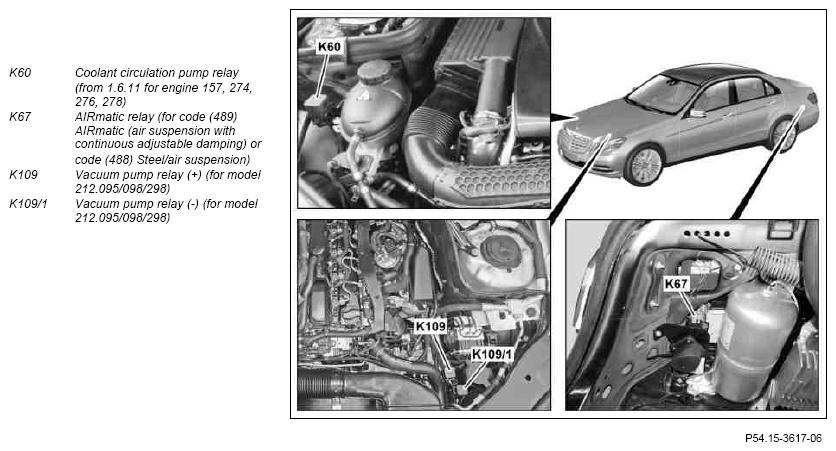

Fig 3: Fuse And Relay Box Components - Model 212.0

Courtesy of MERCEDES-BENZ USA

For engine 157, shown is model 212.0

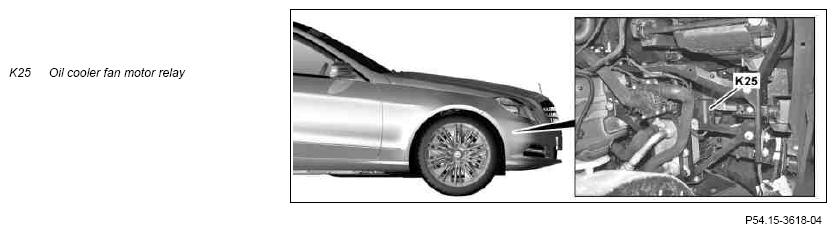

Fig 4: Fuse And Relay Box Components - Model 157

Courtesy of MERCEDES-BENZ USA

Fuse assignment of front prefuse box	F32	GF54.15-P-1256-07FL
Fuse assignment of rear prefuse box	MODEL 212.0/2 with ENGINE 273.9 F33	GF54.15-P-1256-08FL
Assignment of HYBRID fuse and relay module	MODEL 212.095/098/298 K40/10	GF54.15-P-1256-34FL
Fuse assignment of fuse and relay box in left engine compartment	N10/1	GF54.15-P-1256-03FL
Relay assignment of fuse and relay box in left side of engine compartment	N10/1	GF54.15-P-1257-03FL
Fuse assignment of fuse and relay box in trunk	N10/2	GF54.15-P-1256-06FL
Relay assignment of fuse and relay box in trunk	N10/2	GF54.15-P-1257-04FL
