Fuse Assignment Of Front Pre-Fuse Box - GF54.15-P-1256-07FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

Model 212 (except model 212.095/098/298) without code (B03) ECO start/stop function:

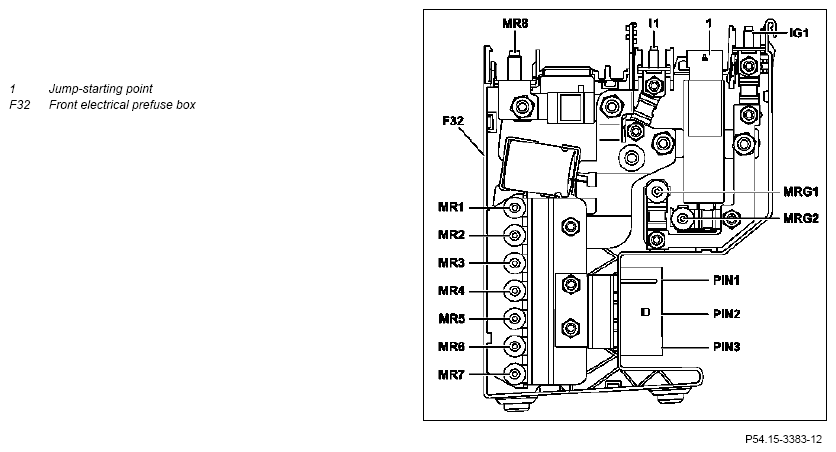

Fig 1: Front Pre-Fuse Box - Model 212 (Except Model 212.095/098/298) Without Code (B03)
G10050265Courtesy of MERCEDES-BENZ USA
Fuse Identification Connector - designation Circuit Line ID (line fused) Fused function Rating in amperes (A)
f150 MR8 30 -
  • Pyrofuse 150 (F32f150) triggered by Supplemental Restraint System control unit (N2/10)
 -
f151 MR1 30 12.0 RD
  • Electrical power steering control unit (N68)
 50
f152 MR2 30 -
  • Reserve
 -
f153 MR3 30 -
  • Reserve
 -
f154 MR4 30 10.0 RD Valid for 650-watt fan motor:
  • Internal combustion engine and air conditioning fan motor with integrated control (M4/7)
 100
      12.0 RD Valid for 800-watt fan motor:
  • Internal combustion engine and air conditioning fan motor with integrated control (M4/7)

f155 MR5 30 16.0 RD Valid for diesel engine:
  • PTC heater booster (R22/3)
 150
f156 MR6 30 6.0 RD
  • Front SAM control module with fuse and relay module (N10/1)
 60
f157 MR7 30 16.0 RD
  • Front SAM control module with fuse and relay module (N10/1)
 150
f158 PIN1 30 4.0 RD Valid for left-hand drive vehicles:
  • Blower regulator (A32n1)
 50
      4.0 RDGN Valid for right-hand drive vehicles and model 212 (except 212.074/077/092/095/098/274/277/292/298) without code (233) DISTRONIC PLUS:
  • Electronic Stability Program control unit (N30/4)

      4.0 RDGN Valid for right-hand drive vehicles and model 212 (except 212.095/098/298) with code (233) DISTRONIC PLUS, model 212.074/077/092/274/277/292:
  • Premium Electronic Stability Program control unit (N30/7)

f159 PIN2 30 2.5 RDYE Valid for right-hand drive vehicles and model 212 (except 212.074/077/092/095/098/274/277/292/298) without code (233) DISTRONIC PLUS:
  • Electronic Stability Program control unit (N30/4)
 50
      4.0 RDYE Valid for right-hand drive vehicles and model 212 (except 212.095/098/298) with code (233) DISTRONIC PLUS, model 212.074/077/092/274/277/292:
  • Premium Electronic Stability Program control unit (N30/7)

f160 PIN3 30 6.0 RD Valid for code (489) AIRmatic (air suspension with continuous adjustment damping) or with code (488) Steel/air suspension
  • AIRmatic relay (K67)
 60
f161 MRG1 30g -
  • Reserve
 -
f162 MRG2 30g 10.0 RDWH
  • Front SAM control module with fuse and relay module (N10/1)
 100
f163 IG1 30g 16.0 RD
  • Rear SAM control unit with fuse and relay module (N10/2)
 150
f164 I1 30 16.0 RD
  • Rear SAM control unit with fuse and relay module (N10/2)
 100

With code (B03) ECO start/stop function:

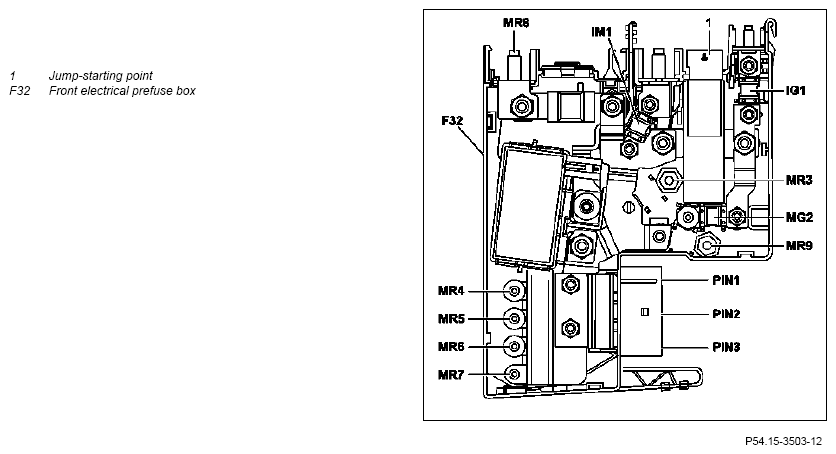

Fig 2: Front Pre-Fuse Box - Model 212 With Code (B03)
G10050266Courtesy of MERCEDES-BENZ USA
Fuse Identification Connector - designation Circuit Line ID (line fused) Fused function Rating in amperes (A)
f150 MR8 30 -
  • Alternator (G2)
  • Starter (M1)
 350
f151 MR1 30 12.0 RD
  • Internal combustion engine and air conditioning fan motor with integrated control (M4/7)
 100
f152 MR2 30 16.0 RD Valid for diesel engine:
  • PTC heater booster (R22/3)
 150
f153 MR3 30 -
  • Reserve
 -
f154 MR4 30 12.0 RD
  • Front SAM control module with fuse and relay module (N10/1)
 150
f155 MR5 30 -
  • Reserve
 -
f156 MR6 30 12.0 RD
  • Front SAM control module with fuse and relay module (N10/1)
 100
f157 MR7 30 12.0 RD
  • Electrical power steering control unit (N68)
 80
f158 PIN1 30 16.0 RD
  • Rear SAM control unit with fuse and relay module (N10/2)
 150
f159 PIN2 30 16.0 RD
  • Rear SAM control unit with fuse and relay module (N10/2)
 200
f160 PIN3 30 4.0 RD Valid for left-hand drive vehicles:
  • Blower regulator (A32n1)
 50
      4.0 RD Valid for right-hand drive vehicles and model 212 (except 212.074/077/092/095/098/274/277/292/298) without code (233) DISTRONIC PLUS:
  • Electronic Stability Program control unit (N30/4)

      4.0 RD Valid for right-hand drive vehicles and model 212 (except 212.095/098/298) with code (233) DISTRONIC PLUS, model 212.074/077/092/274/277/292:
  • Premium Electronic Stability Program control unit (N30/7)

f161 MRG1 30 4.0 RD Valid for left-hand drive vehicles with code (965) Electrical preinstallation for rental vehicle:
  • Special-purpose vehicle multifunction control unit (N26/9)
 50
      4.0 RD Valid for right-hand drive vehicles and model 212 (except 212.074/077/092/095/098/274/277/292/298) without code (233) DISTRONIC PLUS:
  • Electronic Stability Program control unit (N30/4)

      4.0 RD Valid for right-hand drive vehicles and model 212 (except 212.095/098/298) with code (233) DISTRONIC PLUS, model 212.074/077/092/274/277/292:
  • Premium Electronic Stability Program control unit (N30/7)

f162 MRG2 30 6.0 RD Valid for code (489) AIRmatic (air suspension with continuous adjustment damping) or with code (488) Steel/air suspension
  • AIRmatic relay (K67)
 60
f163 IG1 30 -
  • Reserve
 -
f164 I1 30 -
  • Reserve
 -

Model 212.095/098/298:

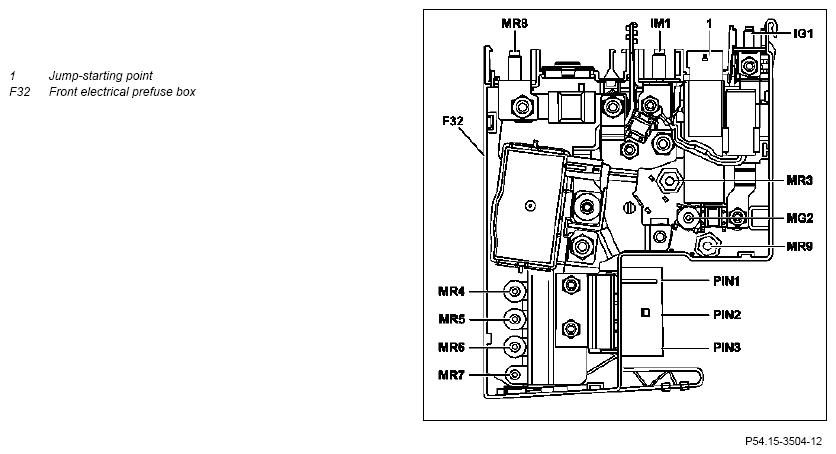

Fig 3: Front Pre-Fuse Box - Model 212.095/098/298
G10050267Courtesy of MERCEDES-BENZ USA
Fuse Identification Connector - designation Circuit Line ID (line fused) Fused function Rating in amperes (A)
f150 MR8 30 -
  • Pyrofuse 150 (F32f150) triggered by Supplemental Restraint System control unit (N2/10)
 -
f151 MR1 30 12.0 RD
  • Internal combustion engine and air conditioning fan motor with integrated control (M4/7)
 100
f152 MR2 30 16.0 RD Valid for diesel engine:
  • PTC heater booster (R22/3)
 150
f153 MR3 30 -
  • Reserve
 -
f154 MR4 30 12.0 RD
  • Front SAM control module with fuse and relay module (N10/1)
 150
f155 MR5 30 -
  • Reserve
 -
f156 MR6 30 12.0 RD
  • Front SAM control module with fuse and relay module (N10/1)
 100
f157 MR7 30 12.0 RD
  • Electrical power steering control unit (N68)
 80
f158 PIN1 30 16.0 RD
  • Rear SAM control unit with fuse and relay module (N10/2)
 150
f159 PIN2 30 -
  • Reserve
 -
f160 PIN3 30 4.0 RD Valid for left-hand drive vehicles:
  • Blower regulator (A32n1)
 50
      4.0 RD Valid for right-hand drive vehicles:
  • Regenerative braking system control unit (N30/6)

f161 MRG1 30g 4.0 RD Valid for left-hand drive vehicles with code (965) Electrical preinstallation for rental vehicle:
  • Special-purpose vehicle multifunction control unit (N26/9)
 50
f162 MRG2 30g 6.0 RD Valid for code (489) AIRmatic (air suspension with continuous adjustment damping) or with code (488) Steel/air suspension
  • AIRmatic relay (K67)
 60
      6.0 RD Valid for right-hand drive vehicles:
  • Regenerative braking system control unit (N30/6)

f163 IG1 30g -
  • Reserve
 -
f164 I1 30 -
  • Reserve
 -
