Assignment of HYBRID fuse and relay module - GF54.15-P-1256-34FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.095/098/298

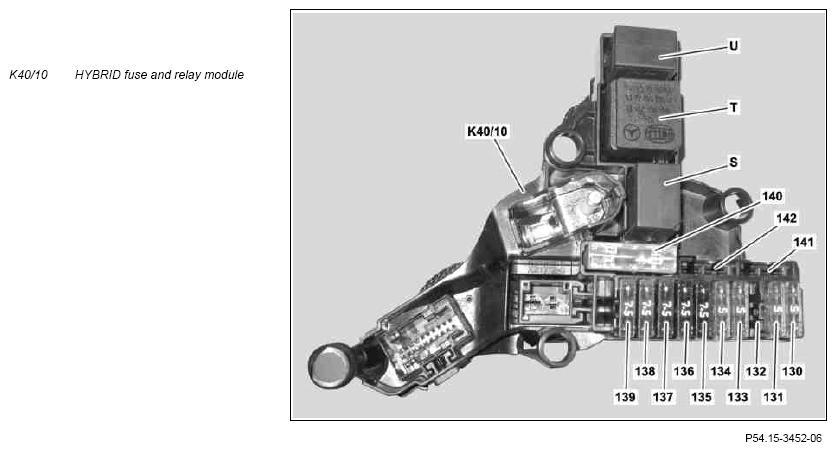

Fig 1: Hybrid Fuse And Relay Module - Model 212.095/098/298

Courtesy of MERCEDES-BENZ USA

Fuse Identification	Circuit	Line ID (line fused)	Fused function	Rating in amperes (A)
f130	87F	0.5 YERD	Regenerative braking system control unit (N30/6)	5
f131	87F	0.5 YE	Battery management system control unit (N82/2)	5
f132	87F	-	Reserve	-
f133	87F	0.5 GNRD	Power electronics control unit (N129/1)	5
f134	30	0.5 RDYE	Vacuum pump relay (-) (K109/1)	5
f135	30	0.75 RD	Battery management system control unit (N82/2)	7.5
f136	30	0.75 RDWH	Pyrotechnical separator (K88)	7.5
f137	87M	0.75 PKGN	Power electronics circulation pump 1 (M13/8)	7.5
f138	87M	0.75 RDBK	Power electronics circulation pump 2 (M13/9)	7.5
f139	87M	0.75 PKRD	Valid with engine 651: Transmission cooling coolant circulation pump (M13/7)	7.5
f140	30	4.0 RD	Vacuum pump relay (+) (K109)	40
f141	30	-	Reserve	-
f142	30	-	Reserve	-

Relay Slot Identification	Designation
S	Transmission cooling coolant circulation pump relay (K40/10kS)
T	HYBRID control unit power supply relay (K40/10kT)
U	HYBRID power electronics coolant circulation pump relay (K40/10kU)
