Relay assignment of fuse and relay box in trunk - GF54.15-P-1257-04FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

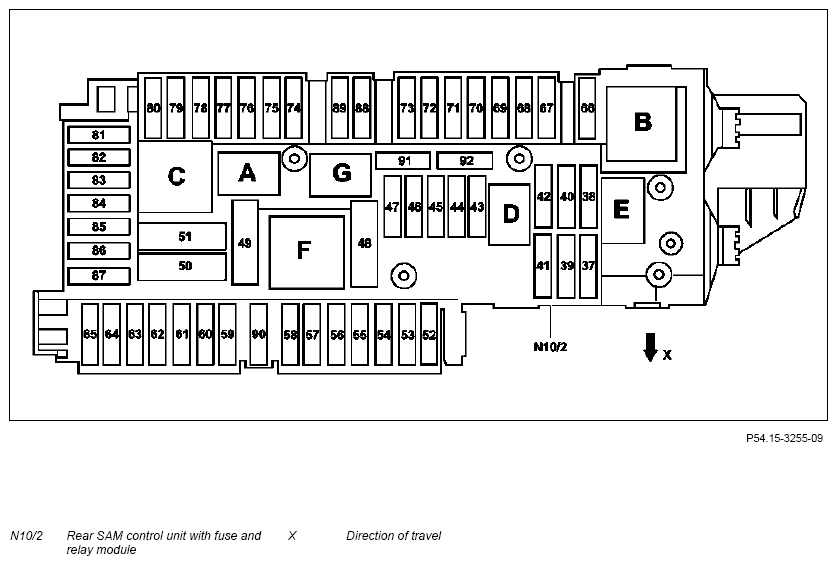

Fig 1: Relay Assignment Of Fuse And Relay Box In Trunk - Model 212

Courtesy of MERCEDES-BENZ USA

Relay Slot Identification	Designation
A	Circuit 15 relay (N10/2kA)
B	Circuit 15R relay (1) (N10/2kB)
C	Rear window heater relay (N10/2kC)
D	Valid for diesel engine: Fuel pump relay (N10/2kD)
E	Valid for model 212.2: Liftgate windshield wiper relay (N10/2kE)
F	Valid without code (275) Electrically adjustable front seats memory package: Seat adjustment relay (N10/2kF)
G	Circuit 15R relay (2) (N10/2kG)
