Relay assignment of fuse and relay box in left side of engine compartment - GF54.15-P-1257-03FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

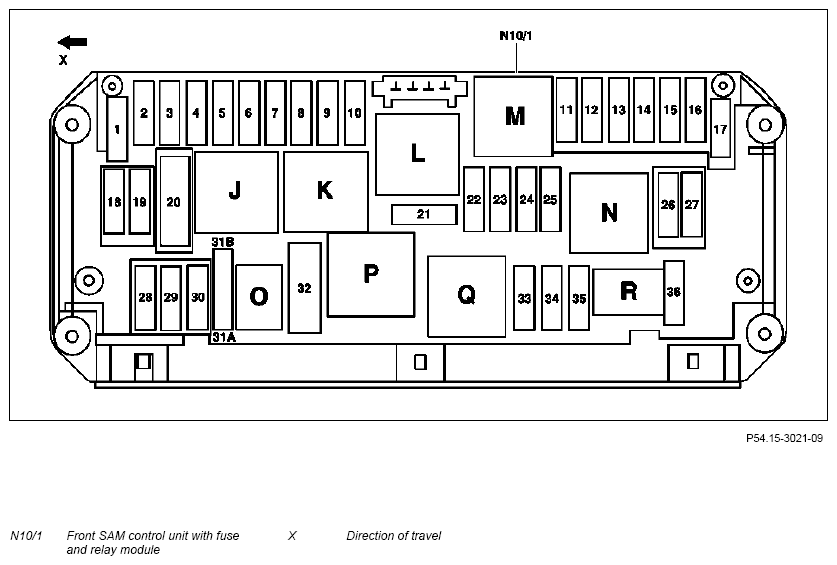

Fig 1: Fuse And Relay Box In Left Side Of Engine Compartment Relay Assignment - Model 212

Courtesy of MERCEDES-BENZ USA

Relay Slot Identification	Designation
J	Circuit 15 relay (N10/1kJ)
K	Circuit 15R relay (N10/1kK)
L	Wiper park position heater relay (N10/1kL)
M	Starter circuit 50 relay (N10/1kM)
N	Engine circuit 87 relay (N10/1kN)
O	Horn relay (N10/1kO)
P	Valid for engine 272: Secondary air injection relay (N10/1kP)
Q	Transmission oil auxiliary pump relay (N10/1kQ)
R	Chassis circuit 87 relay (N10/1kR)
