Remove/install exhaust gas recirculation positioner - AR14.20-P-1020CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218 with CODE 927 (Emission control system with Euro 6 technology)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Drain coolant at radiator | ENGINE 642 in MODEL 207 with CODE 927 (Emission control system with Euro 6 technology) | AR20.00-P-1142CW |
| ENGINE 642 in MODEL 212, 218 with CODE 927 (Emission control system with Euro 6 technology) | AR20.00-P-1142OGE | ||
| 2 | Remove exhaust pressure sensor (B60) | AR07.04-P-0007TK | |

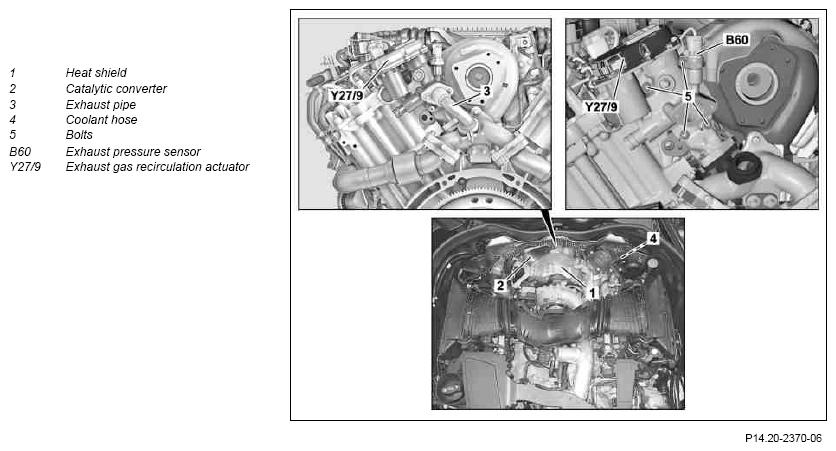

| 3 | Remove turbocharger heat shield (1) | ||
| 4 | Disconnect electrical connection on exhaust gas recirculation actuator (Y27/9) | ||
| 5 | Remove catalytic converter (2) | AR49.10-P-5500OGE | |
| 6 | Remove exhaust pipe (3) | *BA14.20-P-1013-01G | |
| *BA14.20-P-1015-01G | |||
| 7 | Detach coolant hose (4) for exhaust gas recirculation actuator (Y27/9) from bulkhead | AR09.41-P-1311-01AL | |
| 8 | Remove screw/bolts (5) | ||
| *BA14.20-P-1002-01G | |||
| 9 | Remove exhaust gas recirculation actuator (Y27/9) | ||
| 10 | Install in the reverse order | ||
| 11 | Reset lambda values with diagnostic system | When replacing the exhaust gas recirculation actuator (Y27/9) | |
| AD00.00-P-2000-04A | |||
| 12 | Pour in coolant | ENGINE 642 in MODEL 207 with CODE 927 (Emission control system with Euro 6 technology) | AR20.00-P-1142CW |
| ENGINE 642 in MODEL 212, 218 with CODE 927 (Emission control system with Euro 6 technology) | AR20.00-P-1142OGE | ||
| Check | |||
| 13 | Check engine cooling system for leaktightness | ENGINE 642 in MODEL 207 with CODE 927 (Emission control system with Euro 6 technology) | AR20.00-P-1010CW |
| Model 212, 218 with code 927 (Exhaust treatment EURO 6 Technology) | AR20.00-P-1010OMA | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Perform an engine test run and check exhaust gas recirculation actuator (Y27/9) for leaktightness and function |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 642.82/83/85/86/87/886/9 | |
|---|---|---|---|
| BA14.20-P-1002-01G | Bolt, exhaust gas recirculation positioner to charge air distribution line | Nm | 12 |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 642.82/83/85/86/87/886/9 | |
|---|---|---|---|
| BA14.20-P-1013-01G | Clamp, exhaust gas recirculation pipe to exhaust collector pipe | Nm | 9 |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 642.82/83/85/86/87/886/9 | |
|---|---|---|---|
| BA14.20-P-1015-01G | Exhaust gas recirculation pipe to exhaust gas recirculation positioner | Nm | 12 |
