Remove/install exhaust back pressure sensor - AR07.04-P-0007TK

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 211, 212, 218

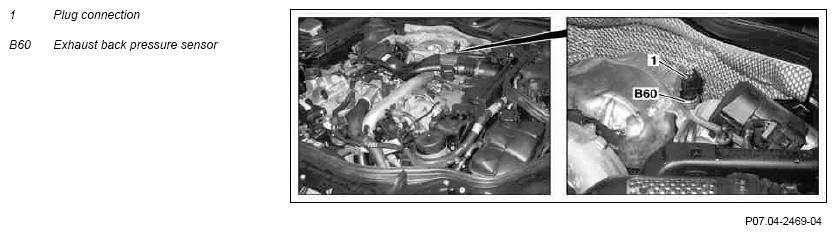

Fig 1: Exhaust Back Pressure Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood and raise to vertical position	Model 218
		Model 207, 212	AR88.40-P-1000EW
		Model 211	AR88.40-P-1000T
2	Remove engine trim panel	Ensure correct seating of the engine cover.
3	Disconnect connector (1) on exhaust back pressure sensor (B60)
4	Remove exhaust back pressure sensor (B60)		*BA07.04-P-1005-01G
5	Install in the reverse order
6	Read out and erase fault memory using STAR DIAGNOSIS	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work.	AD00.00-P-2000-04A

SENSORS

Number	Designation		ENGINE 642 without particle filter	ENGINE 642 with particle filter
BA07.04-P-1005-01G	Exhaust back pressure sensor on exhaust gas recirculation pipe	Nm	25	25
