Install new radial sealing ring at drive pinion gear (with differential installed) - AR35.31-P-0530CWC

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 212 with CODE 700 (Technology Local Content China)

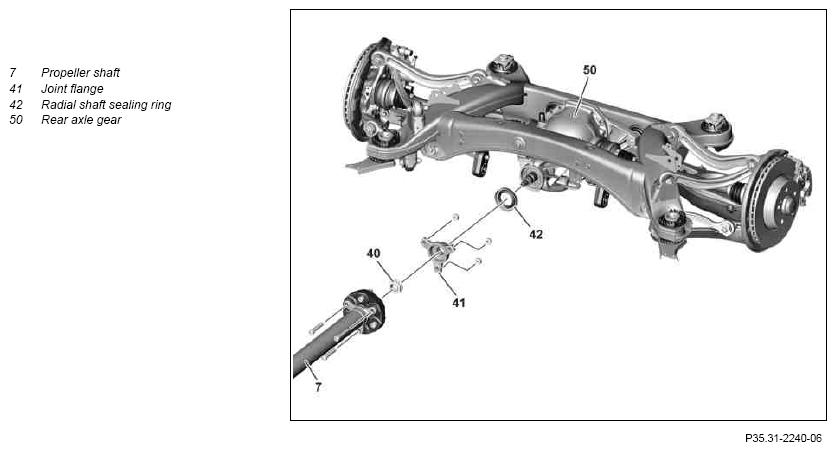

Fig 1: Installing Drive Pinion Gear Radial Sealing Ring
G09976354Courtesy of MERCEDES-BENZ USA
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVING Remove
1 Remove exhaust system from flange connection back MODEL 204 with ENGINE 271, 272
with CODE 700 (Technology Local Content China)
MODEL 212 with ENGINE 271, 274, 276
with CODE 700 (Technology Local Content China)
MODEL 204 with ENGINE 271, 272
with CODE 700 (Technology Local Content China)		 AR49.10-P-7100CW
MODEL 212 with ENGINE 274
with CODE 700 (Technology Local Content China)		 AR49.10-P-7100MR
MODEL 212 with ENGINE 276
with CODE 700 (Technology Local Content China)		 AR49.10-P-7100EL
2 Detach propeller shaft (7) from joint flange (41) MODEL 204
with CODE 700 (Technology Local Content China)		 AR41.10-P-0050CW
MODEL 212
with CODE 700 (Technology Local Content China)		 AR41.10-P-0050EW
3 Measure friction torque on drive pinion and note   AR35.31-P-0530-04CWC
SPECIAL TOOL Socket wrench bit Figure
SPECIAL TOOL Adapter Figure
SPECIAL TOOL Torque meter Figure
4 Detach joint flange (41).   AR35.31-P-0550-06CWC
SPECIAL TOOL Socket wrench bit Figure
SPECIAL TOOL Adapter Figure
SPECIAL TOOL Pin wrench Fig 5
SPECIAL TOOL Puller Fig 3
5 Pry radial shaft sealing ring (42) using suitable tool out of rear axle differential (50) NOTES
Do not damage seat surface of radial shaft sealing ring (42).
Leaks can otherwise occur.
INSTALLING Install
6 Clean seat of radial shaft sealing ring (42) in rear axle differential (50) using clean, lint-free rag and assembly cleaner NOTES
The seat of the radial shaft sealing ring (42) in the rear axle differential (50) must be free of oil and dirt.
Leaks can otherwise occur.
NOTES
Assembly cleaner must not enter the rear axle differential (50).
Otherwise, the rear axle differential (50) may be damaged.
Assembly cleaner *BR00.45-Z-1028-04A
7 Check seat of radial shaft sealing ring (42) in rear axle differential (50) for damage If damage is present:
↓
Repair or replace rear axle differential (50).
MODEL 212
with CODE 700 (Technology Local Content China)		 AR35.31-P-0520EW
MODEL 204
with CODE 700 (Technology Local Content China)		 AR35.31-P-0520CW
8 Apply universal hypoid gear oil to sealing lip of new radial shaft sealing ring (42)
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7)   Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
9 Press new radial shaft sealing ring (42) using drift into rear axle differential (50) SPECIAL TOOL Drift Fig 4
10 Adjusting friction torque of drive pinion bearing   AR35.31-P-0550-17CWC
NOTES
All the operation steps and instructions listed in the linked description must always be conducted!
Otherwise, the rear axle differential (50) may suffer noise development and damage.
TORQUE SPECIFICATION
MODEL 204 with TRANSMISSION 711, 716, 722
with CODE 700 (Technology Local Content China)
MODEL 212 with TRANSMISSION 711, 716, 722
with CODE 700 (Technology Local Content China)		 *BA35.31-P-1009-01E
SPECIAL TOOL Socket wrench bit Figure
SPECIAL TOOL Adapter Figure
SPECIAL TOOL Pin wrench Fig 5
SPECIAL TOOL Torque meter Figure
11 Mount drive shaft (7) onto joint flange (41) MODEL 212
with CODE 700 (Technology Local Content China)		 AR41.10-P-0050EW
MODEL 204
with CODE 700 (Technology Local Content China)		 AR41.10-P-0050CW
12 Install exhaust system from flange connection onwards MODEL 204 with ENGINE 271, 272
with CODE 700 (Technology Local Content China)
MODEL 212 with ENGINE 271, 274, 276
with CODE 700 (Technology Local Content China)
MODEL 212 with ENGINE 276
with CODE 700 (Technology Local Content China)		 AR49.10-P-7100EL
MODEL 212 with ENGINE 274
with CODE 700 (Technology Local Content China)		 AR49.10-P-7100MR
MODEL 204 with ENGINE 271, 272
with CODE 700 (Technology Local Content China)		 AR49.10-P-7100CW
INSPECT Check
13 Check oil level in rear axle differential (50) and correct, if necessary MODEL 204 (except 204.377), 212
with CODE 700 (Technology Local Content China)		 AR35.31-P-0520-03CWC
FLUID SPECIFICATION
MODEL 204 (except 204.077/277/377)
with CODE 700 (Technology Local Content China)
MODEL 212 (except
212.074/075/076/077/092/274/275/276/277/292)
with CODE 700 (Technology Local Content China)		 *BF35.31-P-1002-01T
Loctite 272 sealing adhesive *BR00.45-Z-1102-02A
TORQUE SPECIFICATION
MODEL 204, 212.1
with CODE 700 (Technology Local Content China)		 *BA35.31-P-1002-02H
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
14 Check rear axle differential (50) for leaktightness
REAR AXLE DIFFERENTIAL HOUSING

Number Designation MODEL 204, 212.1 with CODE 700
BA35.31-P-1002-02H Oil filler screw of rear axle differential Nm 60
REAR AXLE DIFFERENTIAL GEAR SET

Number Designation Model 204 Model 212
BA35.31-P-1009-01E Collar nut, joint flange to drive pinion Rear axle differential Ø200 M22 Nm 100 100
REAR AXLE GEAR

Number Designation MODEL 204 (except 204.077/277/377) with CODE 700 (Technology Local Content China) MODEL 212 (except 212.074/075/076/077/092/274/275/276/277/292) with CODE 700 (Technology Local Content China)
BF35.31-P-1002-01T Filling capacity Rear axle differential 200 C, Ø 200 mm Liter 1, 0 1, 0
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
Fig 2: Identifying Torque Meter (001 589 49 21 00)
G09976355Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Puller (124 589 04 33 00)
G09976356Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Drift (204 589 00 15 00)
G09976357Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Pin Wrench (129 589 01 07 00)
G09976358Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Socket Wrench Bit (204 589 01 09 00)
G09976359Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Adapter (100 589 02 59 00)
G09976360Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
BR00.45-Z-1102-02A Loctite 272 sealing adhesive Henkel Loctite
