Remove/install piston - AR03.10-P-7021SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221, 222

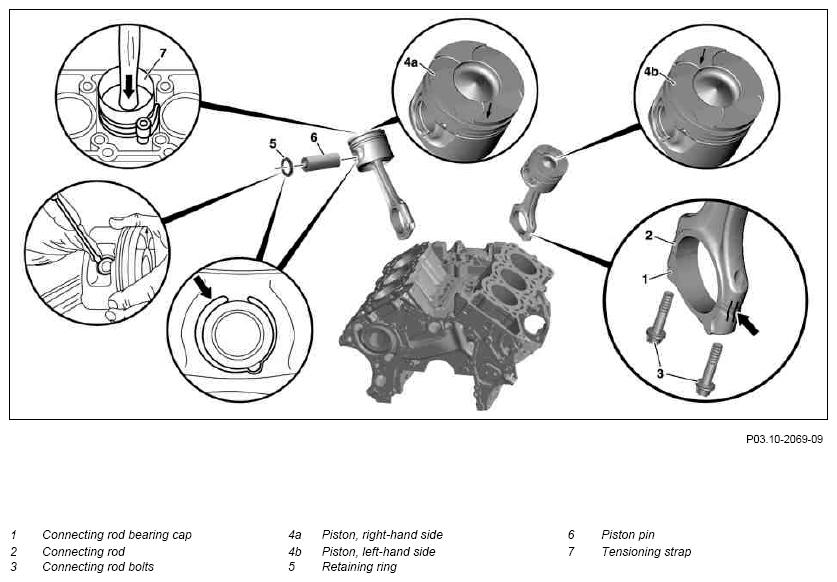

Fig 1: Piston Remove/Install Components
G09974065Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1.1 Remove engine Model 207, 221, model 212, 218 except code M005 (4MATIC)
Model 207, model 212, 218 except code M005 (4MATIC) AR01.10-P-2400OGE
MODEL 221 except CODE M005 (4MATIC) AR01.10-P-2400SXI
MODEL 221 with CODE M005 (4MATIC) AR01.10-P-2400SYZ
1.2 Remove engine with front axle carrier Model 212.08/09/28/29, model 218.39/99, model 222.033/133
MODEL 222 with CODE M005 (4MATIC) AR01.10-P-2500LFD
MODEL 212, 218 with code M005 (4MATIC) AR01.10-P-2500OGE
1.3 Remove engine with transmission MODEL 222 with ENGINE 642 with TRANSMISSION 722.9 (except 722.96)
  AR01.10-P-2401LFD
2.1 Remove transmission with torque converter ENGINE 642 in MODEL 207, 212, 218, 221, 222 with TRANSMISSION 722
ENGINE 642 in MODEL 207, 212, 218, 222 with TRANSMISSION 725

Model 222 with transmission 722.96 AR27.10-P-0500LHX
Model 207 with transmission 722.9 (except 722.96) AR27.10-P-0500CV
Model 212, 218 with transmission 722.9 (except 722.96) AR27.10-P-0500EV
MODEL 212, 218 with TRANSMISSION 722.96 AR27.10-P-0500CWX
Model 212 with transmission 725.0 AR27.10-P-0500EWM
Model 221 with transmission 722.9 (except 722.96) AR27.10-P-0500SX
Model 221 with transmission 722.96 AR27.10-P-0500SYZ
Model 222 with transmission 722.9 (except 722.96) AR27.10-P-0500LF
2.2 Remove manual transmission MODEL 212 with ENGINE 642 with TRANSMISSION 711.6
  -
3 Mount engine onto assembly stand Passenger car engine assembly stand
4 Remove cylinder head MODEL 207, 212, 218 AR01.30-P-5800OGE
MODEL 221 AR01.30-P-5800SXI
MODEL 222 AR01.30-P-5800LFD
5 Remove oil pan ENGINE 642 in MODEL 222 AR01.45-P-7500LFD
ENGINE 642 in MODEL 207
ENGINE 642 in MODEL 212 (except 212.08/09/28/29)
ENGINE 642 in MODEL 218 (except 218.39)
AR01.45-P-7500CO
ENGINE 642 in MODEL 212.08/09/28/29, 218.39 AR01.45-P-7500CWY
ENGINE 642 in MODEL 221.02/12 AR01.45-P-7500SXI
ENGINE 642 in MODEL 221.08/18 AR01.45-P-7500SYZ
6 Remove oil pump MODEL 222 AR18.10-P-6020LFD
MODEL 207, 212, 218, 221 AR18.10-P-6020SXI
7 Place patch marks on the pistons on right-hand side (4a) or pistons on left-hand side (4b) and cylinder liners IMPORTANT The pistons on the right-hand side (4a) or pistons on the left-hand side (4b) must not be interchanged.
8 Remove connecting rods (2) with pistons on the right-hand side (4a) and pistons on the left-hand side (4b) If arrow for the installation position of piston on the right side (4a) or the piston on the left side (4b) is no longer visible on the piston crown:

remove carbonization; if necessary again mark the piston on the right side (4a) or the piston on the left side (4b).

9 Mark installation position of the connecting rods (2) relative to the piston on the right-hand side (4a) or to the piston on the left-hand side (4b)
10 Remove retaining ring (5) for piston pin (6) NOTES
Lay RH piston (4a) or LH piston (4b) on a clean and soft base, for example on shop towels.
Otherwise damage will occur.

11 Press out piston pin (6)
INSTALLING Install
12 Assign pistons on the right-hand side (4a) or pistons on the left-hand side (4b) to the cylinder bore
13 Oil piston pin (6) and connecting rod bushing
14 Assemble piston on the right-hand side (4a) or the piston on the left-hand side (4b) and connecting rods (2) according to the marked installation position NOTES
The connecting rods (2) are cracked (broken). Dimensional accuracy of connecting rods bearing caps (1) can no longer be guaranteed after opening, therefore new connecting rods must be fitted after removal.
Engine damage can occur otherwise!
NOTES
The connecting rods are delivered with assembly bolts and have to be replaced by connecting rod bolts (3) with an assembly locking element.
This avoids loosening.

15 Push in piston pin (6) by hand
16 Insert retaining ring (5) for piston pin (6) into the groove of the piston on the right-hand side (4a) or of the piston on the left-hand side (4b) NOTES
Lay RH piston (4a) or LH piston (4b) on a clean and soft base, for example on shop towels.
Otherwise damage will occur.

17 Clean and lubricate piston on the right-hand side (4a) or piston on the left-hand side (4b) IMPORTANT For this purpose, clean and oil the cylinder bores, connecting rod journals and connecting rod bearing shells.
18 Align and tension the piston rings INSTALLATION IMPORTANTSPECIAL TOOL Push tensioning strap (7) over the piston rings and tension.
IMPORTANT Joint on upper piston ring must point in the direction of travel towards the front. The joints of other piston rings must be offset by 120° in each case.

SPECIAL TOOL Tensioning strap Figure
19 Insert piston on right-hand side (4a) or piston on the left-hand (4b) in the cylinder bores IMPORTANT The arrow on piston crown must point to opposite cylinder bank. The connecting rods (2) must not touch the connecting rod journal of the crankshaft while inserting; turn the crankshaft accordingly.
20 Install connecting rod bearing cap (1) MODEL 222 AR03.10-P-6111-06TI
MODEL 207, 212, 218, 221
IMPORTANT The contact surfaces must be devoid of any oil and grease and must not be damaged.
AR03.10-P-6111-06SXI
TORQUE SPECIFICATION Bolt, connecting rod bearing cap to connecting rod *BA03.10-P-1001-01L
21 Install oil pump MODEL 222 AR18.10-P-6020LFD
MODEL 207, 212, 218, 221 AR18.10-P-6020SXI
22 Install oil pan ENGINE 642 in MODEL 222 AR01.45-P-7500LFD
ENGINE 642 in MODEL 207
ENGINE 642 in MODEL 212 (except 212.08/09/28/29)
ENGINE 642 in MODEL 218 (except 218.39)
AR01.45-P-7500CO
ENGINE 642 in MODEL 212.08/09/28/29, 218.39 AR01.45-P-7500CWY
ENGINE 642 in MODEL 221.02/12 AR01.45-P-7500SXI
ENGINE 642 in MODEL 221.08/18 AR01.45-P-7500SYZ
23 Install cylinder head MODEL 207, 212, 218 AR01.30-P-5800OGE
MODEL 221 AR01.30-P-5800SXI
MODEL 222 AR01.30-P-5800LFD
24 Remove engine from assembly stand
25.1 Install transmission with torque converter ENGINE 642 in MODEL 207, 212, 218, 221, 222 with TRANSMISSION 722
ENGINE 642 in MODEL 207, 212, 218, 222 with TRANSMISSION 725

Model 222 with transmission 722.96 AR27.10-P-0500LHX
Model 222 with transmission 722.9 (except 722.96) AR27.10-P-0500LF
Model 207 with transmission 722.9 (except 722.96) AR27.10-P-0500CV
Model 212, 218 with transmission 722.9 (except 722.96) AR27.10-P-0500EV
MODEL 212, 218 with TRANSMISSION 722.96 AR27.10-P-0500CWX
Model 212 with transmission 725.0 AR27.10-P-0500EWM
Model 221 with transmission 722.9 (except 722.96) AR27.10-P-0500SX
Model 221 with transmission 722.96 AR27.10-P-0500SYZ
25.2 Install manual transmission MODEL 212 with ENGINE 642 with TRANSMISSION 711.6
  -
26.1 Install engine Model 207, 221, model 212, 218 except code M005 (4MATIC)
Model 207, model 212, 218 except code M005 (4MATIC) AR01.10-P-2400OGE
MODEL 221 except CODE M005 (4MATIC) AR01.10-P-2400SXI
MODEL 221 with CODE M005 (4MATIC) AR01.10-P-2400SYZ
26.2 Install engine with front axle carrier Model 212.08/09/28/29, model 218.39/99, model 222.033/133
MODEL 222 with CODE M005 (4MATIC) AR01.10-P-2500LFD
MODEL 212, 218 with code M005 (4MATIC) AR01.10-P-2500OGE
26.3 Install engine with transmission Model 222.032/123/132
MODEL 222 except CODE M005 (4MATIC) AR01.10-P-2401LFD
CONNECTING ROD

Number Designation ENGINE 642
BA03.10-P-1001-01L Bolt, connecting rod bearing cap to connecting rod Stage 1 short arm Nm 15
Stage 2 long arm Nm 20
Stage 3 short arm Nm 30
Stage 4 long arm Nm 40
Stage 5 short arm Nm 40
Stage 5 short arm ∠° 90
Stage 6 long arm ∠° 90
Stage 7 short arm ∠° 90
Stage 8 long arm ∠° 90
For picture, see   AR03.10-P-6111-06TI
Fig 2: Identifying Tensioning Strap (000 589 04 14 00)
G09974066Courtesy of MERCEDES-BENZ USA
