Inspecting belt pulley/vibration damper for axial and radial runout - AR03.30-P-1600-01SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221

CHECK VALUES FOR BELT PULLEY/VIBRATION DAMPER

Number	Designation			Engine 642
BE03.30-P-1001-02D	Permissible difference at vibration damper	Radial runout	mm	0.4
BE03.30-P-1001-02D	Permissible difference at vibration damper	Lateral trueness	mm	0.4

Fig 1: Identifying Dial Indicator (001 589 53 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dial Indicator Holder (363 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Bolt dial gauge holder (03) onto timing case cover.
Insert dial gauge (04) indicator holder (03).
Position tracer pin (05) of dial gauge (04) at measuring point (B).
Rotate belt pulley/vibration damper (62) by hand, inspect lateral trueness.

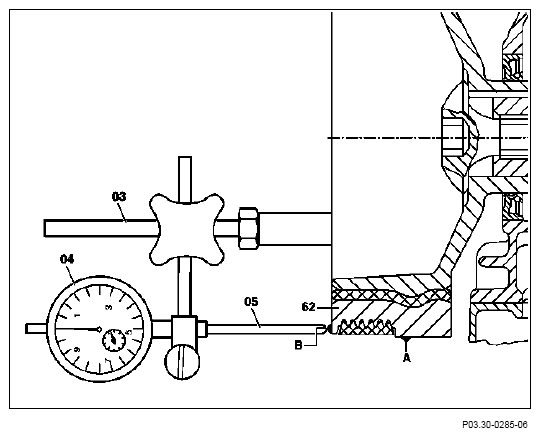

Fig 3: Rotating Belt Pulley/Vibration Damper
Courtesy of MERCEDES-BENZ USA
Position measuring pin (05) ) of dial gauge (04) at measuring point (A).
Rotate belt pulley/vibration damper (62) by hand, inspect smooth operation.
