Remove/install belt pulley/vibration damper - AR03.30-P-1600CMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 156 in MODEL 204, 212

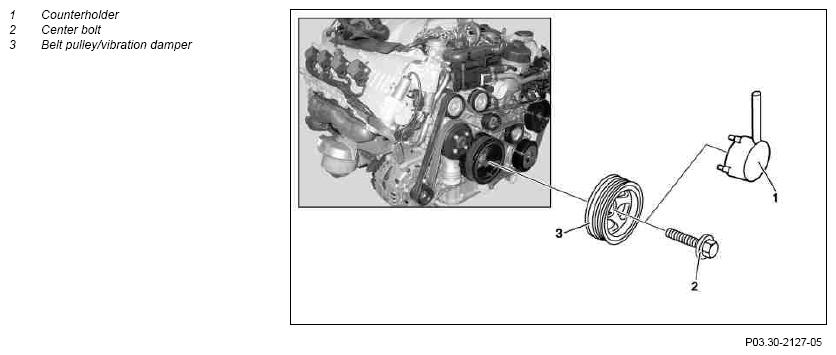

Fig 1: Belt Pulley/Vibration Damper Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove front engine cover and both engine air intake ducts upstream of the air filter	Do not tilt front engine cover, but lift upwards vertically otherwise the retaining lugs can break off.
2	Remove fan shroud	Model 204	AR20.40-P-5050CW
		Model 212	AR20.40-P-5050EW
3	Remove poly-V belt		AR13.20-P-0001CMG
4	Attach guard plate for radiator/condenser
	Guard plate for radiator/condenser		WF58.50-P-0110-01A
5	Remove center bolt (2)	The center bolt (2) should always be replaced. To set the rotation angle, make two guide marks on the counterholder (1). Use extension.
			*BA03.30-P-1001-01Q
			Fig 2
6	Detach belt pulley/vibration damper (3) from crankshaft	The groove on belt pulley/vibration damper (3) must engage in feather key of the crankshaft.
	Checking
7	Check contact surface of the crankshaft radial sealing ring at the hub of belt pulley/vibration damper (3)	Check for scoring and galling, and replace belt pulley/vibration damper (3) if necessary.
8	Replace front crankshaft radial sealing ring	Only when replacing belt pulley/vibration damper (3) or in the event of leaks at crankshaft radial sealing ring.	AR03.20-P-3000CMG
9	Install in the reverse order
10	Check engine oil level and adjust if necessary
	Engine oil and filter change	Model 204	AP18.00-P-0101CMG
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Conduct engine test run and check engine for leaks

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 156
BA03.30-P-1001-01Q	Vibration damper on crankshaft	Stage 1	Nm	250
		Stage 2		Releasing
		Stage 3	Nm	200
		Stage 4	∠°	180

Fig 2: Identifying Counterholder (112 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
