Remove/install oil pan - AR01.45-P-7500EWX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272 in MODEL 212

Vehicles with a middle sump

ENGINE 273 in MODEL 212

Vehicles with a middle sump

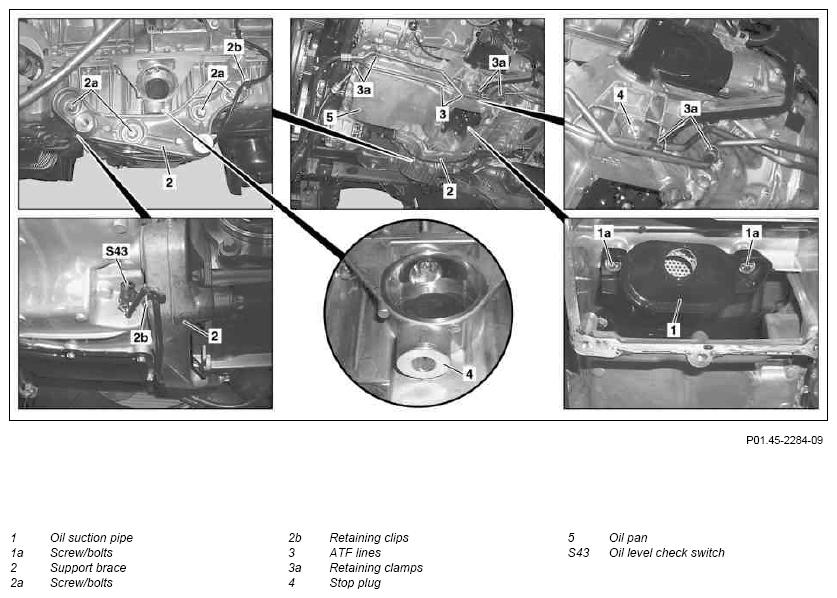

Fig 1: Oil Pan Remove/Install Components
G09973973Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove front axle transmission Vehicles with code M005 (4MATIC)
    Transmission 722.96 AR33.30-P-0525CWX
2 Remove oil pan bottom section   AR01.45-P-7555CWX
3 Remove screw/bolts (1a) and oil suction pipe (1) TORQUE SPECIFICATION Oil suction pipe at crankcase *BA18.10-P-1005-01B
4 Detach support (2) by removing screw/bolts (2a) and retaining clamps (2b) Vehicles with code M005 (4MATIC)
    TORQUE SPECIFICATION Collar bolt, support to oil pan *BA33.30-P-1011-03G
5 Detach oil dipstick guide tube from oil pan (5)   AR18.40-P-3510EWX
    IMPORTANT The oil dipstick guide tube remains in the vehicle.
6 Disconnect electrical connection on switch (S43)
7 Detach retaining clamps (3a) and push automatic oil lines (3) to the side TORQUE SPECIFICATION Screw/bolt, oil line bracket to oil pan *BA01.45-P-1007-01M
8 Loosen high-pressure line of power steering at the alternator TORQUE SPECIFICATION Bolt, alternator to timing case *BA15.40-P-1001-01F
9 Remove grommet (4) IMPORTANT Vehicles with code M005 (4MATIC) Two screw/bolts for fastening the oil pan (5) are located below.
    TORQUE SPECIFICATION Screw plug to oil pan top section *BA01.45-P-1009-01M
10 Remove screw/bolts from oil pan (5) Engine 272 AR01.45-P-7500-06VA
    Engine 273 AR01.45-P-7500-06SX
    INSTALLATION IMPORTANT Observe different bolt lengths and bolt diameters as per bolt plan:
    TORQUE SPECIFICATION Screw/bolt, oil pan to cylinder crankcase, timing case cover or rear cover *BA01.45-P-1002-01M
    TORQUE SPECIFICATION Oil pan top section to cylinder crankcase at transmission end *BA01.45-P-1005-01M
    TORQUE SPECIFICATION Screw/bolt, automatic transmission to engine *BA27.40-P-1008-01A
11 Remove oil pan (5) from crankcase
12 Clean sealing surfaces on the oil pan (5) and crankcase   AR01.00-P-0050-01A
    NOTES Do not use any sharp-edged tools or abrasive paper.
The sealing surfaces can get damaged otherwise.
    Loctite 7200 *BR00.45-Z-1038-04A
    Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
13 Apply sealant to sealing surface of oil pan (5):
IMPORTANT Notes on sealant path for oil pan   AH01.45-P-0001-01SX
IMPORTANT Notes on sealant path for oil pan   AH01.45-P-0001-01VA
    Loctite 5970 sealant *BR00.45-Z-1013-01A
    SPECIAL TOOL Application gun Figure
14 Install in the reverse order
15 Check engine oil level approx. 5 min. after switching off the engine at operating temperature, correct if necessary
REFER TO MAINTENANCE Engine oil and filter change ENGINE 272.977 AP18.00-P-0101VA
REFER TO MAINTENANCE   Engine 273 AP18.00-P-0101SX
REFER TO MAINTENANCE   ENGINE 272.923/952/980/983
NOTES Vehicle must be horizontal and standing on its wheels.
Measurement errors can occur otherwise.		 AP18.00-P-0101PIT
16 Check for oil leaks with engine running
OIL PAN

Number Designation ENGINE 272 ENGINE 273
BA01.45-P-1002-01M Screw/bolt, oil pan to cylinder crankcase, timing case cover or rear cover Nm 9 9
OIL PAN

Number Designation ENGINE 272 ENGINE 273
BA01.45-P-1005-01M Oil pan top section to cylinder crankcase at transmission end M8X30 Nm 20 20
OIL PAN

Number Designation ENGINE 272 ENGINE 273
BA01.45-P-1007-01M Screw/bolt, oil line bracket to oil pan M6 Nm 9 9
OIL PAN

Number Designation ENGINE 272 ENGINE 273
BA01.45-P-1009-01M Screw plug to oil pan top section Nm 20 20
ALTERNATOR

Number Designation ENGINE 272 ENGINE 273
BA15.40-P-1001-01F Bolt, alternator to timing case Nm 20 20
OIL PUMP

Number Designation ENGINE 272.91/920/921/922/923/94/95/96/970/971/972/973/974/975/977/98/99 ENGINE 273
BA18.10-P-1005-01B Oil suction pipe at crankcase Nm 9 9
HOUSING

Number Designation TRANSMISSION 722.9
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10X40 Nm 38
M10X45 Nm 38
M10X90 Nm 38
M12 Nm -
FRONT AXLE GEAR

Number Designation MODEL 212
BA33.30-P-1011-03G Collar bolt, support to oil pan Nm 60
Fig 2: Identifying Application Gun (112 589 00 25 00)
G09973974Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
