Remove/install front axle gear - AR33.30-P-0525CWX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218 with TRANSMISSION 722.96

MODEL 212, 218 with TRANSMISSION 722.97

MODIFICATION NOTES

11.7.14 Hypoid gear oil MODEL 204 BF33.30-P-1001-03F
11.7.14 Hypoid gear oil MODEL 207 BF33.30-P-1001-03F
11.7.14 Hypoid gear oil MODEL 212 BF33.30-P-1001-03F
11.7.14 Hypoid gear oil MODEL 218 BF33.30-P-1001-03F

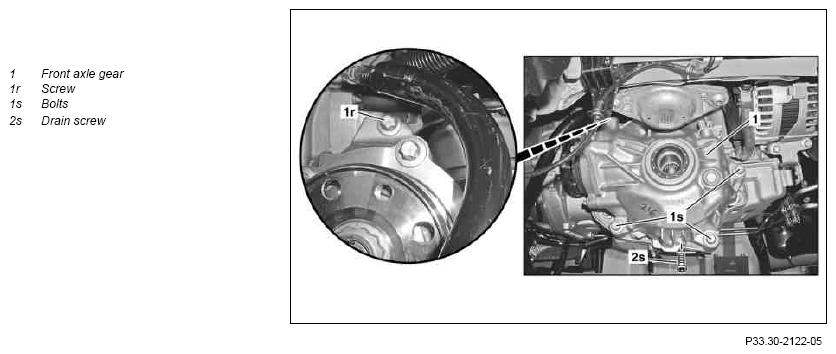

Fig 1: Front Axle Gear Remove/Install Components
G09976241Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove front axle carrier MODEL 204, 207 with TRANSMISSION 722.96 AR33.10-P-0001CW
    MODEL 212, 218 with TRANSMISSION 722.96
MODEL 212, 218 with TRANSMISSION 722.97		 AR33.10-P-0001EW
2 Detach propeller shaft from front axle transmission (1) MODEL 204, 207.3 with TRANSMISSION 722.96 Vehicles with 4MATIC AR41.10-P-0070CWX
    MODEL 212, 218 with TRANSMISSION 722.97
MODEL 212.08/09/28/29, 218.39/99 with TRANSMISSION 722.96
NOTES
Absolute cleanliness is essential when working on the front axle transmission (1).
If this is not ensured, even minute dirt particles can prevent the front axle transmission (1) from functioning correctly or damage it.		 AR41.10-P-0070EWX
3 Remove intermediate shaft MODEL 204.08/09/28/29/38/93/98 with TRANSMISSION 722.96
MODEL 207, 212, 218 with TRANSMISSION 722.96
with CODE M005 (4MATIC)
MODEL 212, 218 with TRANSMISSION 722.97
with CODE M005 (4MATIC)		 AR33.30-P-0625CWX
4 Remove screws/bolts (1r, 1s) and remove front axle differential (1) NOTES
Absolute cleanliness is essential when working on the front axle transmission (1).
If this is not ensured, even minute dirt particles can prevent the front axle transmission (1) from functioning correctly or damage it.
INSTALLING Install
5 Check that pilot bushing is seated correctly in oil pan
6 Attach front axle transmission (1) to front axle   AR33.30-P-0525-04CWX
    NOTES
It is essential to observe tightening sequence. If this is not observed, there may be noise or vibrations in the front axle transmission.
    TORQUE SPECIFICATION Collar bolt, front axle gear to support brace *BA33.30-P-1006-03G
    TORQUE SPECIFICATION Collar bolt, front axle gear to engine support *BA33.30-P-1007-03G
7 Remove drain screw (2s) and drain oil from front axle transmission (1) TORQUE SPECIFICATION Front axle transmission drain screw *BA33.30-P-1008-03G
8 Fill front axle transmission (1) with oil
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7)   Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
    IMPORTANT The front axle transmission does not have an oil filler hole and must be filled via the front axle shaft opening.
    FLUID SPECIFICATION Hypoid gear oil *BF33.30-P-1001-03F
9 Install intermediate shaft MODEL 204.08/09/28/29/38/93/98 with TRANSMISSION 722.96
MODEL 207, 212, 218 with TRANSMISSION 722.96
with CODE M005 (4MATIC)
MODEL 212, 218 with TRANSMISSION 722.97
with CODE M005 (4MATIC)		 AR33.30-P-0625CWX
10 Attach propeller shaft to front axle transmission (1) MODEL 204, 207.3 with TRANSMISSION 722.96 Vehicles with 4MATIC AR41.10-P-0070CWX
    MODEL 212, 218 with TRANSMISSION 722.97
MODEL 212.08/09/28/29, 218.39/99 with TRANSMISSION 722.96
NOTES
Absolute cleanliness is essential when working on the front axle transmission (1).
If this is not ensured, even minute dirt particles can prevent the front axle transmission (1) from functioning correctly or damage it.
IMPORTANT It is essential to observe the tightening torque. Failure to do so will result in noises and vibrations in the front axle differential.		 AR41.10-P-0070EWX
11 Install front axle carrier MODEL 204, 207 with TRANSMISSION 722.96 AR33.10-P-0001CW
    MODEL 212, 218 with TRANSMISSION 722.96
MODEL 212, 218 with TRANSMISSION 722.97		 AR33.10-P-0001EW
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
12 Perform engine test run and check front axle transmission (1) for leaks and that it is functioning correctly
FRONT AXLE GEAR

Number Designation MODEL 204 MODEL 207
BA33.30-P-1006-03G Collar bolt, front axle gear to support brace Nm 65 65
FRONT AXLE GEAR

Number Designation MODEL 212 MODEL 218
BA33.30-P-1006-03G Collar bolt, front axle gear to support brace Nm 65 65
FRONT AXLE GEAR

Number Designation MODEL 204 MODEL 207
BA33.30-P-1007-03G Collar bolt, front axle gear to engine support Stage 1 Nm 5 5
Stage 2 Nm 50 50
Stage 3 ∠° 95 95
FRONT AXLE GEAR

Number Designation MODEL 212 MODEL 218
BA33.30-P-1007-03G Collar bolt, front axle gear to engine support Stage 1 Nm 5 5
Stage 2 Nm 50 50
Stage 3 ∠° 95 95
FRONT AXLE GEAR

Number Designation MODEL 204 MODEL 207
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation MODEL 212 MODEL 218
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation MODEL 204 MODEL 207
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
FRONT AXLE GEAR

Number Designation MODEL 212 MODEL 218
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
