Bolt plan for oil pan - AR01.45-P-7500-06SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 273

Oil pan with front sump

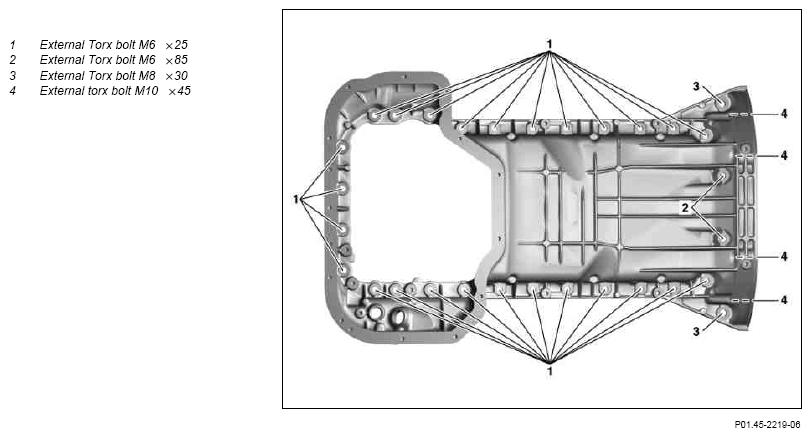

Fig 1: Oil Pan With Front Sump Bolts
G10240555Courtesy of MERCEDES-BENZ USA

Oil pan with middle sump

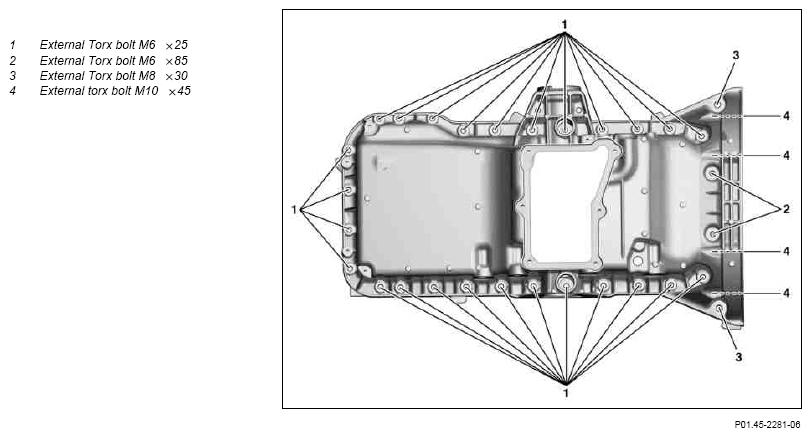

Fig 2: Oil Pan With Middle Sump Bolts
G10240556Courtesy of MERCEDES-BENZ USA

Oil pan with rear sump

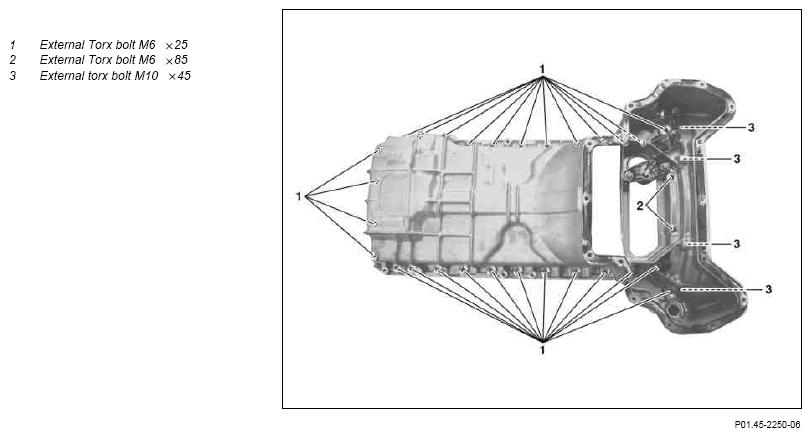

Fig 3: Oil Pan With Rear Sump Bolts
G10240557Courtesy of MERCEDES-BENZ USA
