Remove/install bottom part of oil pan - AR01.45-P-7555CWX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272 in MODEL 204.08/95/98, 212

Vehicles with center sump

ENGINES 273 in MODEL 212

Vehicles with center sump

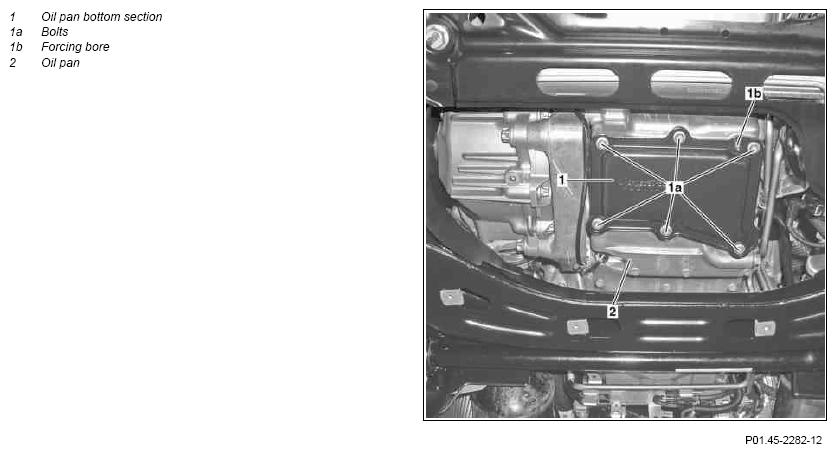

Fig 1: Bottom Part Of Oil Pan Remove/Install Components
G09973987Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove engine compartment paneling INSTALLATION IMPORTANT Only install engine compartment paneling after engine test run and leak test.
2 Drain engine oil Model 204 AP18.00-P-0101CWZ
    Model 212 AP18.00-P-0101EW
3 Remove bolts (1a) on oil pan bottom section (1) TORQUE SPECIFICATION *BA01.45-P-1003-01M
4 Loosen and remove oil pan bottom section (1) from oil pan (2) NOTES Pry off oil pan bottom section (1) by screwing a bolt into pry-off bore (1b) of oil pan (2) and detach it from oil pan (2) using a mounting wedge. Pry off oil pan bottom section (1) from oil pan (2) using bolt just far enough for the mounting wedge to be slid in between sealing surfaces otherwise the oil pan bottom section (1) and sealing surface of the oil pan (2) may be damaged.
IMPORTANT If oil pan bottom section (1) cannot be loosened from oil pan (2), heat oil pan bottom section (1) in area around sealing surfaces using hot air gun.
INSTALLATION IMPORTANT Observe notes on application of sealant to oil pan bottom section (1): ↓
Notes on sealant path for oil pan
    Engine 272 AH01.45-P-0001-01VA
    Engine 273 AH01.45-P-0001-01SX
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    Loctite 5970 sealant *BR00.45-Z-1013-01A
CLEAN Clean
5 Clean sealing surfaces on oil pan bottom section (1) and oil pan (2). NOTES Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces. AR01.00-P-0050-01A
    Loctite 7200 *BR00.45-Z-1038-04A
    Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
6 Install in the reverse order
INSPECT Checking
7 Check engine oil level and correct if required Model 204 AP18.00-P-0101CWZ
    Model 212 AP18.00-P-0101EW
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
8 Carry out engine test run, checking the engine for proper operation and leaks
OIL PAN

Number Designation Engine 272 Engine 273
BA01.45-P-1003-01M Screw/bolt, oil pan bottom section to oil pan Nm 9 14
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G09973988Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Squeeze Gun (112 589 00 25 00)
G09973989Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
