Remove/install bottom part of oil pan - AR01.45-P-7555SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 218, 212.02/22, 221.02/12 (except, 218.39)

Shown on engine 642.850

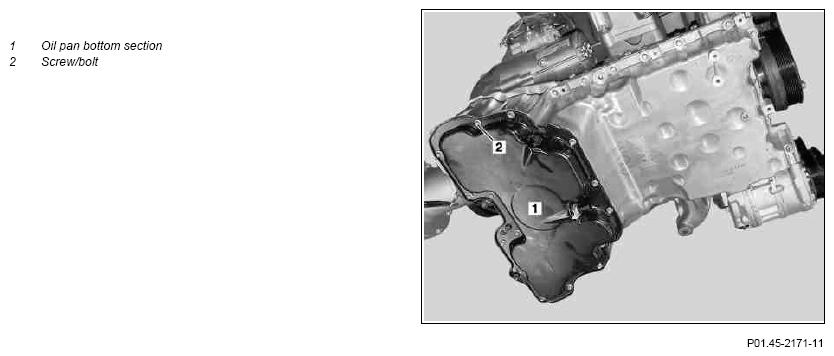

Fig 1: Bottom Part Of Oil Pan Remove/Install Components - Shown On Engine 642.850
G09973993Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it moving off. Wear closed and close-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
1 Remove bottom section of soundproofing Model 221 without code (Z07) Top protection
Model 207, 212, 218
INSTALLATION IMPORTANT Only install bottom sections of soundproofing after engine test run.		 AR61.20-P-1105SX
AR94.30-P-5300EW
2 Drain/collect engine oil INSTALLATION IMPORTANT Replace sealing ring of drain plug.
    Model 207, 212, 218 AP18.00-P-0101EWO
    Model 221 AP18.00-P-0101SXI
3 Detach bracket from steering line Model 221
4 Disconnect electrical connector on oil temperature sensor Engine 642.8
5 Remove bolts (2) TORQUE SPECIFICATION *BA01.45-P-1003-01Q
6 Detach oil pan bottom section (1) Loctite 5970 sealant *BR00.45-Z-1013-01A
IMPORTANT Notes on sealant path for oil pan   AH01.45-P-0001-01OM
CLEAN Clean
7 Clean sealing surfaces NOTES Do not use any sharp-edged tools and also no grinding paper otherwise the sealing surfaces will be damaged. AR01.00-P-0050-01A
    Loctite 7200 *BR00.45-Z-1038-04A
    Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
INSPECT Checking
8 Check sealing surface on oil pan bottom section (1) for flatness
9 Install in the reverse order
10 Check engine oil level NOTES In order to avoid measurement errors, vehicle must be parked on an even surface. AR18.00-P-3035-01SXI
    IMPORTANT Inspect engine oil level about 5 min. after switching off warm engine
    FLUID SPECIFICATION Without code (474) Particulate filter *BF18.00-P-1001-01A
    FLUID SPECIFICATION With code (474) Particulate filter *BF18.00-P-1001-01S
11 Check for leaks with engine running
OIL PAN

Number Designation Engine 642
BA01.45-P-1003-01Q Oil pan bottom section to oil pan top section M6 Nm 14
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 without particulate filter up to engine no. 64293040458147 Engine 642.930 without particulate filter as of engine no. 64293040458148 Engine 642.932/961 without particulate filter
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specifications Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 with particulate filter up to engine No. 64293040458147 Engine 642.930 with particulate filter starting from engine No. 64293040458148 Engine 642.932/961 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.826/830/832/834/836/838/850/852/853/854/856/858/862/868 with diesel particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 8.0
Specifications for Operating Fluids Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
