Bolt plan for oil pan - AR01.45-P-7500-06SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221, 222

  1. Unscrew and screw in screw/bolts (1 to 4) in the specified sequence.

    IMPORTANT Pay attention to different screw/bolt lengths and screw/bolt diameters.

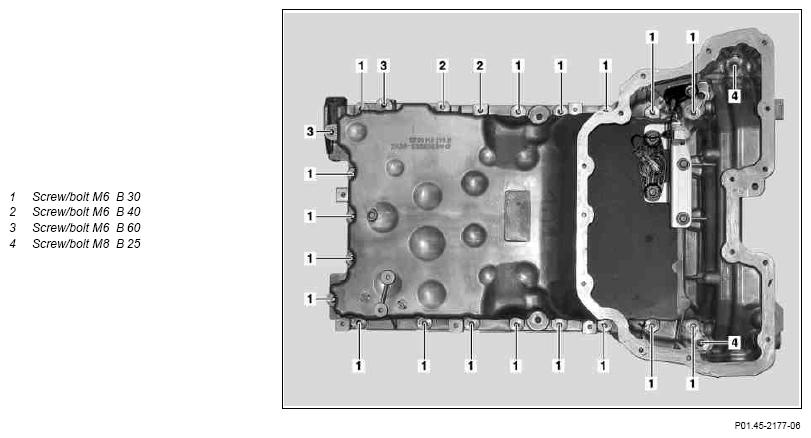

    Fig 1: Oil Pan Bolts
    G10240558Courtesy of MERCEDES-BENZ USA
