Remove/install end cover - AR01.40-P-8913SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 218, 221, 222

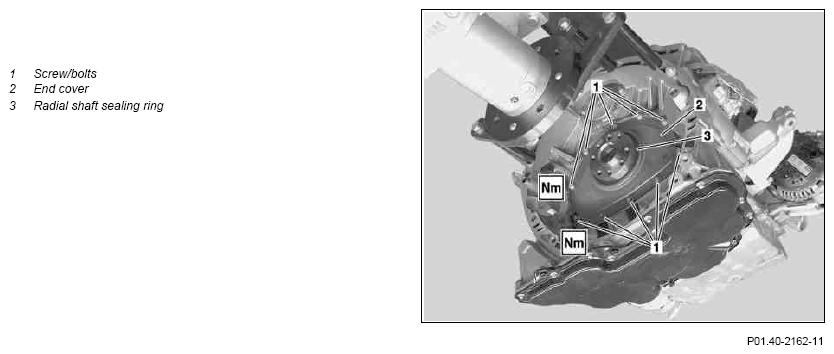

Fig 1: Radial Shaft End Cover Remove/Install Components
G09973932Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove flywheel/drive plate   AR03.30-P-8001SXI
2 Remove screw/bolts (1)
3 Remove end cover (2)
CLEAN Clean
4 Clean contact surface on cylinder crankcase and oil pan   AR01.00-P-0050-01A
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
Loctite 7200 *BR00.45-Z-1038-04A
INSTALLING Install
5 Install end cover (2)   AR03.20-P-3063-01OM
NOTES The end cover (2) must be completely replaced since radial shaft sealing ring (3) in end cover 2) is vulcanized in. The notes on sealant application and on correct installation of the end cover (2) must also be strictly observed.
This prevents leaks occurring.
Loctite 5970 sealant *BR00.45-Z-1013-01A
Assembly cleaner *BR00.45-Z-1028-04A
Loctite 7200 *BR00.45-Z-1038-04A
SPECIAL TOOL Installation tool Fig 2
6 Screw in screw/bolts (1) TORQUE SPECIFICATION Screw/bolt, rear end cover to cylinder crankcase *BA01.40-P-1001-01S
7 Install flywheel/drive plate   AR03.30-P-8001SXI
8 Check engine oil level ENGINE 642 in MODEL 222 AR18.00-P-3035-01LFD
ENGINE 642 in MODEL 207, 212, 218, 221 AR18.00-P-3035-01SXI
NOTES Vehicle must be horizontal and standing on its wheels.
This prevents measurement errors occurring.
IMPORTANT Check engine oil level about 5 min. after switching off warm engine.
FLUID SPECIFICATION Engine oil *BF18.00-P-1001-01A
FLUID SPECIFICATION Engine oil *BF18.00-P-1001-01S
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
9 Check engine for leaktightness IMPORTANT To do this, perform an engine test run.
CYLINDER CRANKCASE, TIMING CASE COVER, END COVER

Number Designation ENGINE 642
BA01.40-P-1001-01S Screw/bolt, rear end cover to cylinder crankcase Stage 1 Nm 8
Stage 2 Nm 10
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.932/961 without CODE 474 (Particulate trap) ENGINE 642.930 ## up to 458147 without CODE 474 (Particulate trap)
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liter 8, 0 9, 5
Specifications Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.930 ## as of 458148 without CODE 474 (Particulate trap)
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liter 8, 0
Specifications Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.826/830/832/834/835/836/838/850/852/853/854/856/858/861/862/867/868 with CODE 474 (Particulate trap) ENGINE 642.930 ## up to 458147 with CODE 474 (Particulate trap)
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liter 8, 0 9, 5
Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation ENGINE 642.930 ## as of 458148 with CODE 474 (Particulate trap) ENGINE 642.932/961 with CODE 474 (Particulate trap)
BF18.00-P-1001-01S Engine oil Filling capacity (oil Liter and filter change) 8, 0 8, 0
Specifications Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.52). See https://bevo.mercedes-benz.com/index.php?language_id=1
Fig 2: Identifying Tool (271 589 00 43 00)
G09973933Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
