Remove/install front bumper - AR88.20-P-2000EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207
MODEL 212 up to model year 2014
Shown on MODEL 212 on right side of vehicle
Shown on model 207 as of model year 2014
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | MODEL 207 with CODE U60 (Active Bonnet (Pedestrian protection)) MODEL 212 up to model year 2014 with CODE U60 (Active Bonnet (Pedestrian protection)) |
|
| AR54.10-P-0003EW | |||
| 2 | Lift vehicle on vehicle lift | ||
| 3.1 | Remove radiator paneling (13) | MODEL 212 up to model year 2014 |
|
| AR88.40-P-4001EW | |||
| 3.2 | Loosen radiator grille (13) at top of radiator support | MODEL 207 | |
| AR88.40-P-4001EC | |||

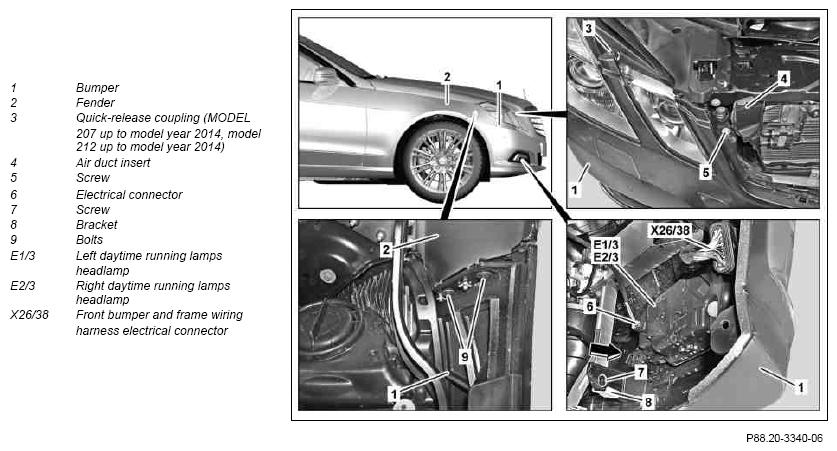

| 4 | Pivot left and right air duct insert (4) to side and unscrew bolts (5) | MODEL 207 Gap dimensions on hoods, doors and lids |
AR60.00-P-0700-01EC |
| Gap dimensions on hoods, doors and lids MODEL 212 up to model year 2014 MODEL 207.3 |
AR60.00-P-0700-01EW | ||
| MODEL 207.4 | *BE60.00-P-1001-01W | ||
| MODEL 212.0/1 up to model year 2014 MODEL 212.2 up to model year 2014 |
*BE60.00-P-1001-01U | ||
| Figure | |||
| 5 | Remove left and right quick-release coupling (3) | MODEL 207 up to model year 2014 MODEL 212 up to model year 2014 |
|
| 6 | Detach left and right fender liner front section in area of bumper | AR88.10-P-1300ELX | |
| 7 | Unscrew bolts (9) on left and right fender (2) | ||
| 8 | Disconnect electrical connector on frame wiring harness and front bumper (X2638) | ||
| 9 | Disconnect electrical connector (6) from left daytime running light (E1/3) or left front fog lamp and right daytime running lamp (E2/3) or right front fog lamp and expose electrical wiring harness | ||
| 10.1 | Remove bottom section of soundproofing at front | MODEL 207 with ENGINE 642, 651 | |
| AR94.30-P-5300EW | |||
| 10.2 | Remove front engine compartment paneling | MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 | |
| AR61.20-P-1105EW | |||
| 11 | Unscrew bolt (7) form left and right bracket (8) | ||

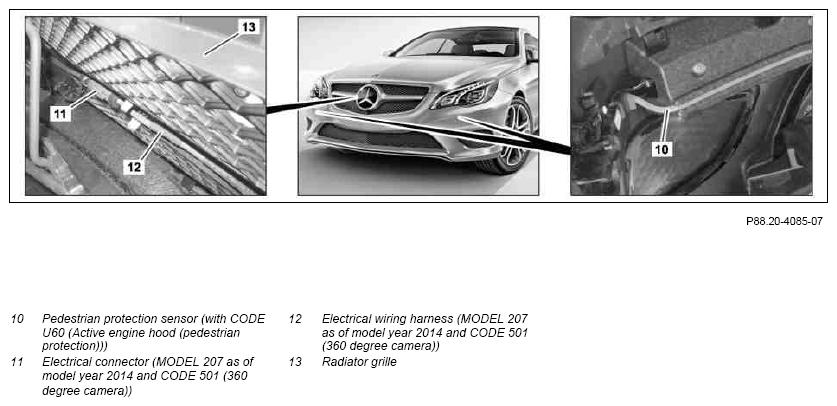

| 12 | Disconnect electrical connector (11) and unclip electrical wiring harness (12) from radiator trim (13) | MODEL 207 as of model year 2014 with CODE 501 (360 degree camera) |
|
| 13 | Guide bumper (1) out left and right bracket (8) | ||
| 14 | Remove bumper (1) toward front | ||
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 15 | Disassemble bumper (1) | When replacing bumper (1). | |
| MODEL 207 up to model year 2014 MODEL 212 up to model year 2014 |
AR88.20-P-2050EW | ||
| MODEL 207 as of model year 2014 |
AR88.20-P-2050EWN | ||
| Check | |||
| 16 | Check left and right pedestrian sensor (10) for damage of any kind (cracks, holes, kinks, etc.) | MODEL 207 as of model year 2014 with CODE U60 (Active Bonnet (Pedestrian protection)) If damages are visible: Replace pedestrian protection sensor (10). |
|
| AR91.60-P-0950EWM | |||
| 17 | Install in the reverse order | ||
| 18 | Check adjustment of left front fog lamp and right front fog lamp, adjust | MODEL 207 without CODE 615 (Bi-xenon headlamps with active light function) without CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination) without CODE 621 (Intelligent Light System (left-hand traffic)) without CODE 622 (Intelligent Light System) MODEL 212 up to model year 2014 without CODE 615 (Bi-xenon headlamps with active light function) |
|
| AP82.10-P-8260EW | |||
| 19 | Calibrate 360° camera in front with diagnostic system | MODEL 207 as of model year 2014 with CODE 501 (360 degree camera) |
|
| AD00.00-P-2000-04A |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01U | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (±1) | 4 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (±1) | 4 (±1) | ||
| Engine hood to radiator grille | Dimension "C" | mm | - | - | ||
| Engine hood to bumper | Dimension "D" | mm | 4, 5 (±1, 5) | 4, 5 (±1, 5) | ||
| Engine hood to A-pillar | Dimension "E" | mm | 4, 5 (±1, 5) | 4, 5 (±1, 5) | ||
| Bumper to headlamp | Dimension "F" | mm | 3, 5 (±1, 5) | 3, 5 (±1, 5) | ||
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||
CHECK VALUES FOR GAPS
| Number | Designation | MODEL 207.3 | MODEL 207.4 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01W | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (±1) | 4 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (±1) | 4 (±1) | ||
| Engine hood to bumper | Dimension "C" | mm | 6 (+1/-2) | 6 (+1/-2) | ||
| Engine hood to A-pillar | Dimension "D" | mm | 4, 5 (+2/-1) | 4, 5 (+2/-1) | ||
| Bumper to headlamp | Dimension "E" | mm | 2, 5 (±1, 5) | 2, 5 (±1, 5) | ||
| Picture | AR60.00-P-0700-01EC | AR60.00-P-0700-01EC | ||||
