Remove/install lamp unit - AR82.10-P-4730EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of left front lamp unit (E1) or right front lamp unit (E2) | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3.1 | Detach front bumper | When removing left front lamp unit (E1) or right front lamp unit (E2). | |
| AR88.20-P-2000EWM | |||
| 3.2 | Remove front bumper | When removing left front lamp unit (E1) and right front lamp unit (E2). | |
| AR88.20-P-2000EWM | |||

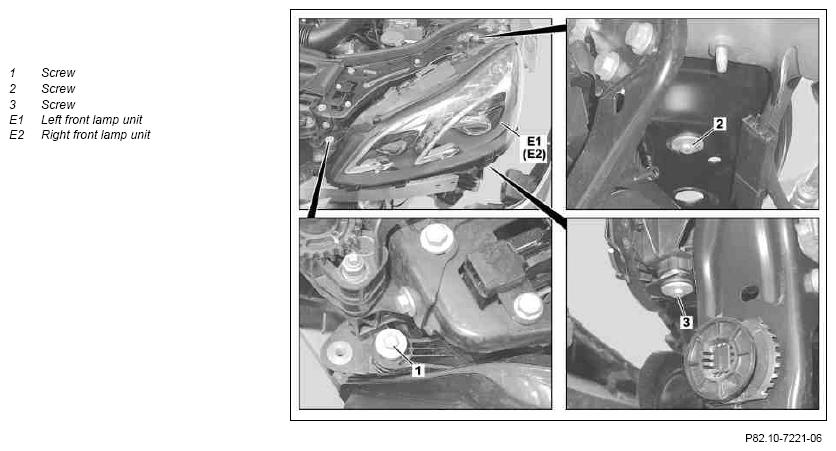

| 4 | Remove screws (1, 2, 3) | ||
| Gap dimension | *BE60.00-P-1006-01U | ||
| Figure | |||
| 5 | Disconnect electrical connector from left front lamp unit (E1) or right front lamp unit (E2) | ||
| 6 | Remove left front lamp unit (E1) or right front lamp unit (E2) | ||
| 7 | Remove left front exterior lights LED actuation module (E1n7) or right front exterior lights LED actuation module (E2n7) | MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) When replacing the left front lamp unit (E1) or the right front lamp unit (E2). |
|
| AR82.10-P-4655EWM | |||
| 8 | Remove left headlamp control unit (E1n9) or right headlamp control unit (E2n9) | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 212 as of model year 2014 with CODE 631 (Scheinwerfer LED static left-hand traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic) MODEL 212 as of model year 2014 with CODE 632 (Headlamps, LED, static, right-side traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4660EWM | ||
| MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4660ECM | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check headlamp adjustment and correct if necessary | ||
| Check and correct the adjustment of the headlamps | AP82.10-P-8260EW |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1006-01U | Gap dimension | Engine hood to headlamp | Dimension "B1" | mm | 3, 5 (±1) | 3, 5 (±1) |
| Engine hood to radiator grille/bumper | Dimension "C1" | mm | 3, 5 (±1) | 3, 5 (±1) | ||
| Offset: Engine hood to radiator grille/bumper | Dimension "C2" | mm | 1 (-0, 5/+1) | 1 (-0, 5/+1) | ||
| Bumper to headlamp, outside | Dimension "F1" | mm | 2, 5 (±1, 5) | 2, 5 (±1, 5) | ||
| Bumper to headlamp, bottom/inside | Dimension "F2" | mm | 2 (-1/+1, 5) | 2 (-1/+1, 5) | ||
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||
