Remove/install headlamp control unit - AR82.10-P-4660EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212 with CODE 631 (Headlamps, LED, static, left-hand traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic)
MODEL 207, 212 with CODE 632 (Headlamps, LED, static, right-side traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic)

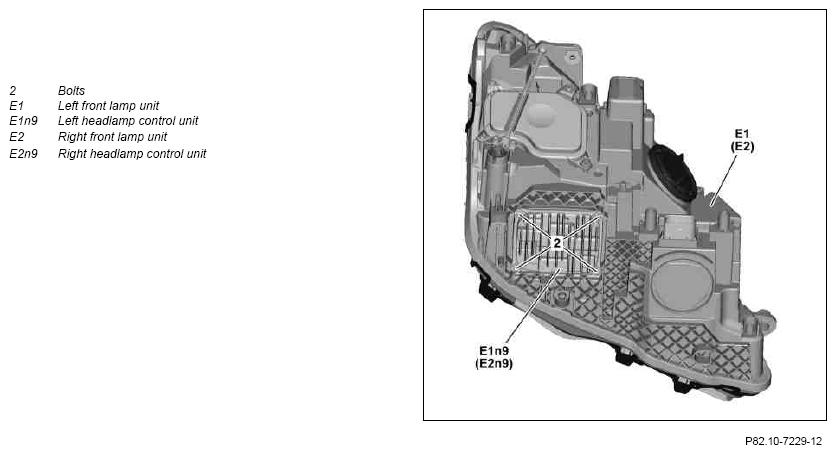

Shown on headlamp, MODEL 207 with CODE 631 (Static LED headlamp for left-hand traffic)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of left headlamp control unit (E1n9) or right headlamp control unit (E2n9) | When replacing left headlamp control unit (E1n9) or right headlamp control unit (E2n9). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Remove fender liner front section in left or right front fender | AR88.10-P-1300ELX | |
| 4.1 | Remove engine compartment paneling | MODEL 207, 212 with ENGINE 271, 272, 273, 274, 276, 278; MODEL 212 with ENGINE 156, 157 | |
| AR61.20-P-1105EW | |||
| 4.2 | Remove bottom section of soundproofing at front | Model 207, 212 with engine 642, 651 | |
| AR94.30-P-5300EW | |||
| 5 | Detach washer fluid reservoir and press to one side | When removing left headlamp control unit (E1n9). | |
| AR82.35-P-6000CW | |||
| 6 | Detach stationary heater and tie to one side | MODEL 207, 212 with CODE 228 (Stationary heater) When removing right headlamp control unit (E2n9). |
|
| MODEL 212 with CODE 228 (Stationary heater) | AR83.70-P-5302EW | ||
| 7 | Remove screws/bolts (2) at left headlamp control unit (E1n9) or at right headlamp control unit (E2n9) | ||
| 8 | Pull out left headlamp control unit (E1n9) or right headlamp control unit (E2n9) until electrical connectors can be separated | ||
| 9 | Disconnect electrical connectors and remove left headlamp control unit (E1n9) or right headlamp control unit (E2n9) | ||
| 10 | Install in the reverse order |
