Remove/install headlamp control unit - AR82.10-P-4660ECM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic)

MODEL 207, 212 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)

MODEL 207, 212 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)

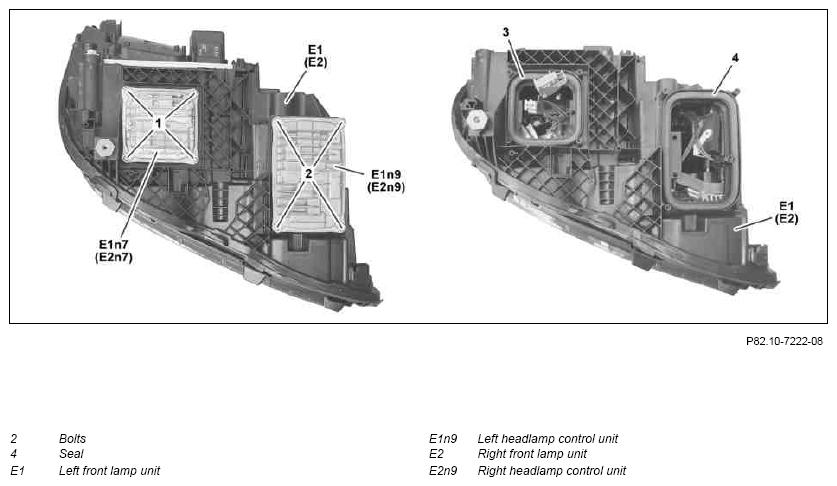

Fig 1: Headlamp Control Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Carry out initial startup of left headlamp control unit (E1n9) or right headlamp control unit (E2n9)	When replacing left headlamp control unit (E1n9) or right headlamp control unit (E2n9).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Remove left front lamp unit (E1) or right front lamp unit (E2)	MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)	AR82.10-P-4730EWM
		MODEL 207 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 207 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 207 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)	AR82.10-P-4730ECM
3	Remove screws/bolts (2) at left headlamp control unit (E1n9) or at right headlamp control unit (E2n9)
4	Pull out left headlamp control unit (E1n9) or right headlamp control unit (E2n9) until electrical connectors can be separated	Ensure the seal (4) is seated correctly on the left front lamp unit (E1) or on the right front lamp unit (E2).
5	Disconnect electrical connectors and remove left headlamp control unit (E1n9) or right headlamp control unit (E2n9)
6	Install in the reverse order
