Remove/install charge air ducts - AR09.41-P-8620ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right and left engine air intake duct upstream of air filter | ||
| 3 | Remove screw/bolt (4) and take out clamp | *BA09.41-P-1006-01R | |
| 4 | Remove screw/bolt (3) | ||
| 5 | Loosen clamps (2) | ||
| 6 | Detach right and left charge air duct (1r, 1l) from turbocharger and charge air cooler | ||

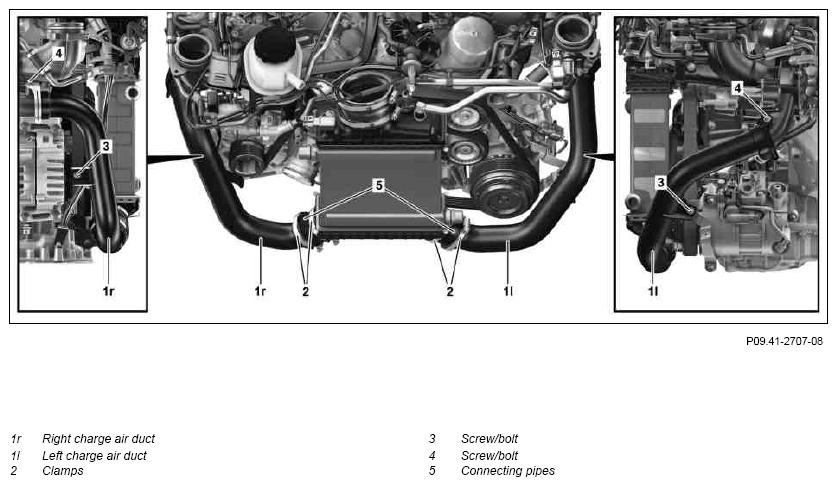

| Figure | |||
| 7 | Remove right and left charge air duct (1r, 1l) from engine compartment | ||
| 8 | Detach connecting pipe (5) from right and left charge air duct (1r, 1l) | When replacing the right and left charge air duct (1r, 1l) | |
| Check | |||
| 9 | Check boots, rubber seal and clamp for damage | ||
| 10 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 276.8 | |
|---|---|---|---|
| BA09.41-P-1006-01R | Screw/bolt, charge air pipe to turbocharger | Nm | 9 |
