Remove/install low temperature water circuit radiator - AR09.41-P-6935ELB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.9
ENGINE 278 in MODEL 207, 212, 218
Shown on model 212.073

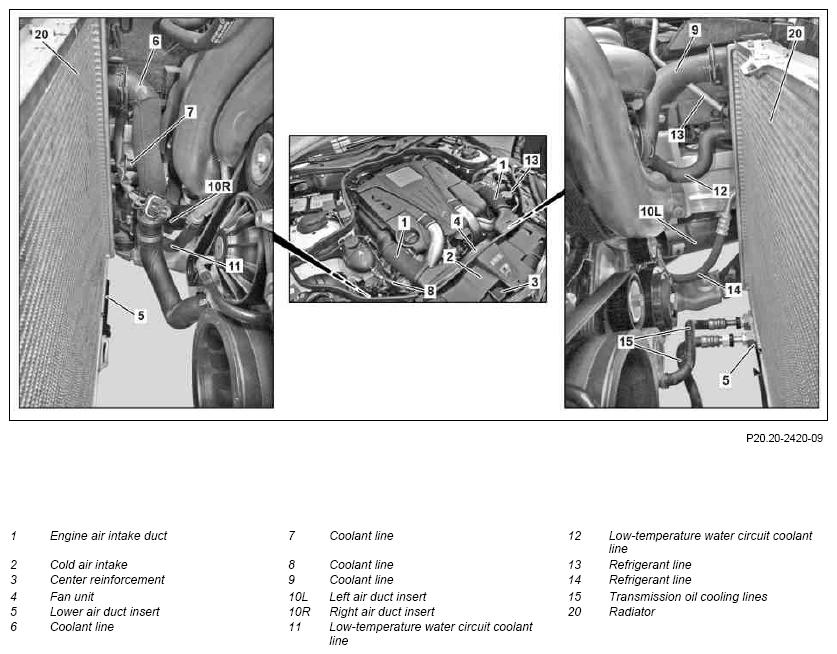

Fig 1: Low Temperature Water Circuit Radiator Remove/Install Components - Shown On Model 212.073 (1 Of 2)
Shown on model 212.073

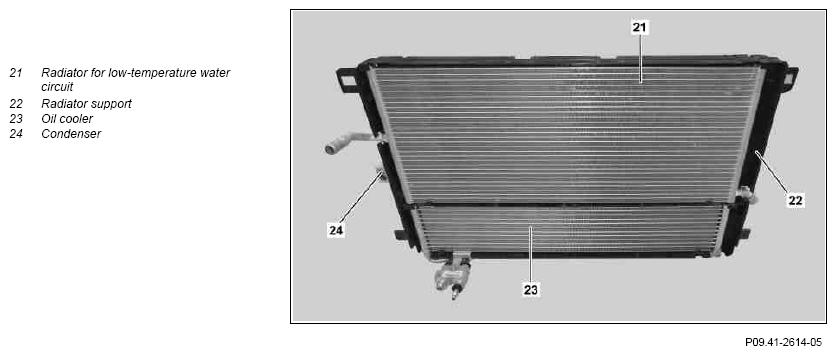

Fig 2: Low Temperature Water Circuit Radiator Remove/Install Components - Shown On Model 212.073 (2 Of 2)
| Remove/install | |||
| 1 | Drain air conditioning system | AR83.30-P-1760CW | |
| 2 | Remove radiator (20) | ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.9 (except 722.93) ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.9 (except 722.97) ENGINE 278 in MODEL 207, 212, 218 | AR20.20-P-3865ELB |
| 3 | Detach Low-temperature water circuit coolant lines (11, 12) at radiator for low-temperature water circuit (21) | ||
| 4 | Detach refrigerant lines (13, 14) for A/C on condenser (24) | ENGINE 157, 278 in MODEL 212, 218 | |
| 5 | Disconnect electrical connection from refrigerant pressure sensor | ENGINE 157, 278 in MODEL 212, 218 | |
| 6 | Disconnect oil lines (15) for automatic transmission on connecting point on oil cooler (23) and close openings and with grommets | ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.9 ENGINE 278 in MODEL 212, 218 with TRANSMISSION 722.9 |
AR27.10-P-0501-03CW |
| Figure | |||
| 7 | Detach engine oil cooler from lower air duct insert (5) and secure against falling down with attached lines outside the working area | ENGINE 157 in MODEL 212, 218 | |
| 8.1 | Remove radiator package downwards | ENGINE 157, 278 in MODEL 212, 218 |
|
| 8.2 | Unclip cooler for low-temperature water circuit (21) from radiator support (22) and remove | ENGINE 278 in MODEL 207 | |
| 9 | Install in the reverse order | ||
| 10 | Check engine cooling system for leaktightness | ENGINE 278 in MODEL 207 | AR20.00-P-1010FH |
| ENGINE 157, 278 in MODEL 212, 218 | AR20.00-P-1010EL | ||
| 11 | Check transmission oil level and correct if necessary | ENGINE 278 in MODEL 212, 218 with TRANSMISSION 722.9 (except 722.96) | AR27.00-P-0270W |
| ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.97 ENGINE 278 in MODEL 212, 218 with TRANSMISSION 722.96 |
AR27.00-P-0270SYZ | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
