Removing/installing drive shaft with K2, front planet carrier, internal plate carrier with K1 and B3 - AR27.50-P-0612W
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9, 724.2
Shown on transmission 722.9
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove output unit | AR27.50-P-0611W | |
Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. |
|||
| 2 | Remove drive shaft (11) | ↓ |
|
| Disassemble/assemble K2 clutch | AR27.51-P-0820W | ||
| 3 | Detach Torlon rings (1a) from drive shaft (11) | ||

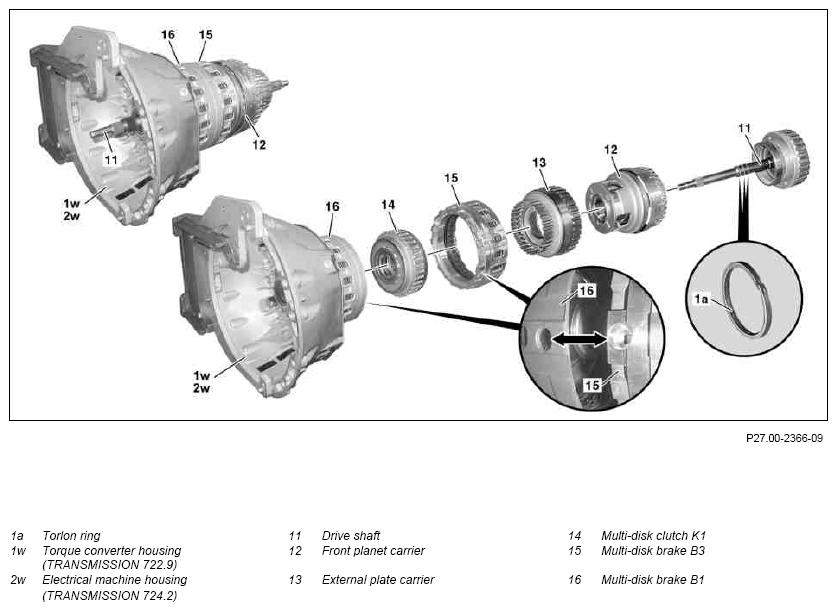

| Fig 2 | |||
| 4 | Remove cylinder flange along with front planet carrier (12) | ||
| 5 | Remove internal plate carrier (13) | ||
| 6 | Remove multidisk brake B3 (15) | According to condition: ↓ |
|
| Disassemble/assemble multi-disk brake B3 | AR27.50-P-0890W | ||
| 7 | Remove multidisk clutch K1 (14) | ↓ |
|
| Dismantling and assembling clutch K1 | AR27.51-P-0800W | ||
| 8 | Install in the reverse order | Otherwise damage can occur during the startup phase when the transmission is being put into service. |
