Dismantling and assembling clutch K1 - AR27.51-P-0800W
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9, 724.2
MODIFICATION NOTES
| 26.8.14 | "Remove main components of the transmission" added. | Operation step 1 | |
| 26.8.14 | "Install main components of the transmission" added. | Operation step 25 |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 | Remove main components of transmission | AR27.50-P-0610W | |
| Disassemble | |||

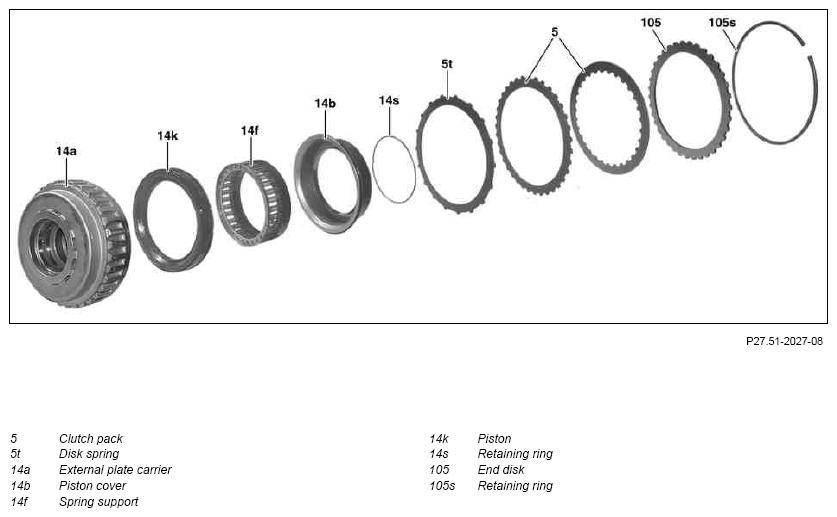

| 2 | Remove retaining ring (105s) and end disk (105) | ||
| 3 | Remove clutch pack (5) and disk spring (5t) | ||
| 4 | Place multidisk clutch in lever press | Workshop press (stationary) | |

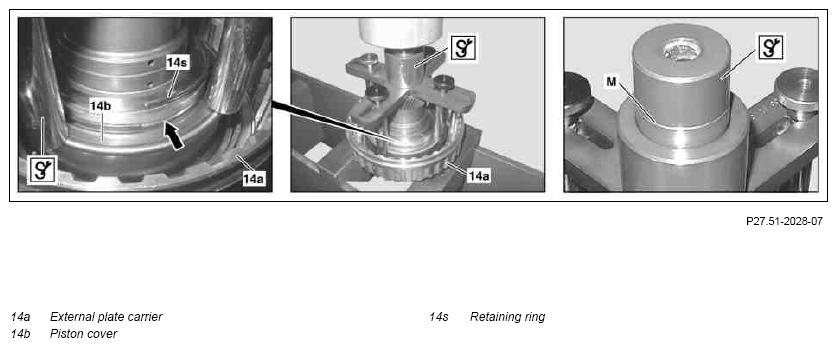

| 5 | Place thrust device on piston cover (14b) | ||
| Figure | |||
Pressing tool |
Figure | ||
Pressing tool |
Figure | ||
| 6 | Actuate lever press until retaining ring (14s) is exposed | Excessive clamping force will damage the plate supports. |
|
| 7 | Remove retaining ring (14s) from groove | ||
| 8 | Move back lever press | ||
| 9 | Take thrust device and multidisk clutch out of lever press | ||
| 10 | Remove retaining ring (14s) and piston cover (14b) | ||
| 11 | Remove spring support (14f) | ||
| 12 | Remove piston (14k) | Check vulcanized seal for damage and wear, if necessary: ↓ Replace piston (14k). |
|
| Assemble | |||
| 13 | Install piston (14k) | ||
| 14 | Insert spring support (14f) | ||
| 15 | Insert piston cover (14b) | ||
| 16 | Fit retaining ring (14s) | ||
| 17 | Place multidisk clutch in lever press | ||
| 18 | Place thrust device on piston cover (14b) | ||
| Figure | |||
Pressing tool |
Figure | ||
Pressing tool |
Figure | ||
| 19 | Actuate lever press until groove (arrow) is exposed, and install retaining ring (14s) | Excess force will otherwise cause damage. |
|
| 20 | Move back lever press | ||
| 21 | Take thrust device and multidisk clutch out of lever press | ||
| 22 | Install disk spring (5t) and disk pack (5) in external plate carrier (14a) | Observe the installation sequence: ↓ Survey of multi-disk components, production details |
|
| TRANSMISSION 722.9 | GF27.51-P-5200W | ||
| 23 | Install end disk (105) and retaining ring (105s) | ||
| Measure | |||
| 24 | Measure and adjust clearance | TRANSMISSION 722.9, 724.2 Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3 | AR27.51-P-7229W |
| Install | |||
| 25 | Install main components of transmission | AR27.50-P-0610W |
