Remove/install K3, rear hollow shaft, rear planet carrier and output shaft - AR27.50-P-0611W
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9, 724.2
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||

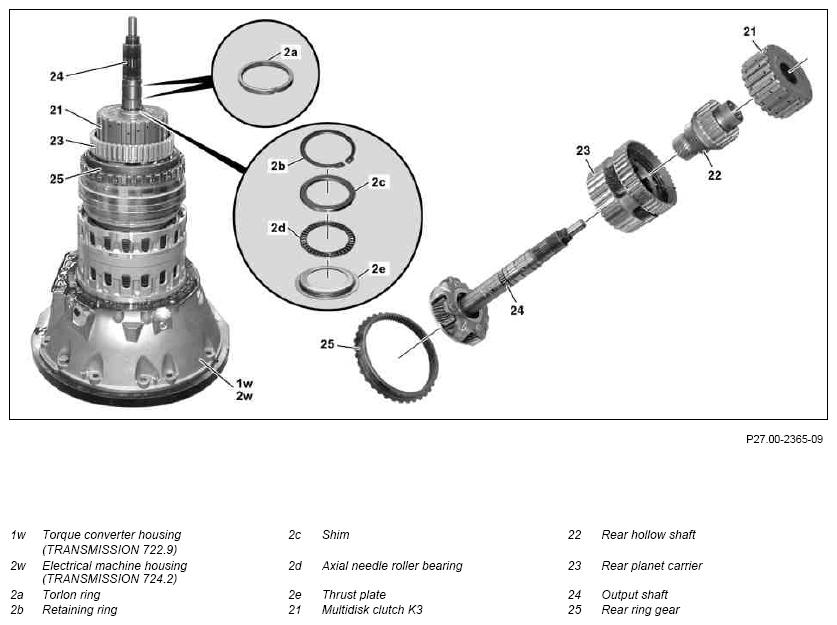

| 1 | Detach transmission housing from torque converter housing (1w) or electrical machine housing (2w) | AR27.50-P-0601W | |

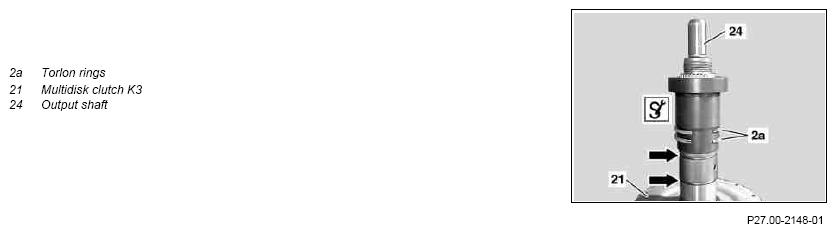

| 2 | Remove Torlon rings (2a) from output shaft (24) | ||
| Fig 3 | |||
| 3 | Remove retaining ring (2b), shim (2c), axial needle roller bearing (2d) and thrust plate (2e) from output shaft (24) | After installing the retaining ring (2b), shim (2c), axial needle roller bearing (2d) and thrust plate (2e), the axial play between the shim (2c) and retaining ring (2b) must be checked: ↓ Check/adjust axial play between shim (2c) and retaining ring (2b) |
|
| AR27.50-P-0810-01A | |||
| Axial play between shim and retaining ring | *BE27.50-P-1005-01A | ||
| 4 | Remove and check multidisk clutch K3 (21) | In case of damage or wear: ↓ Disassemble/assemble K3 clutch |
|
| AR27.51-P-0830W | |||
| 5 | Remove rear hollow shaft (22) from output shaft and check | In case of damage or wear: ↓ Disassemble/assemble rear hollow shaft |
|
| AR27.50-P-0851W | |||
| 6 | Remove output shaft (24) | ||
| 7 | Remove remaining Torlon rings (2a) from output shaft (24) | ||
| Fig 3 | |||
| 8 | Remove retaining ring and detach rear ring gear (25) | Otherwise damage can occur during the startup phase when the transmission is being put into service. |
|
| 9 | Install in the reverse order |
CHECK VALUES FOR GEAR SET
| Number | Designation | TRANSMISSION 722.9 | TRANSMISSION 724.2 | |
|---|---|---|---|---|
| BE27.50-P-1005-01A | Axial play between shim and retaining ring | mm | 0, 15...0, 60 | 0, 15...0, 60 |
