Disassemble/assemble K2 clutch - AR27.51-P-0820W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9, 724.2

MODIFICATION NOTES

26.8.14 "Remove main components of the transmission" added. Operation step 1
26.8.14 "Install main components of the transmission" added. Step 31

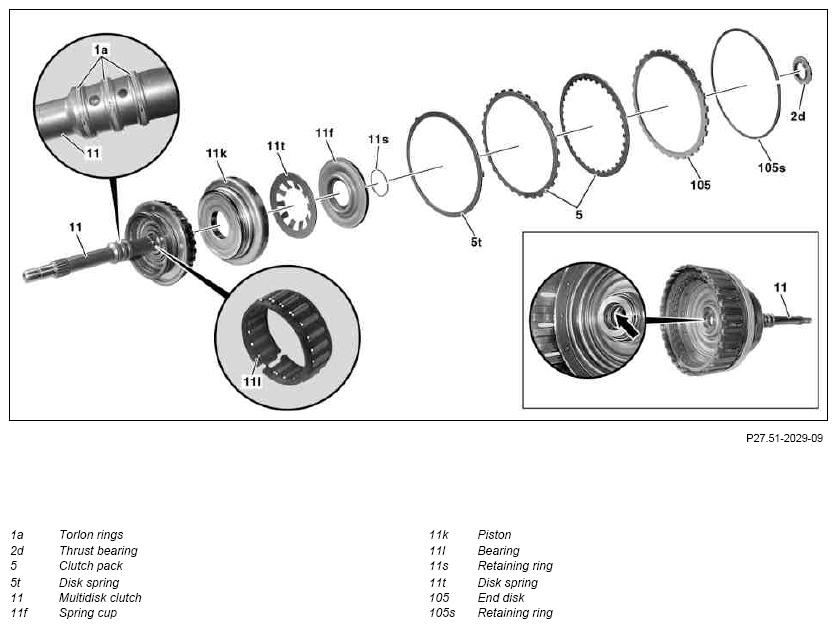

Fig 1: K2 Clutch Components (1 Of 2)
G09975861Courtesy of MERCEDES-BENZ USA
Fig 2: K2 Clutch Components (2 Of 2)
G09975862Courtesy of MERCEDES-BENZ USA
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Remove main components of transmission   AR27.50-P-0610W
DISASSEMBLING Disassemble
2 Remove bearing (11l) IMPORTANT Check the contact surface and bearing (11l) for swirl marks and damage.
3 Remove Torlon rings (1a)
4 Remove thrust bearing (2d) IMPORTANT Check contact surface and radial bearing (see arrow in the first picture) in the output shaft guide for swirl marks and damage.
If necessary:

Replace thrust bearing (2d) and radial bearing.

5 Remove retaining ring (105s) and end disk (105)
6 Remove clutch pack (5) and disk spring (5t) IMPORTANT Check disks for scorch marks and wear.
7 Place multidisk clutch (11) in lever press Workshop press (stationary)
8 Fit assembly device (076) on spring cup (11f) SPECIAL TOOL Assembly device Figure
9 Operate lever press and expose retaining ring groove (104) NOTES Stop lever press stoke as soon as accessibility to groove is sufficient.
Excess force will otherwise cause damage.

10 Remove retaining ring (11s) SPECIAL TOOL Pliers Figure
11 Move back lever press
12 Remove assembly device (076) and multidisk clutch (11) from lever press
13 Remove spring cup (11f)
14 Remove disk spring (11t)
15 Remove piston (11k)
ASSEMBLING Assemble
16 Install piston (11k) IMPORTANT Replace O-ring.
17 Insert disk spring (11t) IMPORTANT Insert the disk spring (11t) in such a way that the curvature of the inner circumference points toward the spring cup (11f).
18 Position spring cup (11f) IMPORTANT Replace seal. The rounded edge of the sealing ring must face outwards.
19 Place multidisk clutch (11) in lever press
20 Fit assembly device (076) on spring cup (11f) SPECIAL TOOL Assembly device Figure
21 Operate lever press and expose retaining ring groove (104) NOTES Position spring cup (11f) exactly.
Otherwise the spring cup (11f) may tilt and malfunctions occur.
NOTES Stop lever press stoke as soon as accessibility to groove is sufficient.
Excess force will otherwise cause damage.

22 Install retaining ring (11s) SPECIAL TOOL Pliers Figure
23 Move back lever press
24 Remove assembly device (076) and multidisk clutch (11) from lever press
25 Install disk spring (5t) and clutch pack (5) IMPORTANT Insert the disk spring (5t) in such a way that the curvature of the inner circumference points toward the piston (11k).
Observe the installation sequence:

Survey of multi-disk components, production details

REFER TO BASIC KNOWLEDGE TRANSMISSION 722.9 GF27.51-P-5200W
26 Install end disk (105) and retaining ring (105s)
MEASURING Measure
27 Measure and adjust clearance TRANSMISSION 722.9, 724.2 Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3 AR27.51-P-7229W
28 Insert thrust bearing (2d)
29 Install Torlon rings (1a) IMPORTANT Replace the Torlon rings (1a).
SPECIAL TOOL Sleeve Figure
30 Install bearing (11l)
INSTALLING Install
31 Install main components of transmission   AR27.50-P-0610W
Fig 3: Identifying Pliers (000 589 52 37 00)
G09975863Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Device (140 589 13 43 00)
G09975864Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Sleeve (722 589 01 14 00)
G09975865Courtesy of MERCEDES-BENZ USA
