Retrofit media interface - AN82.60-P-0016EW

MODEL 212.0## (except 212.007/074/075/076/077/092/095/098) 1# up to 4/12/13, 212.1## (except 212.195) 1# up to4/12/13, 212.2## (except 212.207/274/275/276/277/292/298) 1# up to 4/12/13 up to model year 2014 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 212.0## (except 212.007/074/075/076/077/092/095/098) 1# up to 4/12/13, 212.1## (except 212.195) 1# up to 4/12/13, 212.2## (except 212.207/274/275/276/277/292/298) 1# up to 4/12/13 up to model year 2014 with CODE 511 (Audio 50 APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 212.0## (except 212.007/074/075/076/077/092/095/098) 1# up to 4/12/13, 212.1## (except 212.195) 1# up to 4/12/13, 212.2## (except 212.207/274/275/276/277/292/298) 1# up to 4/12/13 up to model year 2014 with CODE 512 (COMAND APS with DVD changer) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 212.0## (except 212.007/074/075/076/077/092/095/098) 1# up to 4/12/13, 212.1## (except 212.195) 1# up to 4/12/13, 212.2## (except 212.207/274/275/276/277/292/298) 1# up to 4/12/13 up to model year 2014 with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 212.0## (except 212.007/074/075/076/077/092/095/098) 1# up to 4/12/13, 212.1## (except 212.195) 1# up to4/12/13, 212.2## (except 212.207/274/275/276/277/292/298) 1# up to 4/12/13 up to model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version)

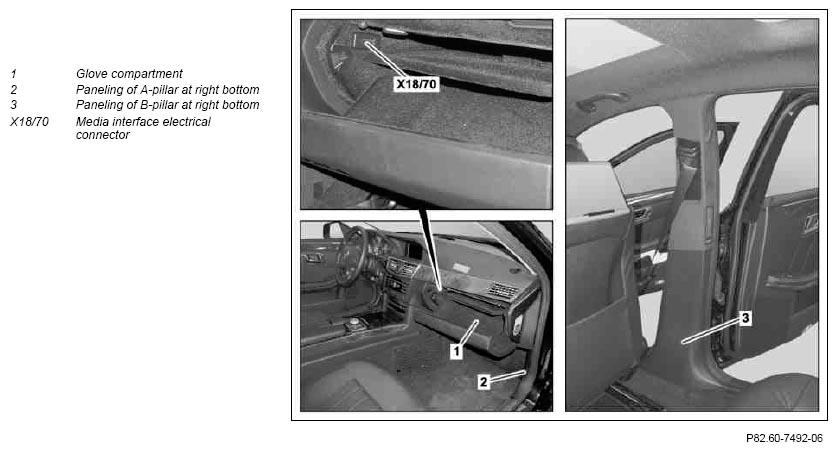

Fig 1: Glove Compartment And A-Pillar Paneling

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove glove box (1)		AR68.10-P-1200EW
2	Remove radio		AR82.60-P-7502EW
3	Remove right front door sill and right rear door sill		AR68.30-P-4100EW
4	Remove paneling of A-pillar at right bottom (2)
5	Remove paneling of B-pillar at right bottom (3)
6.1	Remove right side bolster from rear seat backrest	Vehicles with CODE 287 (Through-loading feature)	AR91.12-P-1710CW
6.2	Remove rear seat backrest	MODEL 212.0/1 without CODE 287 (Throughloading feature) MODEL 212.0/1 without CODE 224 (Design individual rear seat system) MODEL 212.0/1 with CODE 224 (Design individual rear seat system)	AR91.12-P-1620CW AR91.12-P-1620EW
7	Remove side rear side paneling	MODEL 212 MODEL 212.0/1	AR68.30-P-4780CW
9	Remove rear SAM control unit with fuse and relay module and place to one side with electrical lines still connected	Check in the EPC whether the installed rear SAM control unit with fuse and relay module, as specified in the vehicle equipment list, can be used for retrofitting the media interface. If necessary, the rear SAM control unit with fuse and relay module is to be removed and replaced with one compatible with the Media Interface.	AR54.21-P-1258EW
	Install
10	Install optical fiber for Media Oriented System Transport (MOST)	Vehicles without CODE 537 (Digital radio) and without CODE 810 (Sound system) and without CODE 863 (Digital/analog TV tuner)	AN82.61-P-0001-06EW
		Notes on avoiding damage to optical fibers during repair work	AH82.60-P-0001-05AK
	MODEL 212 with CODE 537 (Digital radio) except CODE 810 (Sound system) except CODE 863 (Digital/analog TV tuner) MODEL 212 with CODE 810 (Sound system) except CODE 537 (Digital radio) except CODE 863 (Digital/analog TV tuner) MODEL 212 with CODE 863 (Digital/analog TV tuner) except CODE 537 (Digital radio) except CODE 810 (Sound system)		AN82.61-P-0001-06EWA
11	Prepare media interface power supply wiring harness		AN82.60-P-0016-04EW
	Wiring harness repair kit		Figure
12	Install power supply wiring harness	MODEL 212.0/1 Model 212.2	AN82.60-P-0016-03EW AN82.60-P-0016-03ES
	Wiring harness repair kit		Figure
13	Assemble vehicle	Operation steps 9 to 3.
14	Retrofit media interface control unit	Body Adhesive Spray, LIQUI MOLY LIQUIMATE 8080	AN82.60-P-0016-01EW *BR00.45-Z-1136-02A
15	Install wiring harness with Media Interface electrical connector (X18/70) in glove box (1)	MODEL 212 with CODE 218 (Reversing camera) with CODE 512 (COMAND APS with DVD changer) MODEL 212 with CODE 218 (Reversing camera) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 212 with CODE 510 (Audio 20 with CD changer) or CODE 525 (MB Audio 50 radio) or CODE 511 (Audio 50 APS with DVD changer)	AN82.60-P-0016-02EW
	MODEL 212 with CODE 512 (COMAND APS with DVD changer) except CODE 218 (Reversing camera) MODEL 212 with CODE 527 (COMAND APS with single DVD drive (with navigation)) except CODE 218 (Reversing camera)		AN82.60-P-0016-02EWA
16	Assemble vehicle	Operation steps 2 and 1.
17	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add: CODE 518 (Media Interface)
18	Document retrofitted equipment through VeDoc	Attach note "Media Interface retrofitted as per AN82.60-P-0016EW " under field organization texts to design group 82.
19	Connect Star Diagnosis		AD00.00-P-2000-04A
20	Carry out variant coding with the Diagnosis Assistance System by means of Software Calibration Number (SCN)
21	Disconnect STAR DIAGNOSIS		AD00.00-P-2000-04A
22	Perform function test with an external audio source

Fig 2: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
