Retrofit illuminated door sill molding - AZ82.20-P-0001EA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.### (except 212.147/148/154) 1# Installation of AMG door sill

Routing diagram, shown on model 212.0

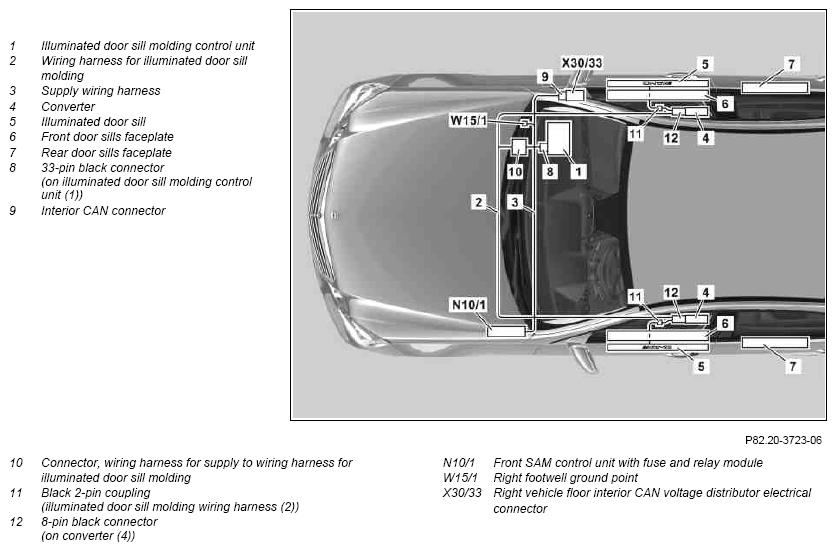

Fig 1: Door Sill Molding Routing Diagram - Shown On Model 212.0
G09977673Courtesy of MERCEDES-BENZ USA

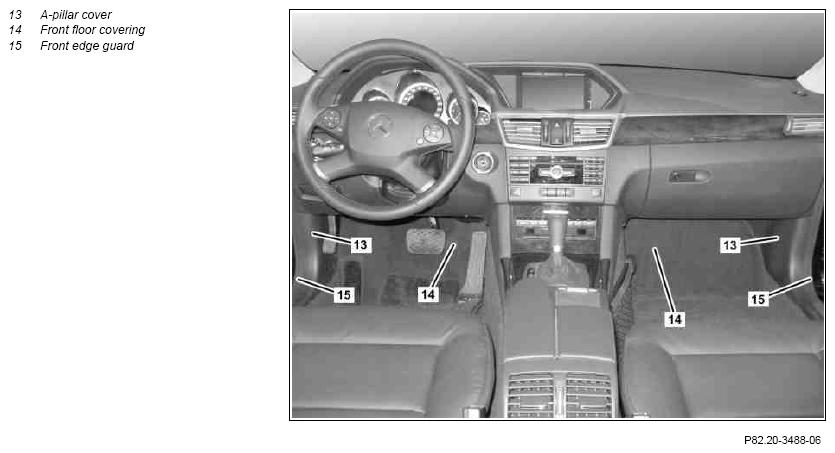

Fig 2: Door Sill Molding Components - Shown On Model 212.0
G09977674Courtesy of MERCEDES-BENZ USA
REMOVING Remove
DANGER Risk of death  caused by contact with parts conducting high voltages. Do not come into contact with parts that are under high voltage. Persons who wear electronic implants (e.g. heart pacemakers) must not  perform any work on such components. AS00.00-Z-0020-01A
NOTES Notes on avoiding damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Move back driver seat and front passenger seat
2 Disconnect battery ground line   AR54.10-P-0003EW
3 Loosen front edge guard (15) in the area of A-pillar cover (13) and in the area of door sill
4 Remove front door sills IMPORTANT Front door sills are no longer required. AR68.30-P-4100EW
5 Remove cover below right dashboard   AR68.10-P-1520CW
6 Remove cover below left of instrument panel
7 Remove left and right A-pillar cover (13)
8 Lay front floor covering (14) in footwell to the back IMPORTANT On the passenger-side lay back the front floor covering (14) until the footrest can be removed. On the driver-side the front floor covering (14) must only be placed to one side in the area of the door sill.
9 Detach footrest in passenger footwell and turn around.
10 Loosen electronic transmission control unit Only models fitted with transmission 722.6.
IMPORTANT Do not disconnect connector from electronic transmission control unit.		 AR27.19-P-1719EW
11 Loosen front SAM control unit with fuse and relay module (N10/1) and place to one side   AR54.21-P-1260CW
INSTALLING Install
12 Retrofit wiring harness for illuminated door sill molding (2) and wiring harness for supply (3)   AZ82.20-P-0001-04EA
SPECIAL TOOL Crimp pliers Fig 3
13 Retrofit illuminated door sill molding control unit (1)   AZ82.20-P-0001-05EA
Terson double-sided adhesive tape *BR00.45-Z-1075-02A
14 Install remaining parts IMPORTANT Operation steps 11 to 5 and 3 to 1.
15 Install illuminated door sill moldings (5)   AZ82.20-P-0001-01EA
16 Carry out function check for illuminated door sill molding (5) IMPORTANT The illuminated door sill molding (5) is activated by opening the front door. The illuminated door sill molding (5) switches off after approx. 5 minutes when the door is open.
Fig 3: Identifying Crimp Pliers (220 589 01 99 10)
G09977675Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1075-02A Terson double-sided adhesive tape
For bonding trim strips and emblems (UV-resistant and weatherproof, black)
(Width: 12 mm) Order no.: 107.64 A
(Width: 19 mm) Order no.: 107.96 K
(Width: 25 mm) Order no.: 117.05 Y		 -
PARTS ORDERING NOTES

Part no. Designation Quantity
B6 602 10 68 Illuminated door sill moldings with "AMG" lettering 1
