Remove/install electronic transmission control (ETC) control unit - AR27.19-P-1719EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6 in MODEL 212
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Move the front passenger seat into the rearmost position | ||

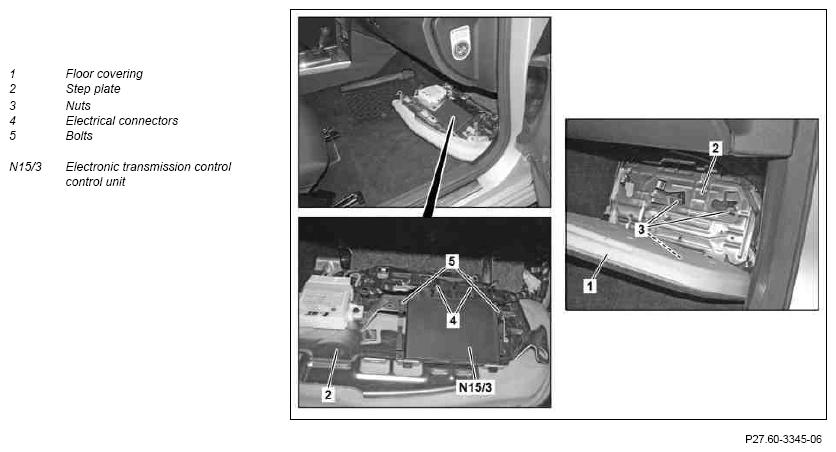

| 3 | Fold back floor covering (1) in front passenger footwell | ||
| 4 | Unscrew nuts (3) and fold step plate (2) backwards | ||
| 5 | Remove screw/bolts (5) | ||
| 6 | Remove electronic transmission control unit (N15/3) from step plate (2) | ||
| 7 | Disconnect electrical connections (4) | ||
| 8 | Install in the reverse order | ||
| 9 | Commission electronic transmission control unit (N15/3) When replacing the electronic transmission control unit (N15/3) | ||
| AD00.00-P-2000-04A | |||
| 10 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A |
