Remove/install fuel pump - AR47.20-P-5710EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642, 651 in MODEL 212, 218

MODIFICATION NOTES

23.4.14 Routing of the fuel lines in the equipment damage notes has been changed. Operation step 8

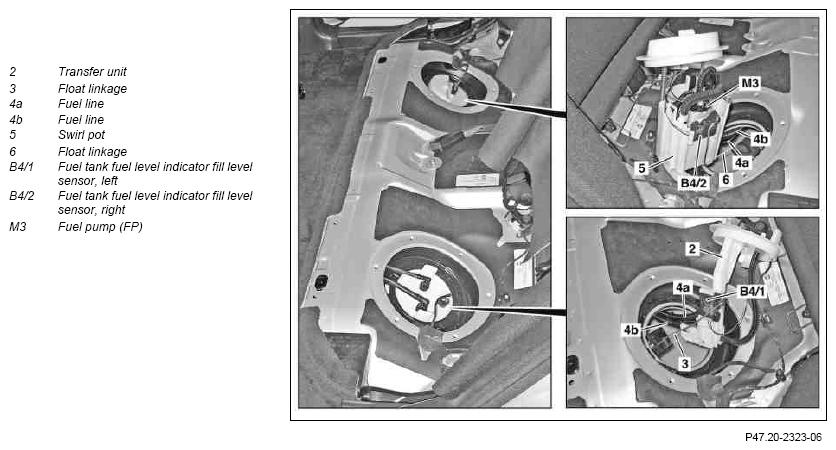

Fig 1: Fuel Pump Remove/Install Components (1 Of 2)
G09976833Courtesy of MERCEDES-BENZ USA

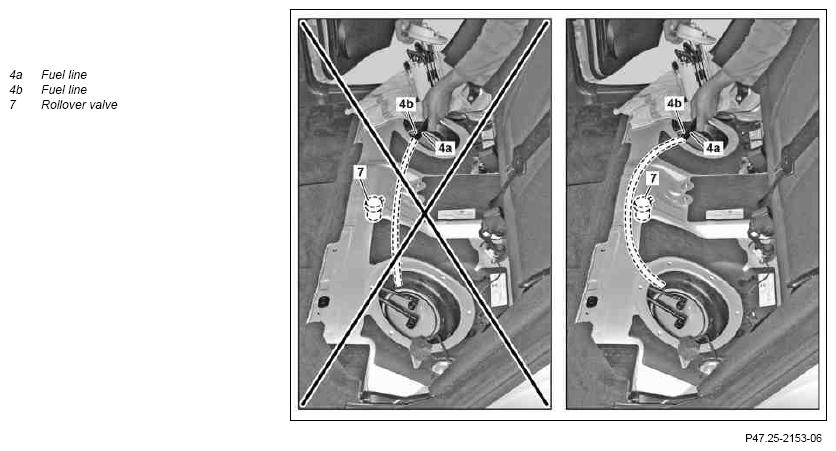

Fig 2: Fuel Pump Remove/Install Components (2 Of 2)
G09976834Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Check fuel level NOTES The fuel tank may only be filled to a maximum of 25%.
Fuel can escape otherwise.
Drain fuel tank if necessary: ↓
Drain fuel tank

AR47.10-P-4001EW
2 Open fuel filler flap and open tank cap and reseal IMPORTANT in order to reduce pressure in the fuel tank.
3 Remove rear seat cushion MODEL 218.9 with ENGINE 642, 651 AR91.12-P-1020ELX
MODEL 212 with ENGINE 642, 651 without CODE 224 (Rear individual seat design) AR91.12-P-1020CW
MODEL 212.0 with ENGINE 642, 651 with CODE 224 (Rear individual seat design) AR91.12-P-1020EW
MODEL 218.3 with ENGINE 642, 651 AR91.12-P-1020EL
4 Remove cover for service openings   AR47.10-P-4100-02EW
TORQUE SPECIFICATION Screw/bolt, cover to vehicle floor *BA47.10-P-1005-01M
5 Remove locking rings   AR47.10-P-4100-02EWA
IMPORTANT Follow the work instruction exactly.
Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00 *BR00.45-Z-1002-06A
SPECIAL TOOL Claw-type wrench Figure
6 Pull transfer unit (2) out of left chamber of the fuel tank NOTES Handle transfer unit (2) and LH fuel tank fuel level indicator fill level sensor (B4/1) carefully. This serves to prevent deformation of the float linkage (3).
NOTES Collect dripping fuel with an absorbent rag. In this way damage to and soiling of the vehicle are avoided.
INSTALLATION IMPORTANT Do not kink, crush or twist fuel lines (4a, 4b) and do not route in tight radii.
Fuel lines (4a, 4b) should not have any loops, indentations or damage.

7 Remove fuel lines (4a, 4b) at transfer unit (2)   AR47.20-P-5510-01EW
8 Remove swirl pot (5), fuel pump (M3) and fuel lines (4a, 4b) out of right chamber of the fuel tank NOTES Handle RH fuel level indicator fuel tank fill level sensor (B4/2) carefully.
This serves to prevent deformation of the float linkage (6).
NOTES Collect dripping fuel with an absorbent rag. In this way damage to and soiling of the vehicle are avoided.
INSTALLATION NOTES
The fuel lines (4a, 4b) must, seen in the direction of travel, be routed in front of the rollover valve (7) mounted in front of the fuel tank.
Free of tension assembly of the transfer unit (2) will not be possible otherwise.
INSTALLATION IMPORTANT Do not kink, crush or twist fuel lines (4a, 4b) and do not route in tight radii.
Fuel lines (4a, 4b) should not have any loops, indentations or damage.

9 Mount RH fuel level indicator fuel tank fill level sensor (B4/2) on new swirl pot (5) When replacing fuel pump (M3)
AR47.10-P-7000EWA
10 Install in the reverse order
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
11 Carry out an engine test run and check fuel system for leaktightness
FUEL TANK

Number Designation MODEL 212 MODEL 218
BA47.10-P-1005-01M Screw/bolt, cover to vehicle floor Nm 3 3
Fig 3: Identifying Claw-Type Wrench (001 589 00 07 00)
G09976835Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00 A 000 989 01 60
