Open, close latch - AR47.10-P-4100-02EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218 Cover of service openings
FUEL TANK
| Number | Designation | Model 212 | Model 218 | |
|---|---|---|---|---|
| BA47.10-P-1005-01M | Bolt, cover to vehicle floor | Nm | 3 | 3 |

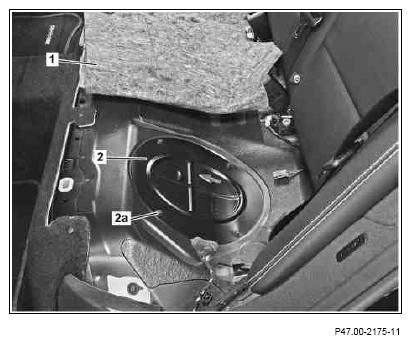

- Hammer back insulation mat (1) or remove it.
- Remove bolts (2a) on the respective cover (2) and remove cover (2) for service opening.
Observe maximum bolt length of 10 mm. Leaks can occur on the fuel tank when using longer bolts.
The impressed arrow on the cover (2) must point in the direction of travel. Observe tightening torque
.
- Install in the reverse order.
