Remove/install transmission with torque converter - AR27.10-P-0500EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.6 in MODEL 212

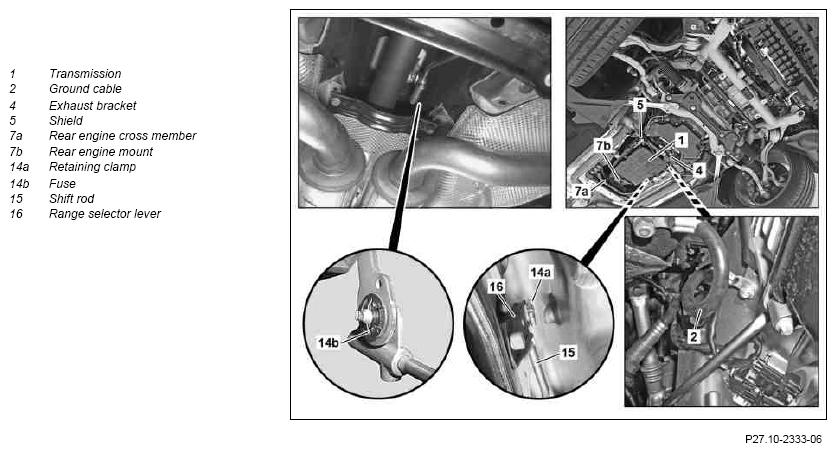

Fig 1: Transmission With Torque Converter Remove/Install Components (1 Of 2)
G09975684Courtesy of MERCEDES-BENZ USA

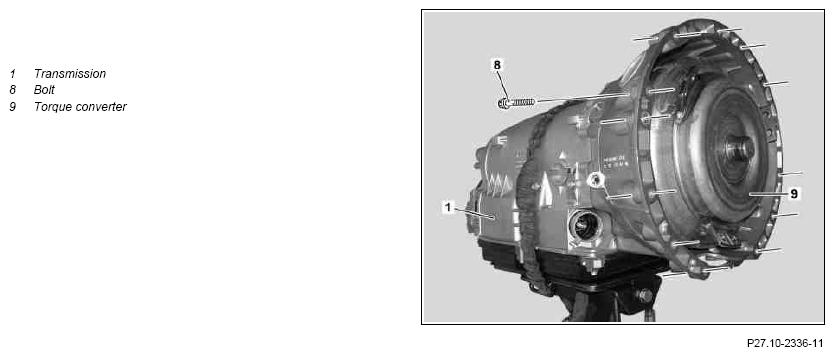

Fig 2: Transmission With Torque Converter Remove/Install Components (2 Of 2)
G09975685Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
1 Move selector lever into position "N"
2 Release parking brake
3 Detach ground line from battery   AR54.10-P-0003EW
NOTES Notes on battery AH54.10-P-0001-01A
4 Secure vehicle on vehicle lift   AR00.60-P-0100EWS
5 Remove lower engine compartment paneling or bottom sections of soundproofing Vehicles with gasoline engine AR61.20-P-1105EW
Vehicles with diesel engine AR94.30-P-5300EW
6 Remove shield (5) and detach electrical connection from electric controller unit   AR27.40-P-0700-01EW
TORQUE SPECIFICATION Bolt, heat shield to transmission housing *BA27.40-P-1014-01A
7 Remove oil filler pipe   AR27.10-P-0500-04V
NOTES Before starting work the area surrounding the oil cooler lines must be thoroughly cleaned in the area around the separation points on the transmission (1).
Otherwise, even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the transmission (1).
TORQUE SPECIFICATION Bolt, automatic transmission to engine *BA27.40-P-1008-01A
TORQUE SPECIFICATION Bolt, oil filler pipe to cylinder head *BA27.10-P-1003-03A
TORQUE SPECIFICATION Bolt, oil filler pipe to transmission housing *BA27.10-P-1004-03A
8 Remove diesel particulate filter bracket to transmission (1) TORQUE SPECIFICATION Bolt/nut, bracket of diesel particulate filter to lower diesel particulate filter *BA49.10-P-1009-01AE
TORQUE SPECIFICATION Bolt, bracket to transmission *BA49.10-P-1011-01AE
9 Detach ground line (2) from transmission (1)
10 Detach shift rod (15) at range selector lever (16) of transmission (1) INSTALLATION IMPORTANT Replace retaining clamp (14a).
11 Detach oil cooling lines from transmission (1) and engine oil pan, and place to one side   AR27.55-P-0600EW
NOTES Do not bend or kink oil cooling lines.
Otherwise the oil line could be damaged.
IMPORTANT Seal connections on transmission (1) and at the oil cooling lines using stop plugs.
SPECIAL TOOL Record plug Figure
12 Detach torque converter (9) from driven plate and pry off driven plate uniformly using long wedge   AR27.20-P-0100-01VA
NOTES Do not use an impact wrench or compressed air tool.
Otherwise the threaded unions of the driven plate may be damaged.
TORQUE SPECIFICATION Bolt, torque converter to driver spider *BA27.20-P-1002-01C
SPECIAL TOOL Counterholder Fig 3
SPECIAL TOOL Socket wrench bit Figure
SPECIAL TOOL Long wedge Figure
13 Support and lash down transmission (1)
14 Remove rear engine cross member (7a) with rear engine mount (7b)   AR22.10-P-1180CW
NOTES Notes on bolted connections with self tapping screws AH00.00-P-0007-01SF
15 Remove front flexible coupling from transmission (1)   AR41.10-P-0050EW
16 Remove bolts (8) and remove transmission (1) downwards NOTES Secure torque converter (9) to prevent it from falling out.
Otherwise the torque converter may be damaged.
INSTALLATION IMPORTANT Align the threaded holes of the torque converter (9) and holes of the driven plate with each other.
TORQUE SPECIFICATION Bolt, automatic transmission to engine *BA27.40-P-1008-01A
17 Remove torque converter (9) INSTALLATION IMPORTANT Grease crankshaft bearing journals with multipurpose paste.
Multi-purpose paste *BR00.45-Z-1009-06A
SPECIAL TOOL Handles Figure
INSPECT Check
18 Check tapped holes in torque converter (9) IMPORTANT Check tapped holes for damage and replace torque converter (9) if necessary.
19 Install in the reverse order
20 Perform basic programming
21 Check oil level in transmission (1) and correct, if necessary   AR27.00-P-0100AC
22 Read out fault memory with STAR DIAGNOSIS and erase if necessary
23 Perform transmission adaptation with STAR DIAGNOSIS IMPORTANT A transmission adaptation must be carried out after exchanging or repairing the transmission (1).
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
24 Perform engine test run and check transmission (1) for proper operation and leaktightness
OIL PAN, AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 722.6 except 722.628/648/649
BA27.10-P-1003-03A Bolt, oil filler pipe to cylinder head Nm 8
OIL PAN, AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 722.6 except 722.628/648/649
BA27.10-P-1004-03A Bolt, oil filler pipe to transmission housing Nm 8
TORQUE CONVERTER

Number Designation TRANSMISSION 722.6 (except 722.648)
BA27.20-P-1002-01C Bolt, torque converter to driver spider Straight threaded connection M8 Nm 42
Angled threaded connection Stage 1 Nm 4
Stage 2 Nm 30
Stage 3 ∠° 90
HOUSING

Number Designation TRANSMISSION 722.6 (except 722.660/661/662/663/666/673/674)
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10X40 Nm 39
M10X45 Nm -
M10X90 Nm 39
M12 Nm -
HOUSING

Number Designation TRANSMISSION 722.6 (except 722.660/661/662/663/666/673/674)
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 11
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 642, 651 in MODEL 212
BA49.10-P-1009-01AE Bolt/nut, bracket of diesel particulate filter to lower diesel particulate filter Nm - 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 157, 271, 272, 273, 276, 278 in MODEL 212 ENGINE 642, 651 in MODEL 212
BA49.10-P-1011-01AE Bolt, bracket to transmission Nm 39 39
Fig 3: Identifying Counterholder (651 589 00 40 00)
G09975686Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Long Wedge (115 589 03 59 00)
G09975687Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Socket Wrench Bit (001 589 65 09 00)
G09975688Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Handles (168 589 00 62 00)
G09975689Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Record Plug (129 589 00 91 00)
G09975690Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1009-06A Multi-purpose paste A 000 989 80 51 10
