Remove/install electrohydraulic controller unit (transmission installed) - AR27.19-P-0200EH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 724.2

Shown on transmission 724.2 in model 212.054

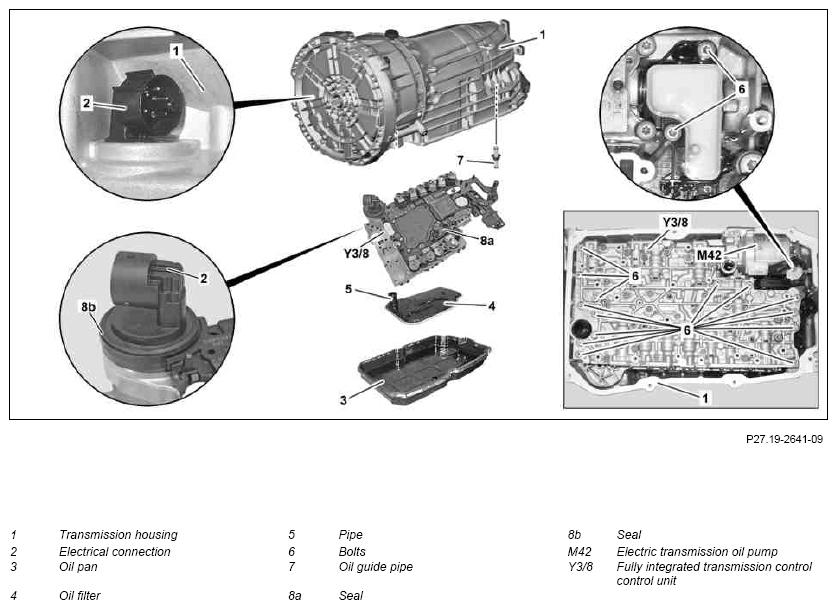

Fig 1: Electrohydraulic Controller Unit Components (Transmission Installed)
G09975713DANGERDANGERNOTESNOTESNOTESIMPORTANTIMPORTANTREMOVINGINSTALLINGTORQUE SPECIFICATIONCLEANINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTNOTESIMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONIMPORTANTREFER TO SELF-DIAGNOSTIC SYSTEMSREFER TO SELF-DIAGNOSTIC SYSTEMSDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
IMPORTANT Evaluation of high-voltage components   AH54.00-P-6500-01SXH
REMOVINGINSTALLING Remove/install
1 Switch off ignition and remove transmitter key
2.1 Remove corresponding lower engine compartment paneling and its bracket from under the transmission TRANSMISSION 724.2 in MODEL 205, 222
TRANSMISSION 724.2 in MODEL 212 with ENGINE 276

TRANSMISSION 724.2 in MODEL 205 AR61.20-P-1105LW
TRANSMISSION 724.2 in MODEL 212 with ENGINE 276 AR61.20-P-1105EW
TRANSMISSION 724.2 in MODEL 222 AR61.20-P-1105LF
2.2 Remove corresponding bottom section of soundproofing TRANSMISSION 724.2 in MODEL 212 with ENGINE 651
AR94.30-P-5300EW
3 Remove heat shield from transmission TRANSMISSION 724.2 in MODEL 205, 222 AR27.40-P-0700-01LF
TRANSMISSION 724.2 in MODEL 212 AR27.40-P-0700-01EW
TORQUE SPECIFICATION Bolt, heat shield to sprag *BA27.10-P-1013-04G
CLEAN Clean
4 Clean oil pan (3) and surrounding area
5 Remove oil pan (3)   AR27.10-P-7030EH
6 Remove oil filter (4) INSTALLATION IMPORTANT Replace oil filter (4) and pipe (5).
TORQUE SPECIFICATION Bolt, oil filter to electrohydraulic controller unit *BA27.10-P-1015-04G
7 Remove electric transmission oil pump (M42)   AR27.30-P-0651EH
8 Connect transmission connector to electrical connection (2) INSTALLATION IMPORTANT Clean transmission connector and electrical connection (2).
9 Unscrew screws/bolts (6) and remove fully integrated transmission control controller unit (Y3/8) from transmission housing (1) NOTES When prying off a tightly fixed fully integrated transmission control controller unit (Y3/8), cover the sealing surfaces on transmission housing (1).
The sealing surfaces on the transmission housing can be damaged otherwise.
IMPORTANT Pry off tightly fixed fully integrated transmission control controller unit (Y3/8) carefully using a suitable tool.
INSTALLATION IMPORTANT Replace screws/bolts (6) and oil guide pipe (7).
Check that the seal (8a) is seated correctly. Check that the seal (8b) is in good condition and seated correctly; replace if necessary. Insert oil guide pipe (7) into the transmission housing (1) before installing the fully integrated transmission control controller unit (Y3/8).

TORQUE SPECIFICATION Bolt, electrohydraulic controller unit to transmission housing
If the fully integrated transmission control controller unit (Y3/8) is stuck:

Carefully pry off the fully integrated transmission control controller unit (Y3/8) using a suitable tool
*BA27.19-P-1001-01C
10 Install in the reverse order IMPORTANT Shift through the gears of the transmission a few times before putting into service in order to flush any air pockets out of the fully integrated transmission control controller unit (Y3/8).
11 Connect diagnostic system, read out fault memory and clear
REFER TO SELF-DIAGNOSTIC SYSTEMS MODEL 205, 222 with TRANSMISSION 724.2 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS MODEL 212 with TRANSMISSION 724.2 AD00.00-P-2000-04A
12 Perform transmission adaptation After replacement or repair of transmission
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
13 Test run engine and check transmission for leaktightness and proper operation
COMPLETE AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 724.2
BA27.10-P-1013-04G Bolt, heat shield to sprag Nm 9
COMPLETE AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 724.2
BA27.10-P-1015-04G Bolt, oil filter to electrohydraulic controller unit Nm 9
ELECTROHYDRAULIC CONTROLLER UNIT

Number Designation TRANSMISSION 724.2
BA27.19-P-1001-01C Bolt, electrohydraulic controller unit to transmission housing Stage 1 Nm 4
Stage 2 ∠° 90
