Remove/install auxiliary oil pump for automatic transmission - AR27.30-P-0651EH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 724.2
Shown on MODEL 212.098
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on the voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Remove/install | |||

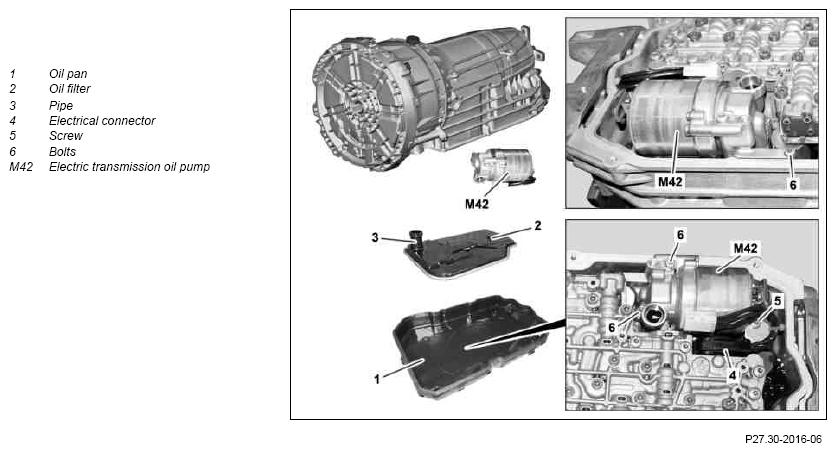

| 1 | Remove oil pan (1) | AR27.10-P-7030EH | |
Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. |
|||
| 2 | Remove oil filter (2) | ||
| *BA27.10-P-1015-04G | |||
| 3 | Disconnect electrical connection (4) | ||
| 4 | Remove screw/bolt (5) | ||
| *BA27.19-P-1004-01C | |||
| 5 | Unscrew screws/bolts (6) and remove the electrical transmission oil pump (M42) | *BA27.19-P-1003-01C | |
| 6 | Install in the reverse order | ||
| 7 | Fill transmission with transmission fluid | AR27.00-P-0270EH | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Test run engine and check transmission for leaktightness and proper operation |
COMPLETE AUTOMATIC TRANSMISSION
| Number | Designation | TRANSMISSION 724.2 | |
|---|---|---|---|
| BA27.10-P-1015-04G | Bolt, oil filter to electrohydraulic controller unit | Nm | 9 |
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | TRANSMISSION 724.2 | |
|---|---|---|---|
| BA27.19-P-1003-01C | Bolt, transmission oil auxiliary pump to park pawl actuator | Nm | 4 |
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | TRANSMISSION 724.2 | ||
|---|---|---|---|---|
| BA27.19-P-1004-01C | Bolt, transmission oil auxiliary pump to transmission housing | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 90 | ||
