Remove/install automatic transmission oil pan - AR27.10-P-7030EH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 724.2

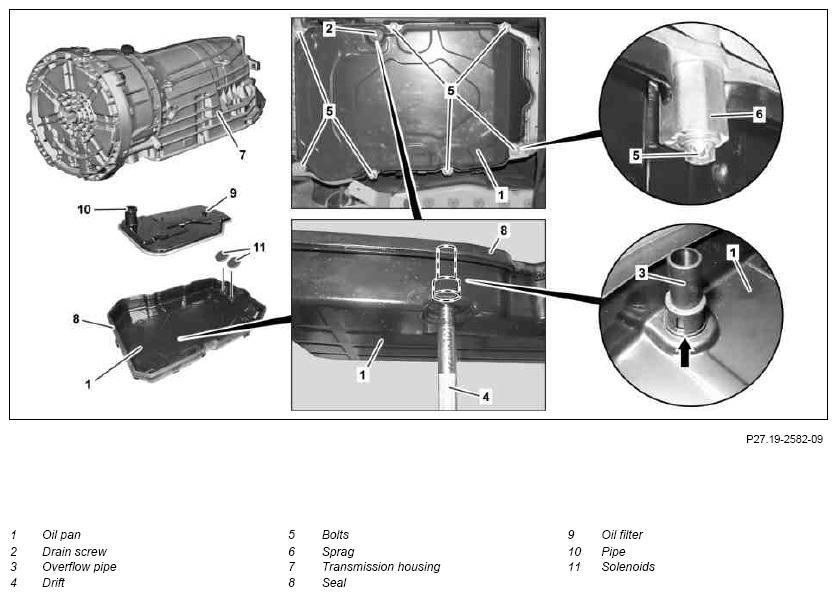

Fig 1: Automatic Transmission Oil Pan Remove/Install Components
G09975705DANGERDANGERNOTESNOTESIMPORTANTIMPORTANTREMOVINGINSTALLINGCLEANIMPORTANTSPECIAL TOOLINSTALLATION IMPORTANTSPECIAL TOOLINSTALLATION IMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTINSTALLATION IMPORTANTINSTALLATION IMPORTANTTORQUE SPECIFICATIONCLEANNOTESIMPORTANTINSPECTDANGERCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  when touching component on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
IMPORTANT Evaluation of high-voltage components   AH54.00-P-6500-01SXH
REMOVINGINSTALLING Remove/install
1 Raise vehicle with vehicle lift
2.1 Remove corresponding lower engine compartment paneling and its bracket from under the transmission TRANSMISSION 724.2 in MODEL 205, 222
TRANSMISSION 724.2 in MODEL 212 with ENGINE 276
TRANSMISSION 724.2 in MODEL 205 AR61.20-P-1105LW
TRANSMISSION 724.2 in MODEL 222 AR61.20-P-1105LF
TRANSMISSION 724.2 in MODEL 212 with ENGINE 276 AR61.20-P-1105EW
2.2 Remove corresponding bottom section of soundproofing TRANSMISSION 724.2 in MODEL 212 with ENGINE 651
AR94.30-P-5300EW
3 Support transmission TRANSMISSION 724.2 in MODEL 222
4 Remove rear engine cross member with rear engine mount TRANSMISSION 724.2 in MODEL 222
TRANSMISSION 724.2 in MODEL 222 with ENGINE 651 AR22.10-P-1180OLF
TRANSMISSION 724.2 in MODEL 222 with ENGINE 276.9 AR22.10-P-1180LF
CLEAN Clean
5 Clean oil pan (1) and surrounding area thoroughly
6 Shift telescopic lifter to rear TRANSMISSION 724.2 in MODEL 222
7 Drain the transmission oil and collect for determining the quantity of transmission IMPORTANT Unscrew drain screw (2) and pry off overflow pipe (3) using SPECIAL TOOL drift (4) from base (arrow). The remaining transmission oil drains out immediately after prying off.
INSTALLATION IMPORTANT Drain screw (2) is screwed in after transmission has been filled.
SPECIAL TOOL Drift Fig 2
8 Remove bolts (5), remove sprag (6) and detach oil pan (1) from transmission housing (7) INSTALLATION IMPORTANT The sprags (6) are approved only for transmission 724.2 and must not be interchanged with sprags (6) of other transmissions.
Otherwise contact corrosion may occur.
INSTALLATION IMPORTANT Replace bolts (5).
TORQUE SPECIFICATION Screw/bolt, oil pan to transmission housing *BA27.10-P-1002-03D
9 Remove overflow pipe (3) from oil pan (1) INSTALLATION IMPORTANT Replace overflow pipe (3) and press firmly onto the base (arrow).
The distance from the upper edge of the overflow pipe (3) determines the filling capacity of the transmission.
10 Remove gasket (8) INSTALLATION IMPORTANT Always replace seal (8).
Do not apply any sealant or sealing compound to the sealing surfaces of the oil pan (1) and transmission housing (7).
11 Remove oil filter (9) INSTALLATION IMPORTANT Replace oil filter (9) and pipe (10).
TORQUE SPECIFICATION Bolt, oil filter to electrohydraulic controller unit *BA27.10-P-1015-04G
CLEAN Clean
12 Remove magnets (11) from oil pan (1) and clean them
13 Clean oil pan (1) NOTES The sealing surfaces on the oil pan (1) and transmission housing (7) must be completely free from oil and grease.
Leaks can occur otherwise.
IMPORTANT Have the cleaning sprays completely extracted.
INSPECT Check
14 Check magnets (11) If damage is present:
↓
Install new magnets (11).
15 Install in the reverse order
16 Fill transmission with transmission fluid   AR27.00-P-0270EH
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
17 Test run engine and check transmission for leaktightness and proper operation
OIL PAN, AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 724.2
BA27.10-P-1002-03D Screw/bolt, oil pan to transmission housing Stage 1 Nm 4
Stage 2 ∠° 180
COMPLETE AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 724.2
BA27.10-P-1015-04G Bolt, oil filter to electrohydraulic controller unit Nm 9
Fig 2: Identifying Drift (722 589 03 15 00)
G09975706Courtesy of MERCEDES-BENZ USA
