Disassemble/assemble transmission housing - AR27.40-P-0510EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 725.0
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| Disassemble/assemble | |||
| 1 | Remove transmission housing from torque converter housing | AR27.50-P-0601EWM | |

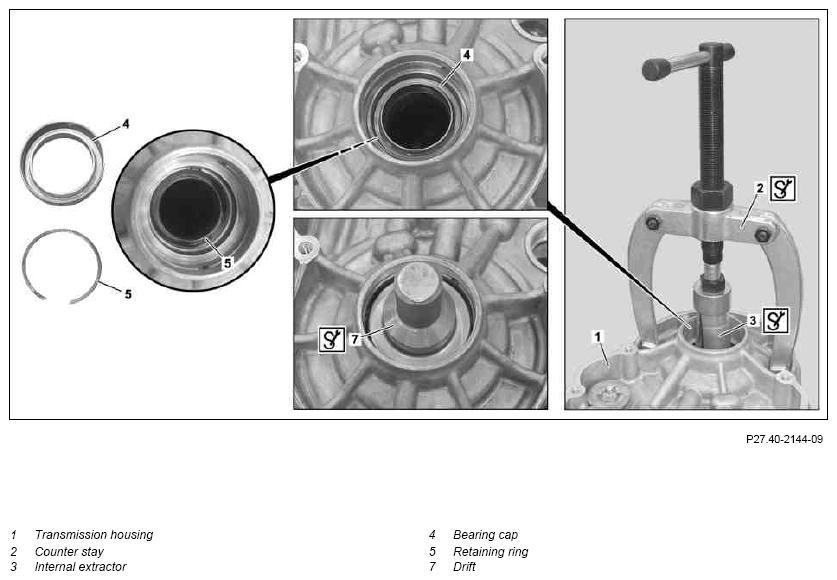

| 2 | Remove bearing cap (4) from transmission housing (1) | ||
| Fig 5 | |||
| Fig 4 | |||
| Figure | |||
| 3 | Remove circlip (5) | ||

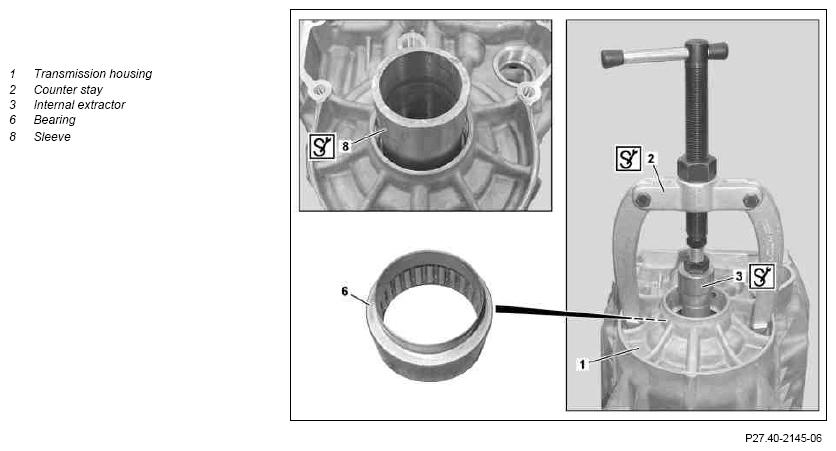

| 4 | Remove bearing (6) | ||
| Fig 5 | |||
| Fig 4 | |||
If the bearing (6) is replaced, ↓ the output shaft with park pawl gear and multidisk clutch K27 must be replaced. |
Fig 3 | ||
| AR27.50-P-0614EWM | |||
| 5 | Remove park pawl mechanism | AR27.60-P-0950EWM | |
| 6 | Remove multidisk brake B05 and multidisk brake B06 | AR27.50-P-0616EWM | |
| 7 | Assemble in the reverse order |
