Remove/install multidisk brake B05 and multidisk brake B06 - AR27.50-P-0616EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

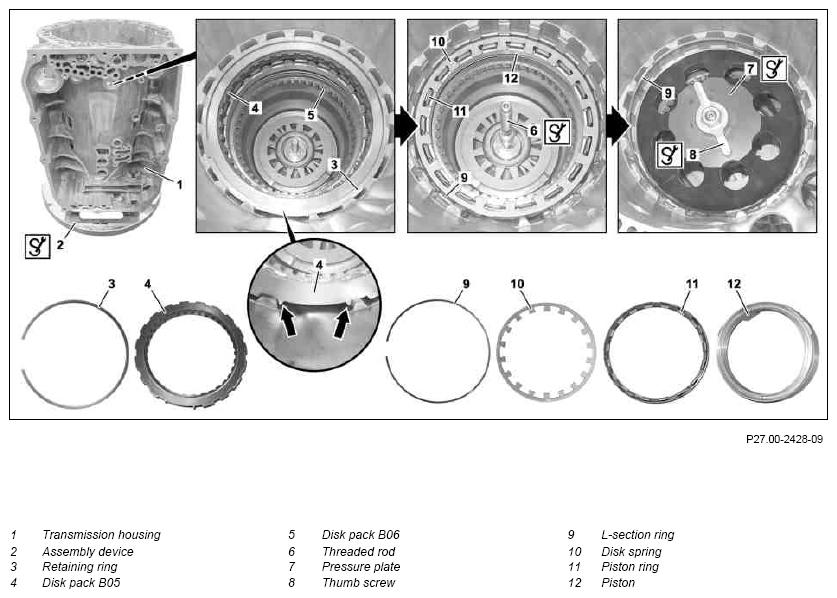

Fig 1: Multidisk Brake B05 And B06 Components (1 Of 4)
G09975804Courtesy of MERCEDES-BENZ USA

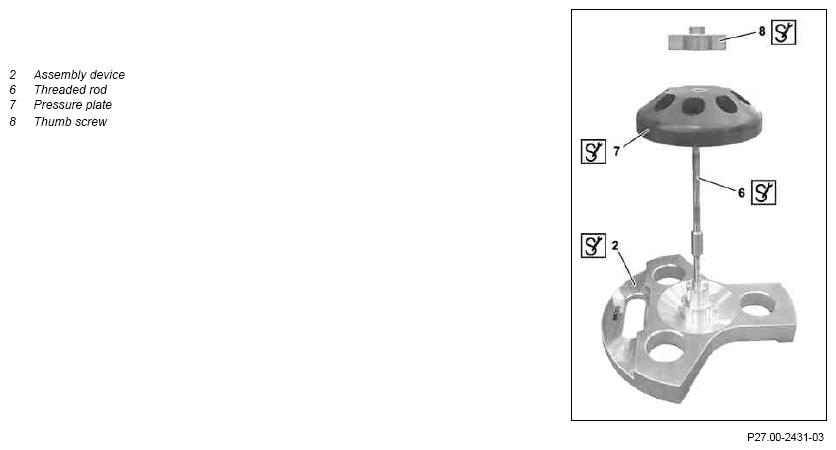

Fig 2: Multidisk Brake B05 And B06 Components (2 Of 4)
G09975805Courtesy of MERCEDES-BENZ USA

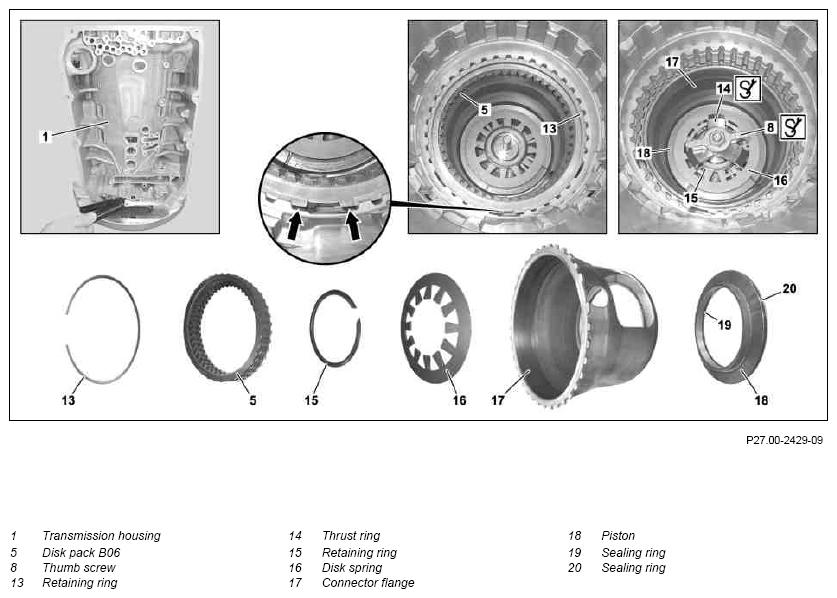

Fig 3: Multidisk Brake B05 And B06 Components (3 Of 4)
G09975806Courtesy of MERCEDES-BENZ USA

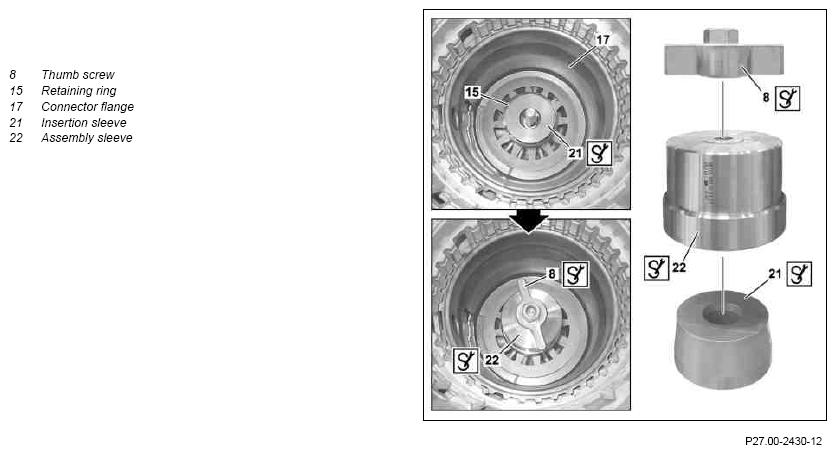

Fig 4: Multidisk Brake B05 And B06 Components (4 Of 4)
G09975807Courtesy of MERCEDES-BENZ USA
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Detach transmission housing (1) from torque converter housing   AR27.50-P-0601EWM
NOTES Cleanliness is essential when working on the transmission.
Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission.
IMPORTANT For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.
2 Mount transmission housing (1) onto assembly device (2) SPECIAL TOOL Assembly tool Fig 5
  Multidisk brake B05
3 Remove retaining ring (3)
4 Remove clutch pack B05 (4)
5 Mount threaded rod (6), pressure plate (7) and thumb screw (8) SPECIAL TOOL Assembly tool Fig 5
6 Tighten thumb screw (8) and remove L-section ring (9) IMPORTANTSPECIAL TOOL Tighten thumb screw (8) far enough until L-section ring (9) is exposed.
SPECIAL TOOL Assembly tool Fig 5
7 Remove disk spring (10) INSTALLATION IMPORTANT Pay attention to installation position.
8 Remove piston (12)
9 Remove piston ring (11) from piston (12) IMPORTANT Check piston ring (11) for damage and replace, if necessary.
  Multidisk brake B06
10 Remove retaining ring (13)
11 Remove clutch pack B06 (5)
12 Detach threaded rod (6) and mount thrust ring (14) with thumb screw (8) INSTALLATION IMPORTANT The cutout of the thrust ring (14) must line up with the cutout of the retaining ring (15).
SPECIAL TOOL Assembly tool Fig 5
13 Tighten thumb screw (8) and remove retaining ring (15) IMPORTANTSPECIAL TOOL Tighten thumb screw (8) far enough until retaining ring (15) is exposed.
SPECIAL TOOL Pliers Fig 6
SPECIAL TOOL Assembly tool Fig 5
14 Remove disk spring (16) INSTALLATION IMPORTANT Pay attention to installation position.
15 Remove coupling flange (17) IMPORTANT Check coupling flange (17) for damage and replace, if necessary.
16 Apply some compressed air through the center hole on the transmission housing (1) and remove piston (18) IMPORTANT Seal the other holes while doing so.
IMPORTANT Wear safety glasses while doing so.
INSTALLING Install
  Multidisk brake B06
17 Insert piston (18) IMPORTANT Replace sealing rings (19, 20). Apply light coating of oil to new sealing rings (19, 20).
18 Insert coupling flange (17) into transmission housing (1) IMPORTANT Install components in correct positions. The lugs or cutouts must face forwards.
19 Insert disk spring (16) into transmission housing (1) IMPORTANT Install components in correct positions.
20 Insert assembly sleeve (21) and place retaining ring (15) around assembly sleeve (21) SPECIAL TOOL Assembly tool Fig 5
21 Mount assembly sleeve (22) onto assembly sleeve (21) SPECIAL TOOL Assembly tool Fig 5
22 Tighten thumb screw (8) through assembly sleeve (22) until retaining ring (15) latches into place IMPORTANT Check for correct seating and installation position. The cutout must face forward.
SPECIAL TOOL Assembly tool Fig 5
23 Detach thumb screw (8), assembly sleeve (21) and assembly sleeve (22) SPECIAL TOOL Assembly tool Fig 5
MEASURING Measure
24 Measure and adjust clearance
25 Insert clutch pack B06 (5) into transmission housing (1) INSTALLATION IMPORTANT Make sure that it is installed at the correct position. The lugs (arrows) must always face forwards.
26 Insert retaining ring (13) into transmission housing (1)
  Multidisk brake B05
27 Insert piston ring (11) into piston (12)
28 Insert piston (12) into transmission housing (1) INSTALLATION IMPORTANT Make sure that it is installed at the correct position. The hole on the piston (12) must line up with the hole on the transmission housing (1).
29 Insert disk spring (10) into transmission housing (1) INSTALLATION IMPORTANT Pay attention to installation position.
30 Mount threaded rod (6), pressure plate (7) and thumb screw (8) SPECIAL TOOL Assembly tool Fig 5
31 Insert L-section ring (9) into transmission housing (1) IMPORTANTSPECIAL TOOL Tighten thumb screw (8) far enough until L-section ring (9) can be correctly inserted.
IMPORTANT Ensure correct seating.
SPECIAL TOOL Assembly tool Fig 5
MEASURING Measure
32 Measure and adjust clearance
33 Detach threaded rod (6), pressure plate (7) and thumb screw (8) SPECIAL TOOL Assembly tool Fig 5
34 Insert clutch pack B05 (4) INSTALLATION IMPORTANT Make sure that it is installed at the correct position. The lugs (arrows) must always face forwards.
35 Install retaining ring (3)
36 Remove transmission housing (1) from assembly device (2) SPECIAL TOOL Assembly tool Fig 5
37 Install transmission housing at torque converter housing   AR27.50-P-0601EWM
Fig 5: Identifying Assembly Tool (725 589 00 63 00)
G09975808Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Pliers (000 589 52 37 00)
G09975809Courtesy of MERCEDES-BENZ USA
