Remove/install multidisk clutch K27 with output shaft and parking lock gear - AR27.50-P-0614EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

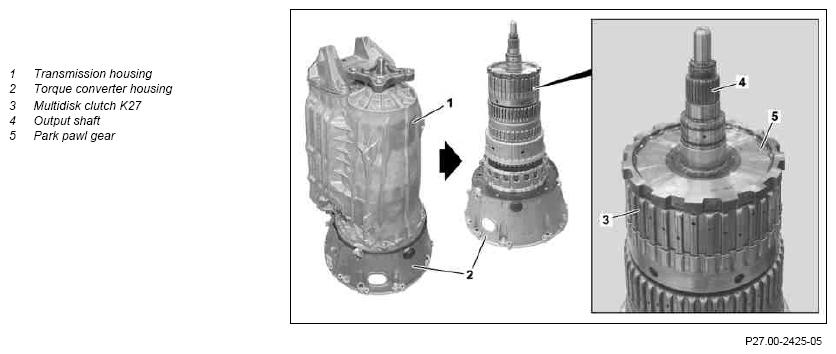

Fig 1: Multidisk Clutch K27 With Output Shaft And Parking Lock Gear Components

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Detach transmission housing (1) from torque converter housing (2)	Cleanliness is essential when working on the transmission. Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission.
1		For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.	AR27.50-P-0601EWM
2	Remove multidisk clutch K27 (3) with output shaft (4) and park pawl gear (5)	Ensure correct seating. According to condition: ↓ Disassemble/assemble multidisk clutch K27 (3)
2			AR27.50-P-0619EWM
3	Install in the reverse order
