Remove/install rear-wheel drive module - AR01.00-P-3060MEX

ENGINE 780.993 in MODEL 451.390/392/490/492

MODIFICATION NOTES

28.9.15 Screw, high voltage plug to high voltage battery Model 451.390/392/490/492 except Code 908 (Wheel loader 22kW) BA54.10-P-1006-01H
28.9.15 Screw, high voltage plug to high voltage battery Model 451.390/392/490/492 with Code 908 (Wheel loader 22kW) BA54.10-P-1006-01H

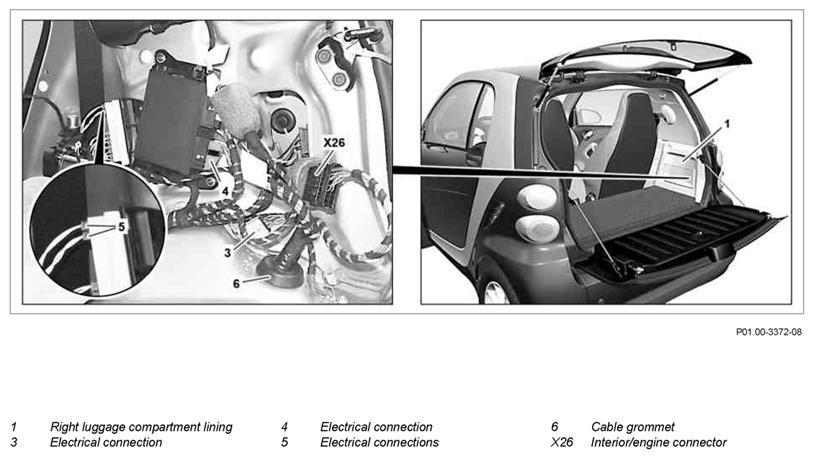

Fig 1: Identifying Rear-Wheel Drive Module Remove/Install Components (1 Of 5)
G10978001Courtesy of MERCEDES-BENZ USA

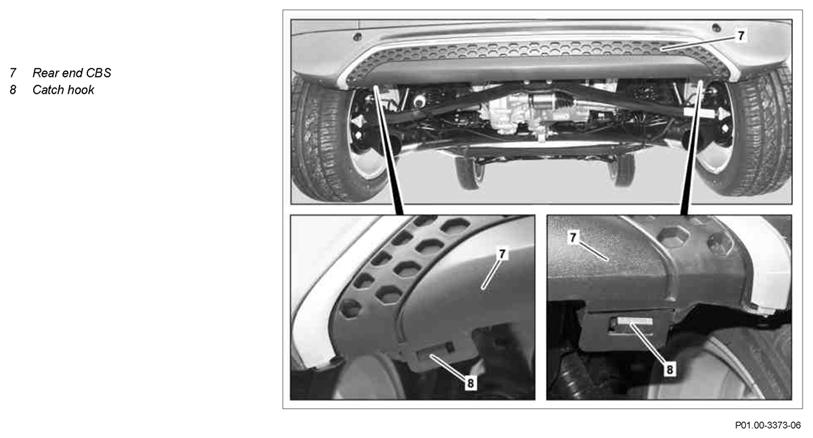

Fig 2: Identifying Rear-Wheel Drive Module Remove/Install Components (2 Of 5)
G10978002Courtesy of MERCEDES-BENZ USA

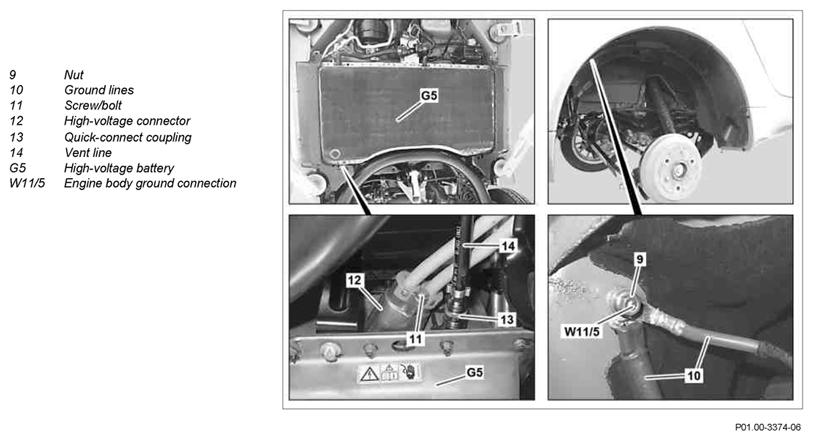

Fig 3: Identifying Rear-Wheel Drive Module Remove/Install Components (3 Of 5)
G10978003Courtesy of MERCEDES-BENZ USA

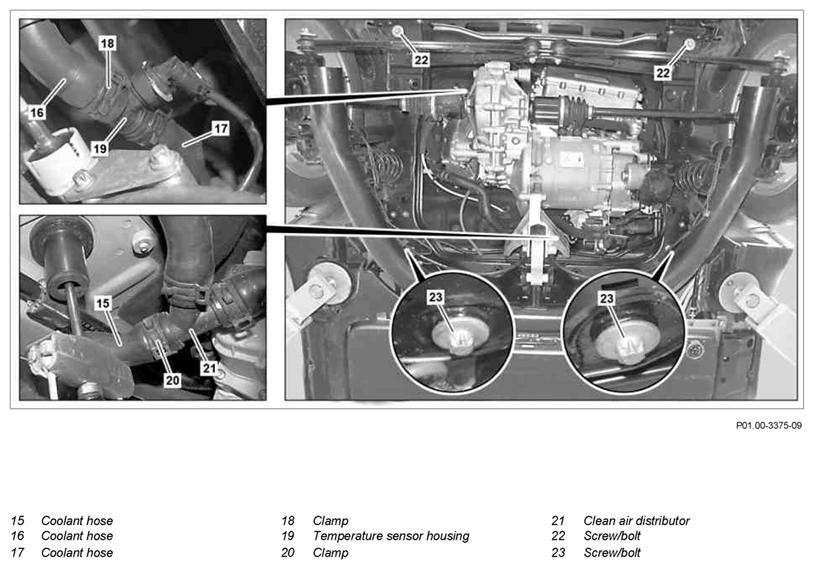

Fig 4: Identifying Rear-Wheel Drive Module Remove/Install Components (4 Of 5)
G10978004Courtesy of MERCEDES-BENZ USA

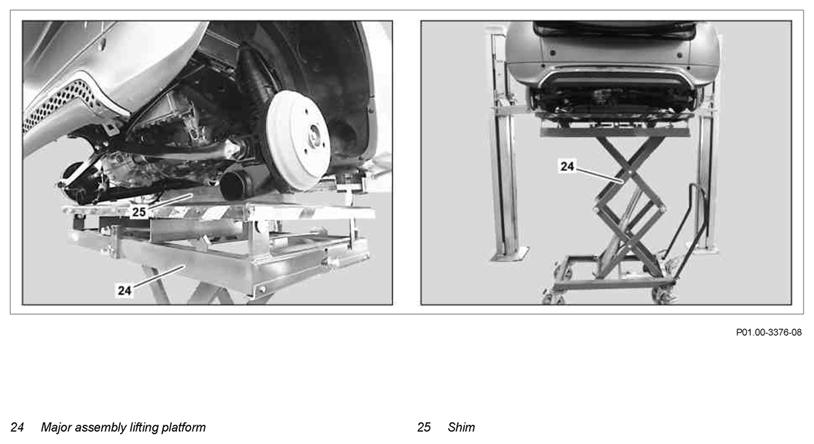

Fig 5: Identifying Rear-Wheel Drive Module Remove/Install Components (5 Of 5)
G10978005DANGERDANGERDANGERNOTESNOTESNOTESNOTESREMOVINGINSTALLINGREFER TO SELF-DIAGNOSTIC SYSTEMSIMPORTANTINSTALLATION IMPORTANTIMPORTANTIMPORTANTIMPORTANTTORQUE SPECIFICATIONNOTESIMPORTANTNOTESSPECIAL TOOLNOTESIMPORTANTNOTESSPECIAL TOOLIMPORTANTIMPORTANTIMPORTANTINSTALLATION IMPORTANTSPECIAL TOOLSPECIAL TOOLIMPORTANTINSTALLATION IMPORTANTREFER TO SPECIAL TOOLSIMPORTANTIMPORTANTTORQUE SPECIFICATIONREFER TO SPECIAL TOOLSNOTESIMPORTANTINSTALLATION IMPORTANTIMPORTANTREFER TO SELF-DIAGNOSTIC SYSTEMSSPECIAL TOOLSPECIAL TOOLIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Notes on coolant   AH20.00-N-2080-01A
NOTES Note on high-voltage battery   AH54.10-P-0006-01MEV
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Connect Star Diagnosis and enable high voltage on-board electrical system   AD00.00-P-2000-04MCC
REFER TO SELF-DIAGNOSTIC SYSTEMS   IMPORTANT Print out power disable event log and add to the vehicle file.
INSTALLATION IMPORTANT : Put high voltage on-board electrical system into operation.

2 Remove right luggage compartment lining (1)   AR68.30-P-4800MEV
3 Remove interior flap above engine   AR88.40-P-1100-03MCC
4 Release and disconnect electrical connections (3, 4 and 5)
5 Unlock and disconnect electrical connection of interior engine (X26)
6 Push out cable boot (6) in the direction engine compartment
7 Pull through wiring harness in the direction engine compartment
8 Remove refrigerant lines on A/C compressor in engine compartment and place to one side IMPORTANT Disconnect refrigerant pressure line at connecting point in engine compartment. AR83.30-P-7810MEX
9 Remove lines for charger feed socket in engine compartment and place to one side   AR54.10-P-5109MEX
10 Remove high-voltage distributor electrical line at PTC HB in engine compartment and place to one side   AR54.10-P-1402MEV
11 Remove electric motor charging cable to 12 Volt battery in engine compartment and place to one side   AR54.10-P-5107MEX
12 Remove wire for selector lever lock in engine compartment and place to one side   AR26.60-P-1000MEX
13 Remove fender liner in fender   AR88.10-P-1400MCC
14 Disconnect brake booster vacuum line from vacuum pump   AR43.10-P-0355MEX
15 Raise vehicle with vehicle lift
16 Remove underfloor paneling IMPORTANT Commercially available devices: cordless drill/driver, cordless drilling machine
17 Secure vehicle on vehicle lift   AR00.60-P-0100MCC
18 Lower vehicle with vehicle lift
19 Unhook CBS rear end (7) at the catch hook (8)
20 Unscrew nut (9) from engine-body ground connection (W11/5) and remove ground lines (10)
21 Raise vehicle with vehicle lift
22 Remove screw/bolt (11) and disconnect high voltage connector (12) from the high-voltage battery (G5) IMPORTANT Screw/bolt (11) serves as the removal and pulling in device and is integrated in the high-voltage connector.
TORQUE SPECIFICATION Screw/bolt, high-voltage connector to high-voltage battery
*BA54.10-P-1006-01H
23 Pull protective cover over the connector for the high voltage connector (12) on the high-voltage battery (G5) NOTES
Protect the connection for the high voltage connector (12) on the high-voltage battery (G5) against dirt and moisture.
Otherwise, consequential damage may occur on the high voltage on-board electrical system.
IMPORTANT Protective cover must be ordered separately.

24 Pull protective cover over high-voltage connector (12) NOTES Protect the high-voltage connector (12) against dirt and moisture.
Otherwise, consequential damage may occur on the on-board high voltage electrical system.
SPECIAL TOOL Set of protective caps
Fig 7
25 Disconnect quick-connect coupling (13) and remove vent line (14) from the high-voltage battery (G5)
26 Pull protective cover over the connection for the vent line (14) on the high-voltage battery (G5) NOTES Protect the connection for the vent line (14) on the high-voltage battery (G5) against dirt and moisture.
Otherwise, consequential damage may occur on the high voltage on-board electrical system.
IMPORTANT Protective cover must be ordered separately.

27 Pull protective cover over the quick-connect coupling (13) on the vent line (14) NOTES Protect the vent line (14) against dirt and moisture.
Otherwise, consequential damage may occur on the high voltage on-board electrical system.
SPECIAL TOOL Set of protective caps
Fig 7
28 Remove rear axle rpm sensor IMPORTANT Remove rear axle rpm sensor up to the electrical connection at the rear left. AR42.30-P-0714MCC
29 Remove brake hoses on rear axle IMPORTANT Remove brake hoses only on axle tube. AR42.10-P-0023MCC
30 Clamp off coolant hoses (16, 17) on the temperature sensor housing (19) with clamps Clamp Fig 6
31 Release clamp (18) with hose clamp pliers and push to the rear on the coolant hose (16) Hose clamp pliers Fig 10
32 Detach coolant hose (16) from the temperature sensor housing (19) IMPORTANT Collect escaping coolant in a suitable container and seal the temperature sensor housing (19) using suitable stop plugs.
INSTALLATION IMPORTANT : Check clamp (18) and coolant hose (16) for damage; replace if necessary.

33 Clamp off coolant hose (15) on clean air distributor (21) with clamp SPECIAL TOOL Clamp Fig 6
34 Release clamp (20) with hose clamp pliers and push to the rear on the coolant hose (15) SPECIAL TOOL Hose clamp pliers Fig 10
35 Detach coolant hose (15) from clean air distributor (21) IMPORTANT Collect escaping coolant in a suitable container and seal the clean air distributor (21) using suitable stop plugs.
INSTALLATION IMPORTANT : Check clamp (20) and coolant hose (15) for damage; replace if necessary.

36 Position major assembly lifting platform (24) and up to the end stop on the rear ends of the axle tube
REFER TO SPECIAL TOOLS 000 588 03 62 00 Lifting platform IMPORTANT The major assembly lifting platform (24) must be positioned in such a way that the screw/bolts (22, 23) remain accessible. WS01.00-P-0091A
37 Attach a suitable base (25) in the front area of the axle tube IMPORTANT The base (25) must be selected in such a way that the axle tube fully lies in the front area.
38 Remove screw/bolts (22, 23) TORQUE SPECIFICATION Screw/bolt, integral carrier to body *BA35.10-P-1001-01F
39 Lower rear drive module carefully   AR42.20-P-0570MEX
REFER TO SPECIAL TOOLS 000 588 03 62 00 Lifting platform NOTES Ensure that no lines and hose are pinched and that sufficient clearance exists to the components remaining in the vehicle.
Damage can occur otherwise to lines, hoses and to components remaining in the vehicle.
IMPORTANT The parking brake must be released completely to release the pull rod of the parking brake.
INSTALLATION IMPORTANT : Introduce pull rod for the parking brake in the pilot bushing and press on seal.
IMPORTANT Helper required.
WS01.00-P-0091A
40 Install in the reverse order
41 Bleed cooling system with Star Diagnosis
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04MCC
AR20.00-P-1142-06MEX
    SPECIAL TOOL Filling device Fig 8
    SPECIAL TOOL Pressure pump Fig 9
42 Check cooling system for leaktightness   AR20.00-P-1010MCC
43 Check function of the parking brake
44 Perform wheel alignment check Engine 780.993 in model AR40.20-P-0200MCC
    451.390/392/490/492 without recording the vehicle level
Engine 780.993 in model
451.390/392/490/492 with recording the vehicle level
IMPORTANT Depending on the workshop equipment select between the measurement variant with recording the vehicle level or without recording the vehicle level.
AR40.20-P-0200MCE
REAR AXLE CARRIER

Number Designation Model 451.3/4
BA35.10-P-1001-01F Screw/bolt, integral carrier to body Nm 125
BATTERY

Number Designation Model 451.390/392/490/492 except code 908 (Wheel loader 22kW) Model 451.390/392/490/49 2 with code 908 (Wheel loader 22kW)
BA54.10-P-1006-01H Screw/bolt, high-voltage connector to high-voltage battery Nm 5, 5 5, 5
Fig 6: Identifying Clamp (000 589 54 37 00)
G09973558Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Set Of Protective Caps (001 589 02 91 00)
G10978007Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Filling Device (450 589 20 63 00)
G10978008Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Pressure Pump (450 589 07 21 00)
G10978009Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Hose Clamp Pliers (003 589 03 37 00)
G10978010Courtesy of MERCEDES-BENZ USA
