Remove/install cable for parking shift lock - AR26.60-P-1000MEX
MODEL 451.390/392/490/492 with ENGINE 780.993
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on the voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

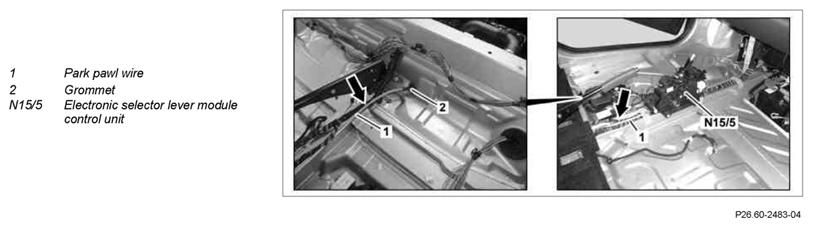

| 1 | Remove electronic selector lever module control unit (N15/5) | AR26.60-P-0630MCU | |
| 2 | Remove cable tie from park pawl wire (1) | ||
| 3 | Press grommet (2) out of body toward engine compartment | ||
| 4 | Remove interior flap above engine | AR88.40-P-1100-03MCC | |
| 5 | Unscrew bolt (6) from cover panel (7) and remove cover panel (7) | Only if installed. | |
6 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Raise vehicle with vehicle lift |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |

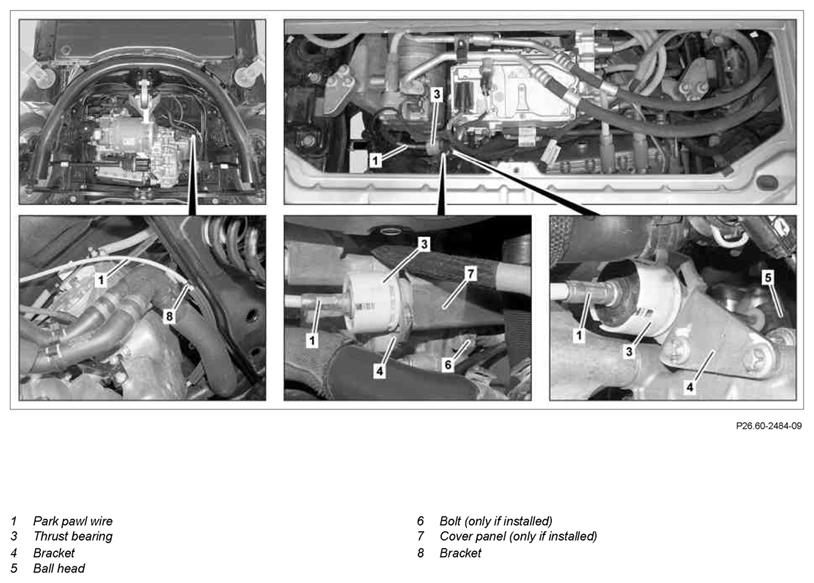

| 7 | Unclip park pawl wire (1) from bracket (8) | ||
| 8 | Pry ball head (5) of park pawl wire (1) off relay lever on transmission | ||
| 9 | Detach thrust bearing (3) of park pawl wire (1) from bracket (4) | ||
| 10 | Remove park pawl wire (1) | ||
| 11 | Install in the reverse order |
